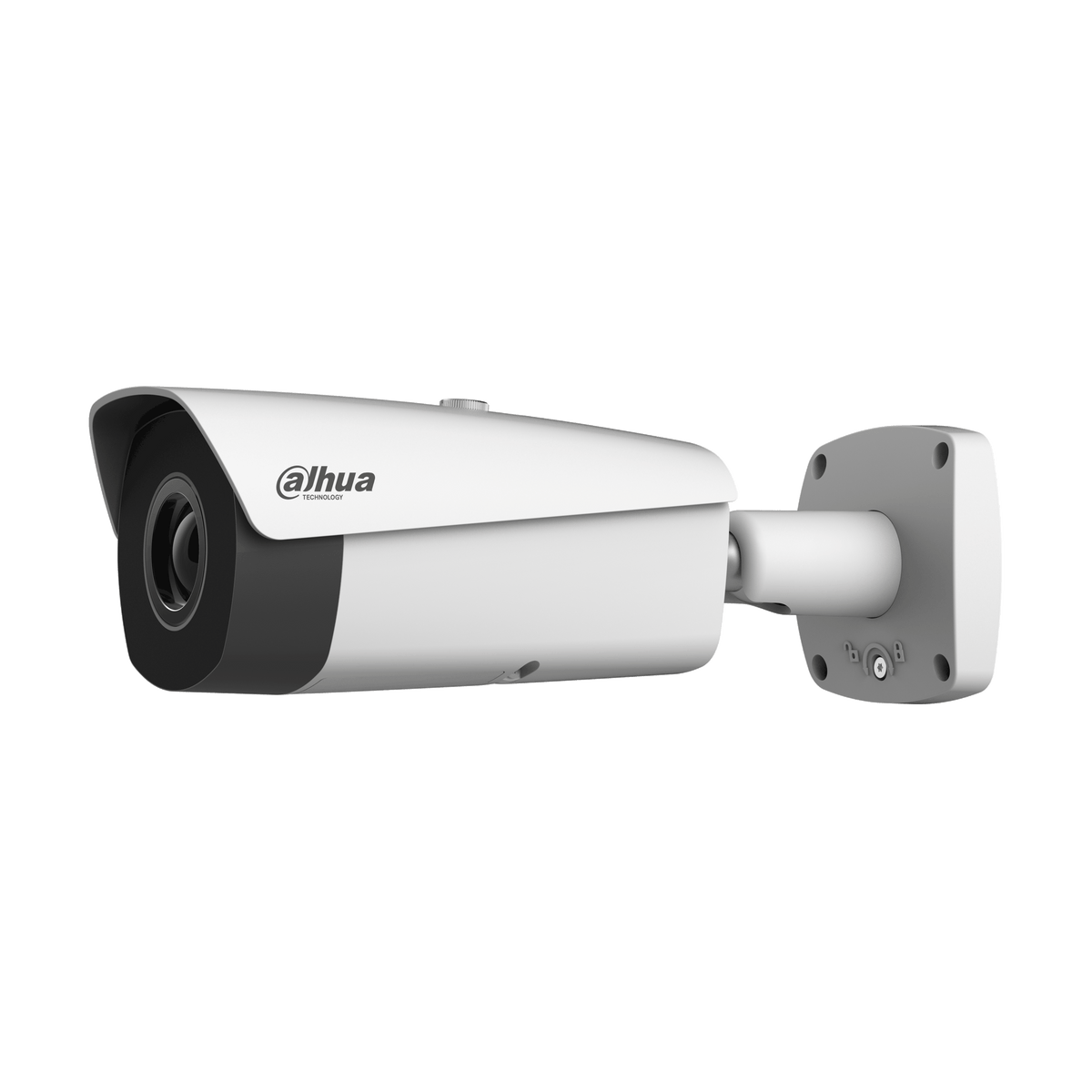

Dahua TPC-BF5401-T-S2 400x300 Thermal Network Bullet Camera

In stock
SKU: TPC-BF5401-T-S2
$3,421.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

TPC-BF5401-T-S2

Thermal Network Bullet Camera

> 400x300 VOx uncooled thermal sensor technology

> Athermalized Lens (thermal), Focus-free

> Support temperature measurement

> Various lens optional (7.5/13/25/35mm)

> 2/2 alarm in/out

> Micro SD memory, IP67, PoE, ePoE


Product Data

Thermal Camera

Image Sensor

Vanadium Oxide Uncooled Focal Plane Detector

Effective Pixels

400(H)x300(V)

Pixel Size

17μm

Thermal Sensitivity(NETD)

≤ 40mK@f/1.0

Spectral Range

8μm–14μm

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

18(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Fixed/F1.0

Focus Control

Athermalized, Focus-free

Focal Length

7.5mm

13mm

25mm

35mm

Angle of View

H: 53.7°

V: 39.7°

H: 30.2°

V: 22.6°

H: 15.5°

V: 11.6°

H: 11.1°

V: 8.3°

Effective Distance①

Man(1.8m*0.5m)

D②: 221m

R③: 57m

I ④: 28m

D: 382m

R: 98m

I: 49m

D: 735m

R: 189m

I: 95m

D: 1030m

R: 265m

I: 132m

Effective Distance

Vehicle(4m*1.4m)

D: 490m

R: 126m

I:63m

D: 850m

R: 219m

I: 109m

D: 1634m

R: 420m

I: 210m

D: 2288m

R: 588m

I: 294m

Temperature Measurement

Temperature Range

Low Temperature Mode: -20°C to +150°C (-4°F to

+302°F)

High Temperature Mode: 0°C to +550°C (+34°F to

+1022°F)

Focus Control

Max (±2°C, ±2%)

Operating Temperature: -20°C to +60°C (-4°F to

+140°F)

Focus Control

Spot: 12

Line: 12

Area: 12

Support 12 rules simultaneously

Compression

H.265 / H.264 / MJPEG

Frame Rate

Main Stream:

Thermal: 1280x1024 / 720P / 400x300 @25/30fps

Sub Stream:

Thermal: 640x512 / 400x300 @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 640 ~ 8192Kbps

Motion Detection

Off/On (4 zone, Rectangle)

Region of Interest

Off/On (4 zone)

Electronic Image Stabilization

(EIS)

NA

Digital Zoom

4x(19 levels)

Flip

180°

Mirror

Off/On

Privacy Masking

Off/On (4 area, Rectangle)

Audio

Compression

G.711A / G.711Mu / AAC / PCM

Intelligence

IVS

Tripwire, Intrusion

Advanced Intelligent Functions

Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification

Network

Ethernet

RJ-45

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Interoperability

ONVIF Profile S & G, API

Streaming Method

Unicast/Multicast

Max. User Access

10 Users/20 Users

Edge Storage

Micro SD (256GB)

Memory status display (Normal / Error / Active / Formatting / Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

>IE8,

Management Software

SmartPSS, DSS

Smart Phone

Android, iOS

Certifications

Certification

CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB )

Interface

Video Interface

1 Port (CVBS/BNC)

Audio Interface

1/1 In/Out

RS485

Support

Alarm

2/2 In/Out

Electrical

Power Supply

DC 12V/PoE/ePoE

Power Consumption

Max. 13W

Environmental

Operating Condition

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

291mm× 103mm× 97mm (11.46" x 4.06" x 3.82")

Net Weight

1.5Kg (3.31 lb)

Gross Weight

1.9Kg (4.19 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Radiometric perimeter and construction-site monitoring where temperature alarms and clear thermal imaging are needed day or night.

Before you orderConfirm the required focal length (7.5/13/25/35mm) and current lead time with ICCTVZONE before placing your order.
01
Thermal Detection Core

A 400x300 VOx uncooled detector with ≤40mK sensitivity helps reveal heat signatures in low-light and obstructed scenes.

02
Temperature Measurement

Spot, line and area rules with up to 12 simultaneous rules support early warning when temperatures cross your set thresholds.

03
Flexible Lens Options

Choose from 7.5/13/25/35mm athermalized, focus-free lenses to match short-range or long-range coverage needs.
