DAHUA SG4010-2F 10-Port Managed Desktop Gigabit Switch
DAHUA SG4010-2F 10-Port Managed Desktop Gigabit Switch
icctvzone

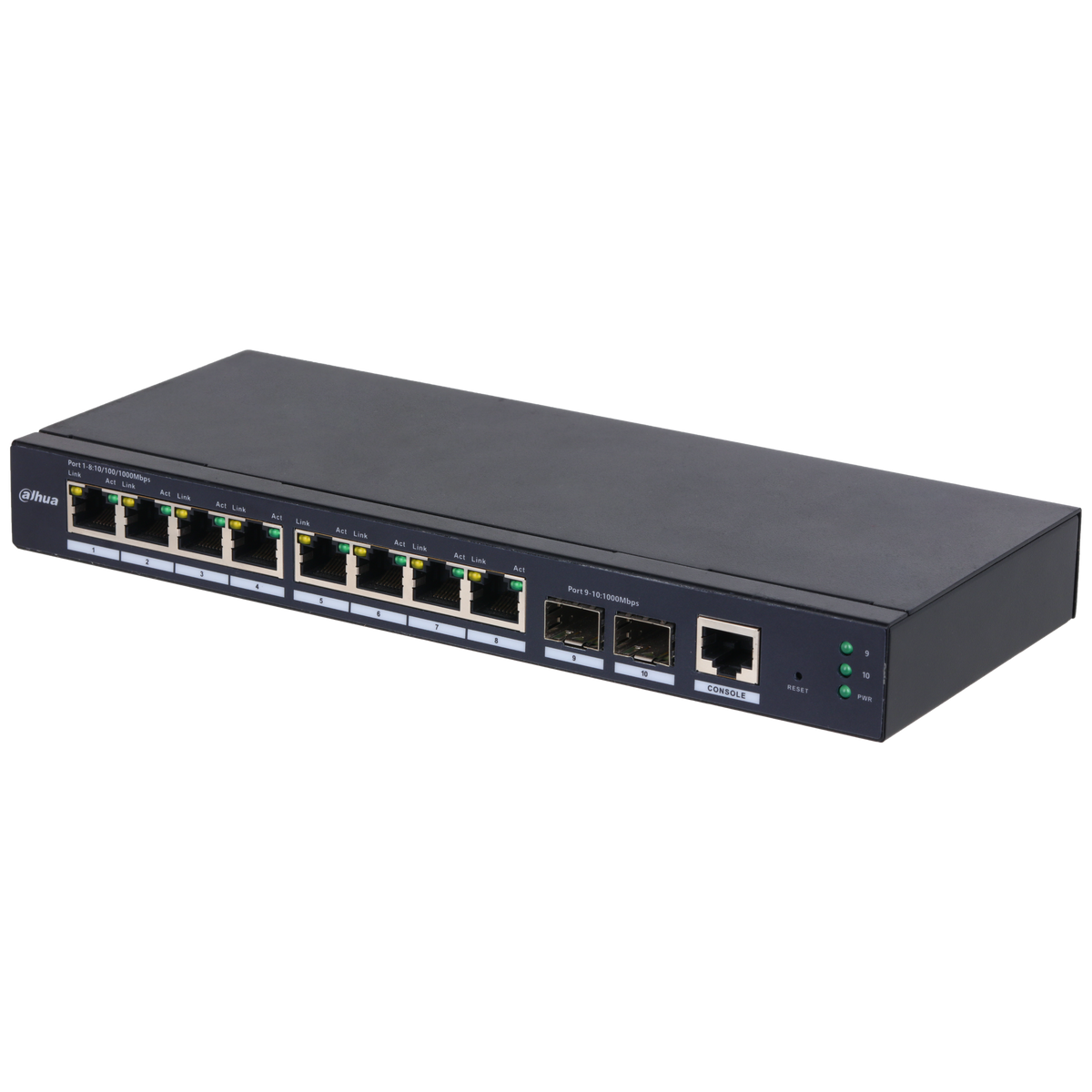

Dahua SG4010-2F 10-Port Managed Gigabit Desktop Switch

In stock
SKU: SG4010-2F
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

SG4010-2F new-products

> Layer 2 network management switch.

> Network redundancy: STP/RSTP.

> Static link aggregation and LACP.

> Devices discovery based on LLDP.

> QoS (IEEE802.1p/1Q) to increase determinism.

> IGMP Snooping.

> Fanless design.

> EMC high protection design.

> Desktop and wall-mounted installation.


Hardware

Included Power Adapter

Yes

Ethernet Port

8

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Speed

1 Gbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-8: 8 × 10/100/1000Base-T
Port 9-10: 2 × 1000Base-X (Uplink)

Debugging

1 × Console port

Reset Button

1

Power Supply

12 VDC,1A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling load: 3.5 W
Full load: 12 W

Performance

Layer

Layer 2

Management Type

Yes

MTBF

2322286.99 hours

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

Packet Buffer Size

4.1 Mbit

Jumbo Frame

9K Byte

MAC Table Size

8K

VLAN Number

4K

VLAN Interface

10

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad

Feature

Spanning Tree Protocol

STP/RSTP

VLAN Function

Yes

Link Aggregation

Static link aggregation; LACP

IEEE 802.3x Flow Control

IEEE 802.3X-based flow control (full-duplex)

Multicast

IGMP Snooping v1/v2

DHCP Function

DHCP client

Security

802.1X

QoS/ACL

QoS

Equipment Management

WEB(http and https)
SNMP V1/V2C/V3

Multicast

IGMP Snooping V1/V2

DHCP Function

DHCP client

Security

802.1X

QoS/ACL

QoS

Equipment Management

WEB(http and https)
SNMP V1/V2C/V3

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.64 kg (1.41 lb)

Gross Weight

1.04 kg (2.29 lb)

Product Dimensions

240 mm × 104 mm × 28 mm (9.45" × 4.12" × 1.10") (L × W × H)

Packaging Dimensions

316 mm × 240 mm × 82 mm(12.44" × 9.45" × 3.23") (L × W × H)

Casing Material

SGCC

Installation

Desktop mount; wall mount

Certifications

CE

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Small to mid-size surveillance networks that need a managed Layer 2 gigabit switch with two fiber uplinks on a desk or wall.

Before you orderConfirm your SFP module type and count for the two 1000Base-X uplinks, and check current lead time with ICCTVZONE before ordering.
01
Managed Layer 2 Control

Layer 2 management with VLAN, QoS and 802.1X gives you structured control over camera traffic instead of an unmanaged free-for-all.

02
Fiber Uplink Ready

Eight gigabit copper ports plus two 1000Base-X uplinks let you extend the network over fiber to distant switches or a core point.

03
Quiet Fanless Build

A fanless design with EMC protection keeps the unit silent and suited to office, retail or cabinet installs at -10 to +55 °C.
