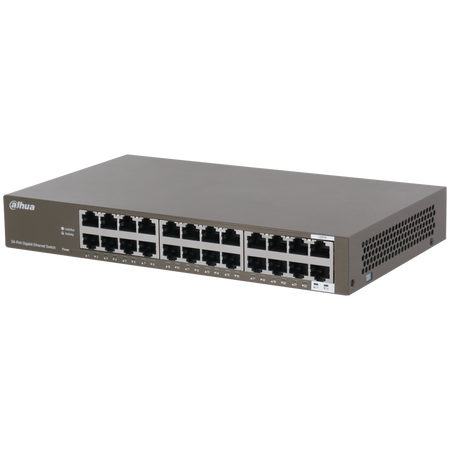

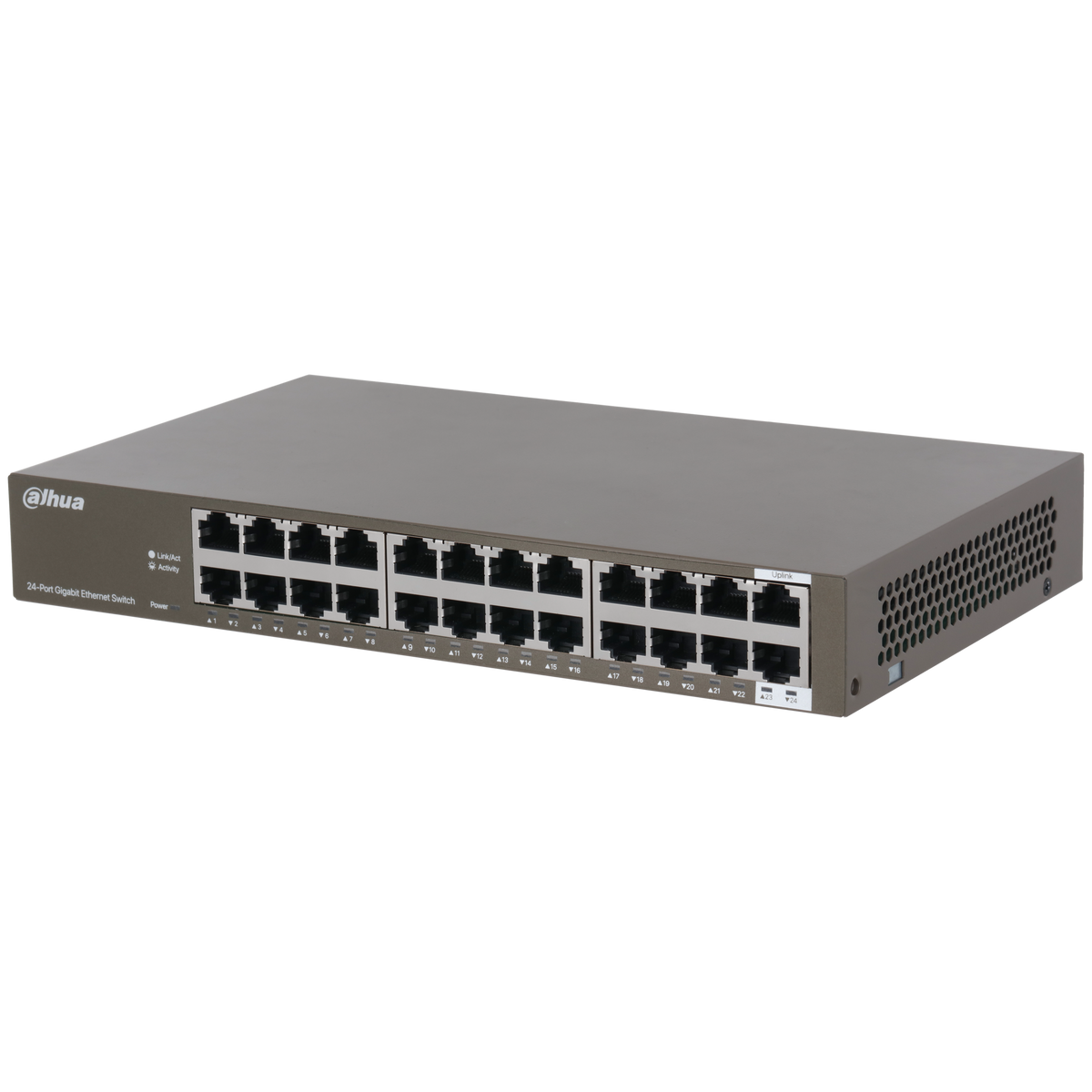

Dahua SG1024M 24-Port Gigabit Desktop Switch
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
SG1024M
24-Port Gigabit Desktop Switch
> Plug and play: Just power-on and enjoy your device. No configuration required. It is suitable for forwarding scenarios.
> Fanless design: A fanless design is used to effectively reduce noise and create a quiet, serene environment. Its design also reduces mechanical loss to a certain extent and increases service life.
> Flexible installation: Supports multiple installation methods such as desktop mount and wall mount. Suitable for various installation scenarios.
|
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Included Power Adapter |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
22 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Speed |
10/100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Uplink Speed |
10/100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Description of Function Slots |
Port 1-22:22 × RJ-45 10/100/1000 Mbps Port 23-24:2 × RJ-45 10/100/1000 Mbps(Uplink) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
External power supply: 12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +85 °C (–40 °F to +185 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Layer |
Layer 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Type |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Managed Switch |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MTBF |
5.7 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
48 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
35.7 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Size |
2 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Jumbo Frame |
10K Byte |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
8K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Statics Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lighting Protection |
Common mode: 2 kV Differential mode: 1 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
1.2 kg (2.65 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
1.3 kg (2.67 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
247 mm × 150 mm × 37 mm (9.72" × 5.91" × 1.46") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
505 mm × 310 mm × 345 mm (19.88" × 12.20" × 13.58") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Small to mid-size surveillance networks that need a plug-and-play 24-port gigabit switch for camera and uplink traffic.
All ports can run at their highest speed simultaneously, so busy camera streams forward without bottlenecking your network.
A fanless design keeps noise low and reduces mechanical wear, making it easier to live with in shared or quiet spaces.
Supports desktop or wall installation, so you can place it in a rack room, cabinet or equipment closet to suit the site.
