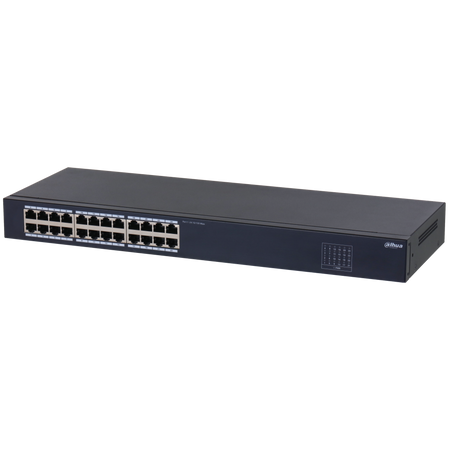

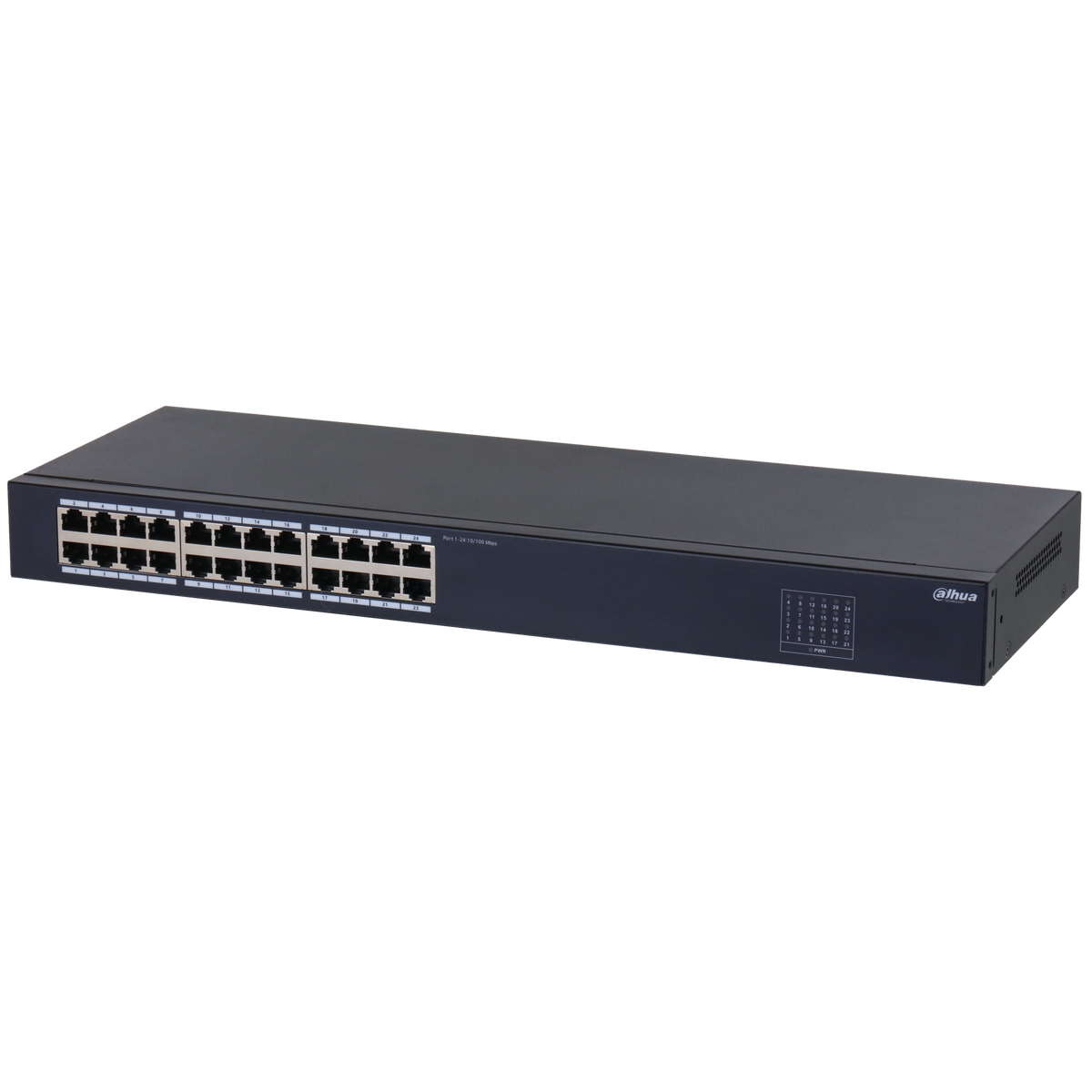

Dahua SF1024 24-Port 10/100Mbps Unmanaged Ethernet Switch
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
SF1024
24-Port Unmanaged Ethernet Switch
> Complies with IEEE802.3, IEEE802.3u and IEEE802.3X standards.
> Supports MAC learning and aging and MAC address list capacity is 8K.
> Wide operating temperature from -20¡ãC to +60¡ãC.
> Metal housing with great heat dissipation.
> Easy to install, and plug and play.
|
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Included Power Adapter |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
24 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Speed |
10/100 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Description of Function Slots |
Port 1-24: 24 × RJ-45 10/100 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
Built-in power supply: 100–240 VAC, 50/60 Hz, max 0.7 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +75 °C (–40 °F to +167 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Idling: 0.7 W Full load: 2.3 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Layer |
Layer 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
4.8 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
3.57 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Size |
4 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Jumbo Frame |
2048 Byte |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
8K Byte |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Standard |
IEEE802.3; IEEE802.3u; IEEE802.3X |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Statics Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lighting Protection |
Common mode: 2 kV Differential mode: 0.5 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
1.64 kg (3.62 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
2.55 kg (5.62 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
440 mm × 155 mm × 43.7 mm (17.32" × 6.10" × 1.72") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
523 mm × 273 mm × 109 mm (20.59" × 10.75" × 4.29") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Iron |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop mount; rack mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for small to mid-size CCTV installations that need simple plug-and-play 24-port 10/100Mbps network distribution.
Connect up to 24 IP cameras or network devices through RJ-45 10/100Mbps ports for straightforward distribution.
Unmanaged Layer 2 operation means no configuration is required, so you can deploy it quickly on site.
Iron casing with wide -20°C to +60°C operating range supports reliable use in demanding environments.
