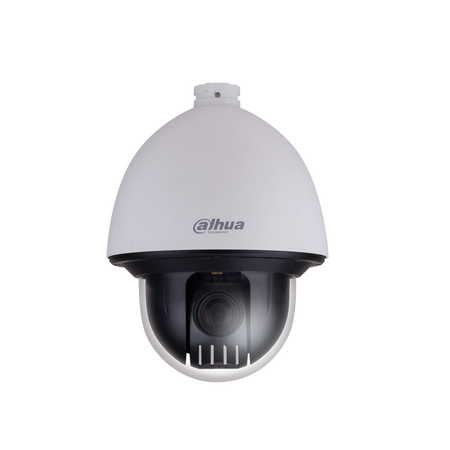

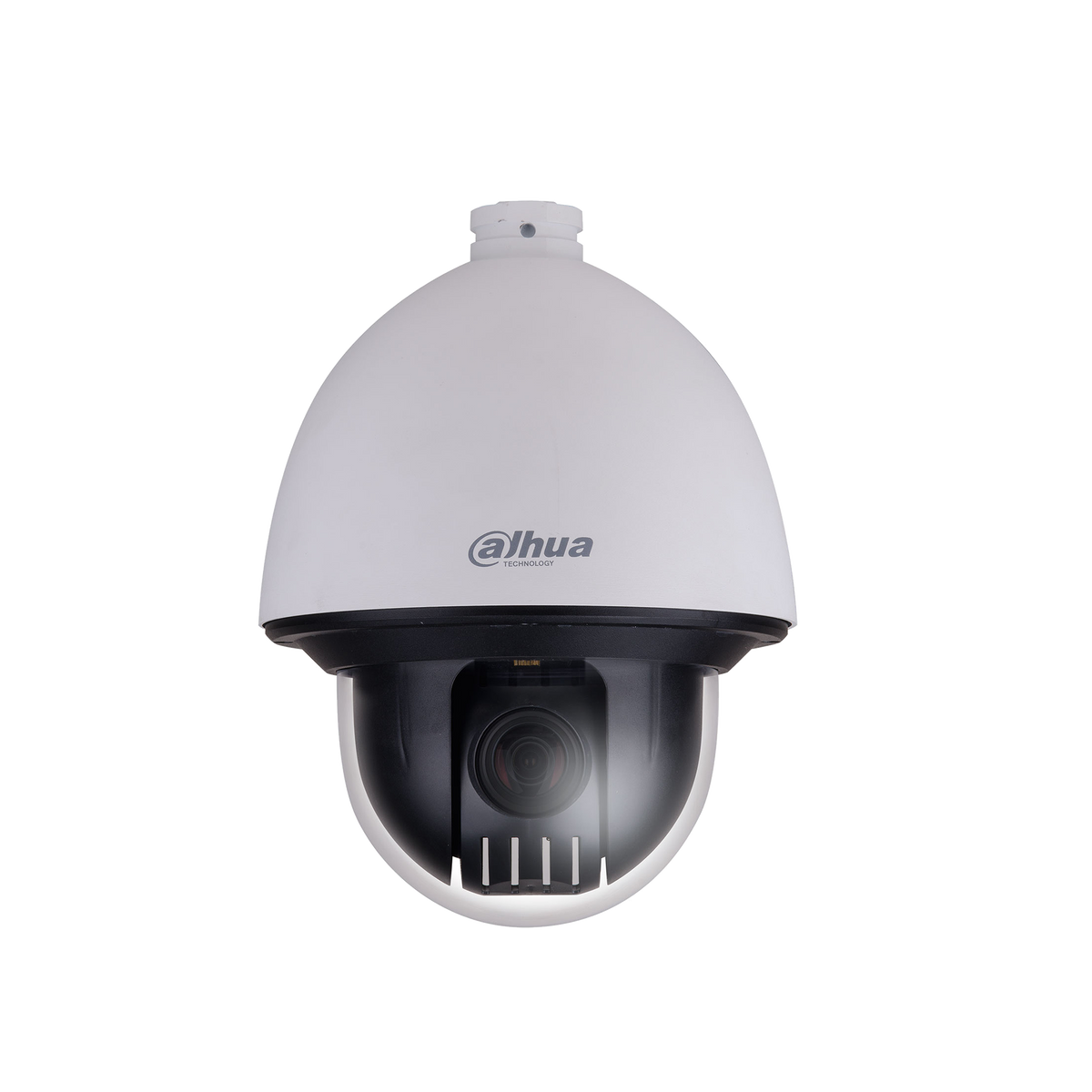

DAHUA SD60430I-HC 4MP 30x PTZ HDCVI Camera
DAHUA SD60430I-HC 4MP 30x PTZ HDCVI Camera
icctvzone

Dahua SD60430I-HC 4MP 30x Zoom PTZ HDCVI Camera

In stock
SKU: SD60430I-HC
$723.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

SD60430I-HC

4MP 30x PTZ HDCVI Camera

> 1/3” 4Megapixel CMOS
> Powerful 30x optical zoom
> 120dB true WDR, 3D DNR
> Max. 25/30fps@4M/1080P, 25/30/50/60fps@720P
> IP67, IK10



Product Data

Camera

Image Sensor

1/3” CMOS

Effective Pixels

2592(H) x 1520(V), 4 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3s~1/30,000s

NTSC: 1/4s~1/30,000s

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

S/N Ratio

More than 55dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Focal Length

4.5mm~135mm

Max. Aperture

F1.6 ~ F4.4

Angle of View

H: 60° ~ 2.2°

Optical Zoom

30x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

2700m(8858ft)

1080m(3543ft)

540m(1772ft)

270m(886ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s

Preset Speed

Pan: 600° /s; Tilt: 500° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Resolution

4M(2592x1520) / 1080P(1920×1080) / 720P(1280×720)

Frame Rate

25/30fps@4M/1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output/ CVBS standard definition video output (switchable)

Day/Night

Auto(ICR) / Color / B/W

OSD Menu

Support

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto,ATW,Indoor,Outdoor,Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

1

Audio Interface

1 channel in

RS485

1

Alarm I/O

2/1

Electrical

Power Supply

AC24V/3A(±25%)

Power Consumption

12W,20W (Heater on)

Environmental

Operating Conditions

-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ222(mm) x 292(mm)

Net Weight

3.5kg(7.72lb)

Gross Weight

7.5kg(16.53lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Long-range outdoor perimeter and open-area surveillance where a 30x optical zoom PTZ on an HDCVI system is required.

Before you orderConfirm your HDCVI recorder and power setup support this PTZ, and check current stock and lead time before ordering.
01
30x Optical Zoom

A 4.5-135mm lens brings distant subjects close without losing detail, so one camera can cover a wide site.

02
True WDR Clarity

120dB true WDR and 3D DNR balance harsh light and shadow for steadier images across changing conditions.

03
Weather-Rated Housing

IP67 and IK10 ratings support reliable outdoor mounting where rain and impact are everyday concerns.
