Home » Dahua SD59225-HC-LA 2MP 25x Starlight IR PTZ HDCVI Camera

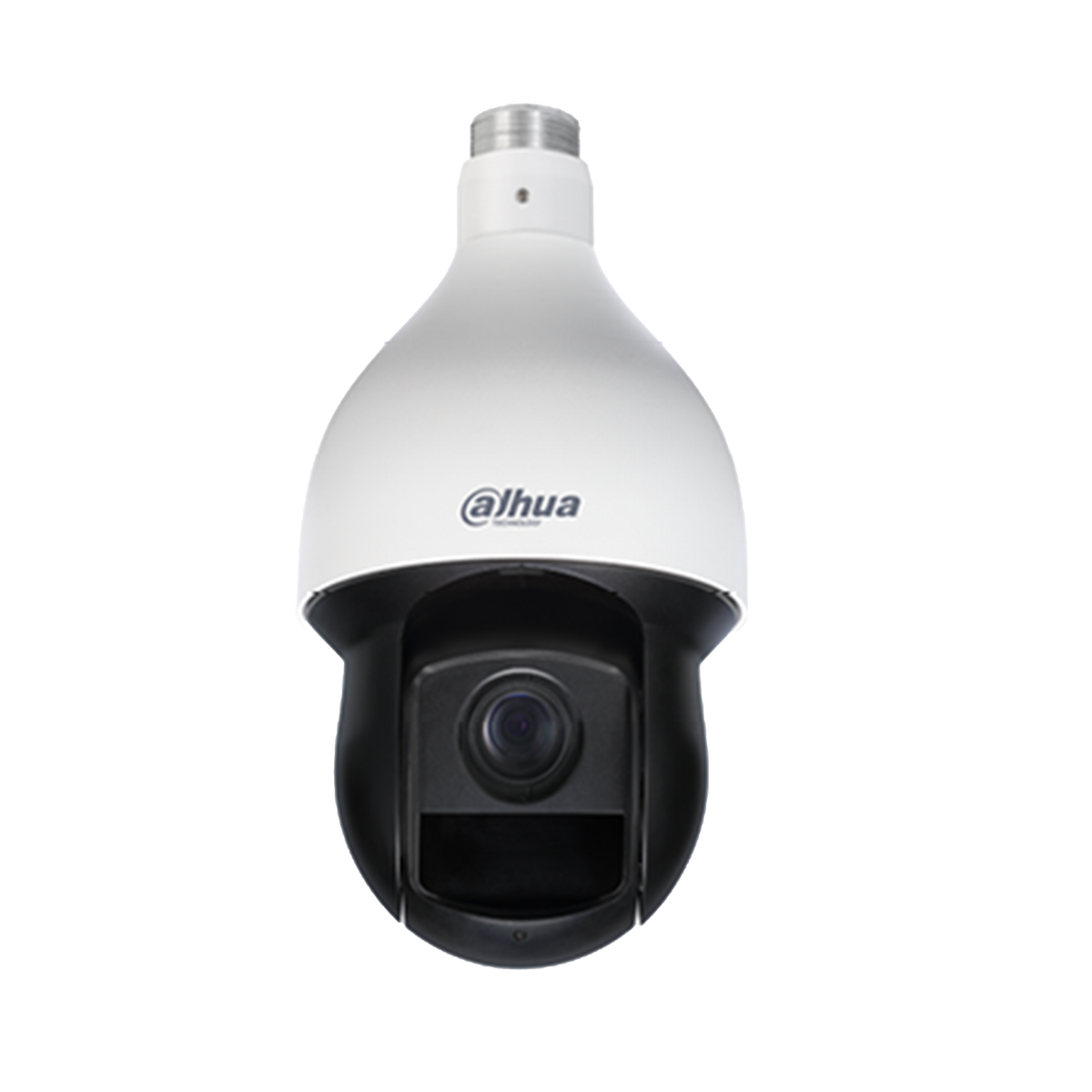

DAHUA SD59225-HC-LA 2MP 25x Starlight IR PTZ HDCVI Camera
DAHUA SD59225-HC-LA 2MP 25x Starlight IR PTZ HDCVI Camera
icctvzone

Dahua SD59225-HC-LA 2MP 25x Starlight IR PTZ HDCVI Camera

In stock
SKU: SD59225-HC-LA
$466.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

SD59225-HC-LA

2MP 25x Starlight IR PTZ HDCVI Camera

> 1/2.8" 2Megapixel STARVIS™ CMOS

> Powerful 25x optical zoom

> Starlight technology

> 120 dB true WDR, 3D DNR

> Max. 25/30 fps@1080P, 25/30/50/60 fps@720P

> IR distance up to 150 m

> IP66







Product Data

Camera

Image Sensor

1/2.8" STARVIS™ CMOS

Pixel

2MP

Max. Resolution

1920 (H) x 1080 (V)

ROM

16 MB

RAM

256 MB

Electronic Shutter Speed

1/3 s–1/100000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6
0 Lux@F1.6 (IR on)

Illumination Distance

150 m (492.13 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4

Lens

Focal Length

4.8 mm–120 mm

Max. Aperture

F1.6–F3.5

Field of View

H: 61°–2.8°
V: 22.6°–0.4°

Optical Zoom

25x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

1655.2 m (5430.45 ft)

656.8 m (2154.86 ft)

331.0 m (1085.96 ft)

165.5 m (542.98 ft)

PTZ

Pan/Tilt Range

Pan: 0°–360°
Tilt: -15°–+90°

Manual Control Speed

Pan:0.1°–300°/s
Tilt:0.1°–200°/s

Preset Speed

Pan: 400°/s; Tilt: 300°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

Video

Resolution

1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)

Frame Rate

1080P (25/30 fps), 720P (25/30/50/60 fps)

CVI Product Output Mode

CVI; TVI; AHD; CVBS

Day/Night

Support

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Defog

Electronic

Digital Zoom

16x

Flip

0°/180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a; G.711Mu

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Audio Input

1 (LINE IN; bare wire)

Analog Output

1 (CVBS/CVI output, BNC port )

RS-485

1 (baud rate range: 1200 bps–9600 bps)

Alarm Input

2

Alarm Output

1

Power

Power Supply

DC 24V/3A ± 25%

Power Consumption

9.6W
22W (IR light on, PTZ)

Environment

Operating Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤ 95%RH

Protection

IP66; TVS 6000V lightning protection; surge protection

Structure

Dimensions

310.0 mm × Φ186.0 mm (12.20" × Φ7.32")

Net Weight

3.9 kg (8.60 lb)

Gross Weight

7.2 kg (15.87 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Long-range outdoor perimeter and open-area surveillance where a single HDCVI PTZ must cover wide distances with 25x optical zoom and IR illumination.

Before you orderConfirm your recorder supports HDCVI and the DH-SD Pelco-P/D protocol, and check current lead time and quantity availability before ordering.
01
Powerful 25x Optical Zoom

A 4.8–120 mm lens brings distant subjects close, so one camera can monitor large open areas instead of several fixed units.

02
Starlight Low-Light Imaging

The 1/2.8-inch STARVIS CMOS and Starlight technology deliver usable color detail in very low light, reducing reliance on extra lighting.

03
Long-Range IR Coverage

IR illumination reaches up to 150 m, supporting night-time monitoring across wide perimeters and open spaces.
