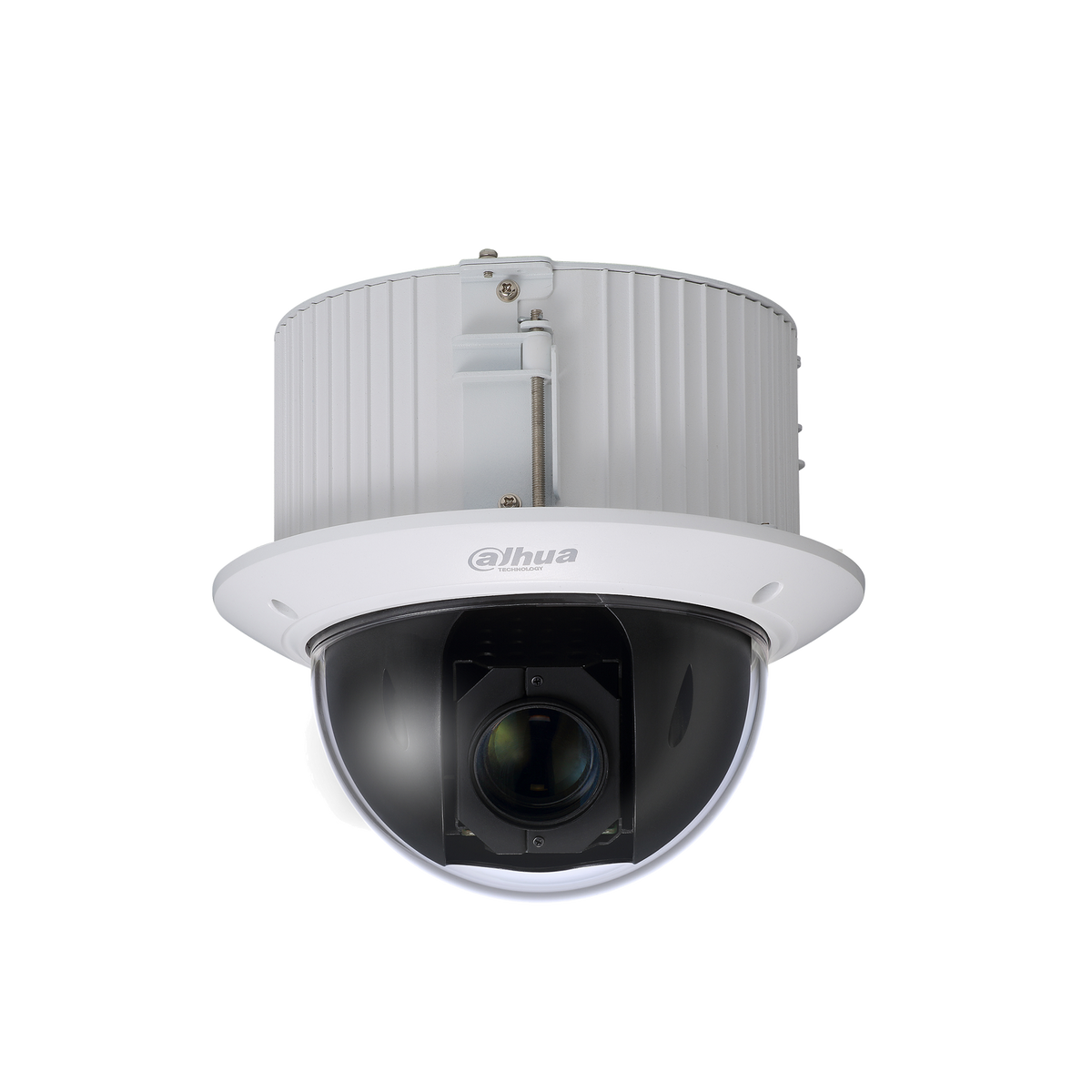

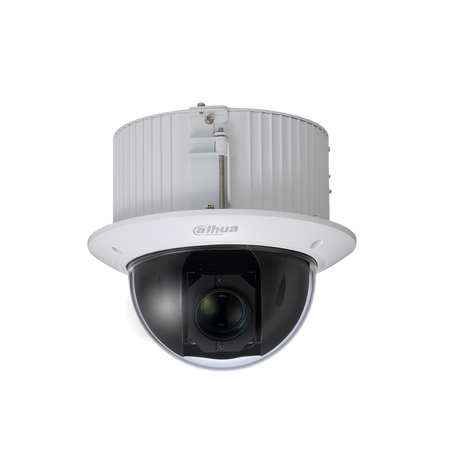

DAHUA SD52C230U-HNI 2MP 30x Starlight PTZ Network Camera

icctvzone

Dahua SD52C230U-HNI 2MP 30x Starlight PTZ Network Camera

In stock

SKU: SD52C230U-HNI

$845.00

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

SD52C230U-HNI

2MP 30x Starlight PTZ Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 30x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IK10

Product Data

Camera

Image Sensor

1/2.8” STARVIS™ CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

512M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6

S/N Ratio

More than 55dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Focal Length

4.5mm~135mm

Max. Aperture

F1.6 ~ F4.4

Angle of View

H: 67.8° ~ 2.4°

Optical Zoom

30x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

1862m(6109ft)

744m(2441ft)

372m(1220ft)

186m(610ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s

Preset Speed

Pan: 500° /s; Tilt: 500° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

Auto Tracking

Support

IVS

Tripwire, Intrusion, Abandoned/Missing

Advanced Intelligent Functions

Face Detection, Heat Map

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/1.3M/720P(1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

Support

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

N/A

RS485

N/A

Audio I/O

1/1

Alarm I/O

2/1

Electrical

Power Supply

AC24V/1.5A(±10%), PoE+(802.3at)

Power Consumption

13W

Environmental

Operating Conditions

-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ198(mm) x 177(mm)

Net Weight

2.2kg(4.85lb)

Gross Weight

3.7kg(8.16lb)

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Long-range outdoor perimeter and open-area surveillance where a 30x optical zoom PTZ with auto-tracking and IVS is needed.

Before you orderConfirm your PoE+ switch or injector can supply the required power budget and check current stock and lead time for the SD52C230U-HNI before ordering.

01

30x Optical Zoom Reach

A 4.5-135mm motorized lens lets operators pull in distant detail across large sites without repositioning the camera.

02

Starlight Low-Light Imaging

The 1/2.8-inch STARVIS sensor and Starlight technology keep color images usable in dim conditions down to 0.005 lux.

03

Auto-Tracking with IVS

Built-in auto-tracking and intelligent video analysis help the PTZ follow moving targets and flag events automatically.
