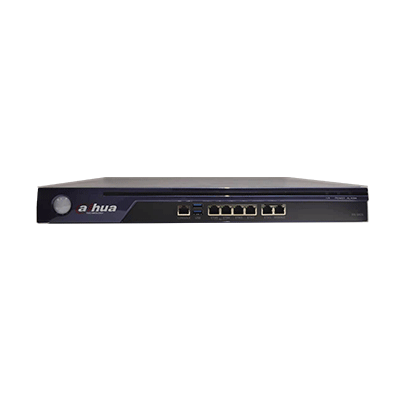

Dahua SACG200-S Security Access Control Gateway for Video Networks
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
SACG200-S
Dahua Security Access Control Gateway (SACG) solves the problem of private connection. Only trusted frontends and legal traffic are allowed to access the network, so as to realize the security of core data area of video network
>Device identity authentication: SACG can actively scan current network devices (such as IPC, PC, and NVR) to build an asset library, and authen ticate the identity of cameras for compliance through the device fea ture fingerprint technology, effectively blocking unauthorized devices
>Transfer protocol filtering: SACG can identify and filter transferred data at the protocol level, by only releasing compliance data, such as videos and pictures, while blocking illegal traffic.SACG is compatible with the protocol features of mainstream surveillance device manufacturers>Real-time blocking of threats: SACG can monitor access behaviors and transferred data of devices in a variety of ways, can block detected at tacks and send alarms in real time
>Asset status monitoring: SACG can monitor the operation status of cam eras in real time, including information on device IP address, online and offline time, Front-ends status,Front-ends type, manufacturer brand, geographic location, device online rate, and the quality of access links
>Unified security management: SACG can be integrated into the Dahua security management platform for unified management to intuitively present users with rich and real-time security operation status of the video surveillance system.
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DH-SACG200-S |
DH-SACG1000 |
DH-SACG5000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
200-channel 4M stream |
500-channel 4M stream |
1,500-channel 4M stream |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Height |
1U |
1U |
1U |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (W × D × H) (mm) |
300 × 430 × 44.5 |
440 × 423 × 44 |
440 × 423 × 44 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
40W |
150W |
150W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
High Reliability |
Hot standby and redundancy design of key components such as VRRP, power supply, and fan. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Security Access |
Authenticate access devices through IP, MAC, allowlist, and 802.1X protocol. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protocol Filtering |
Supports standard transfer protocols ONVIF, SIP, and most of the Private protocols of mainstream video manufacturers |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Adaptability |
Inline and bypass traffic direction deployment modes; static routing, RIP v1/2, OSPF, BGP, and policy routing. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Configuration Management |
Local configuration through the Console port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Local or remote configuration through Telnet or SSH |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote configuration management through web |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SNMP v1/v2/v3, unified operation and maintenance management, and NTP time sync |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Securing the core data area of a video surveillance network by allowing only authenticated devices and compliant traffic.
Builds an asset library by scanning network devices and authenticates cameras through device feature fingerprinting to block unauthorized hardware.
Identifies and filters transferred data at the protocol level, releasing compliant video and pictures while blocking illegal traffic.
Monitors access behaviors and transferred data, blocking detected attacks and sending alarms in real time.
