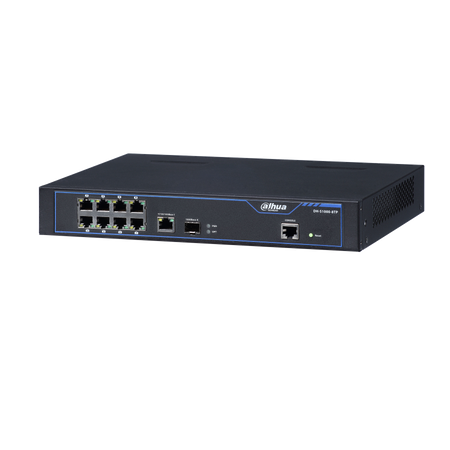

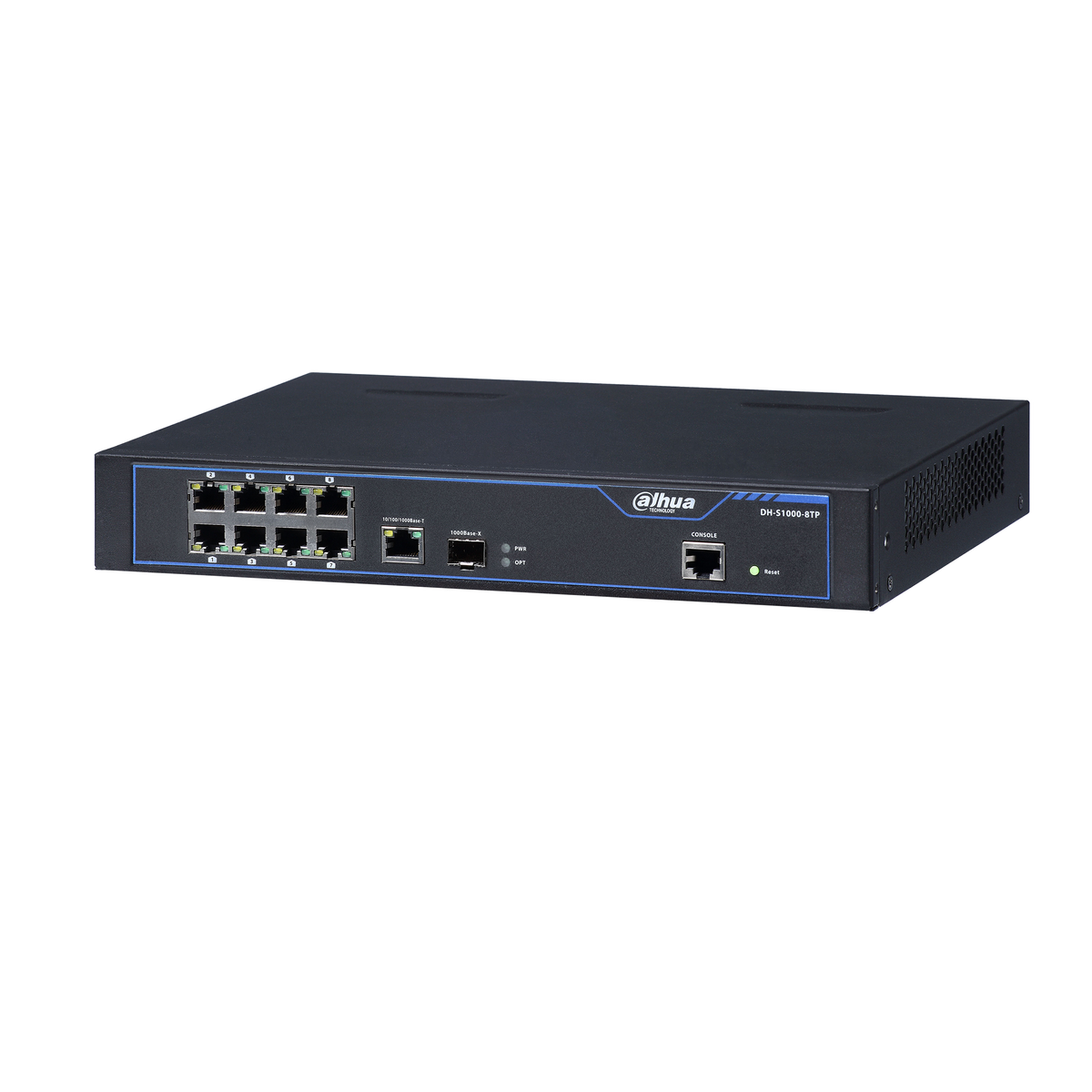

Dahua S1000-8TP 8-Port Hi-PoE Switch with Gigabit Uplink
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
S1000-8TP
8-Port Hi- PoE Switch
> Port1, 2 support 60W (Hi-PoE), IEEE802.3af and IEEE802.3at standards
> Support IEEE802.3af, IEEE802.3at standard
> MAC auto study and aging, MAC address list capacity is 8K
Product Data
| Technical Specification | |
| Model | DH-S1000-8TP |
| Ethernet Port | 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T(PoE power supply) |
| PoE Power Consumption | port1, 2 support ≤60W (Hi-PoE) port3, 4 support ≤30W port 5, 6, 7, 8 support ≤15.4W Total≤120W |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| Switching Capacity | 7.6G |
| Packet Forwarding Rate | 4.17Mpps |
| Packet Buffer Memory | 1Mb |
| MAC Table Size | 8K |
| Flow Control | Enable by default |
| Application Humidity | 10%-90% |
| Power | AC 100~240V |
| Lightning Protection | Common Mode 4KV Differential Mode 2KV |
| Working Temperature | -10°C~55°C |
| Weight | 2.66kg |
| Dimension(W×D×H) | 300mm×220mm×44.4mm |
| Accessories | |
| Model | |
| PFT3950 | 1.25G 850nm,500m,LC, Multi-mode |
| PFT3960 | 1.25G 1310/1550nm,20km,LC, Single-mode |
| PFT3970 | 1.25G 1550/1310nm,20km,LC, Single-mode |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering and connecting up to eight PoE surveillance cameras with higher-wattage Hi-PoE devices on the first two ports.
Ports 1 and 2 deliver up to 60W each, so higher-draw PoE devices can run from the same switch as standard cameras.
Ports 3 and 4 support up to 30W while ports 5 through 8 support up to 15.4W, with a 120W total budget to plan around.
A 10/100/1000 Base-T port plus a 1000 Base-X slot give flexible uplink choices for linking the camera group to your network.
