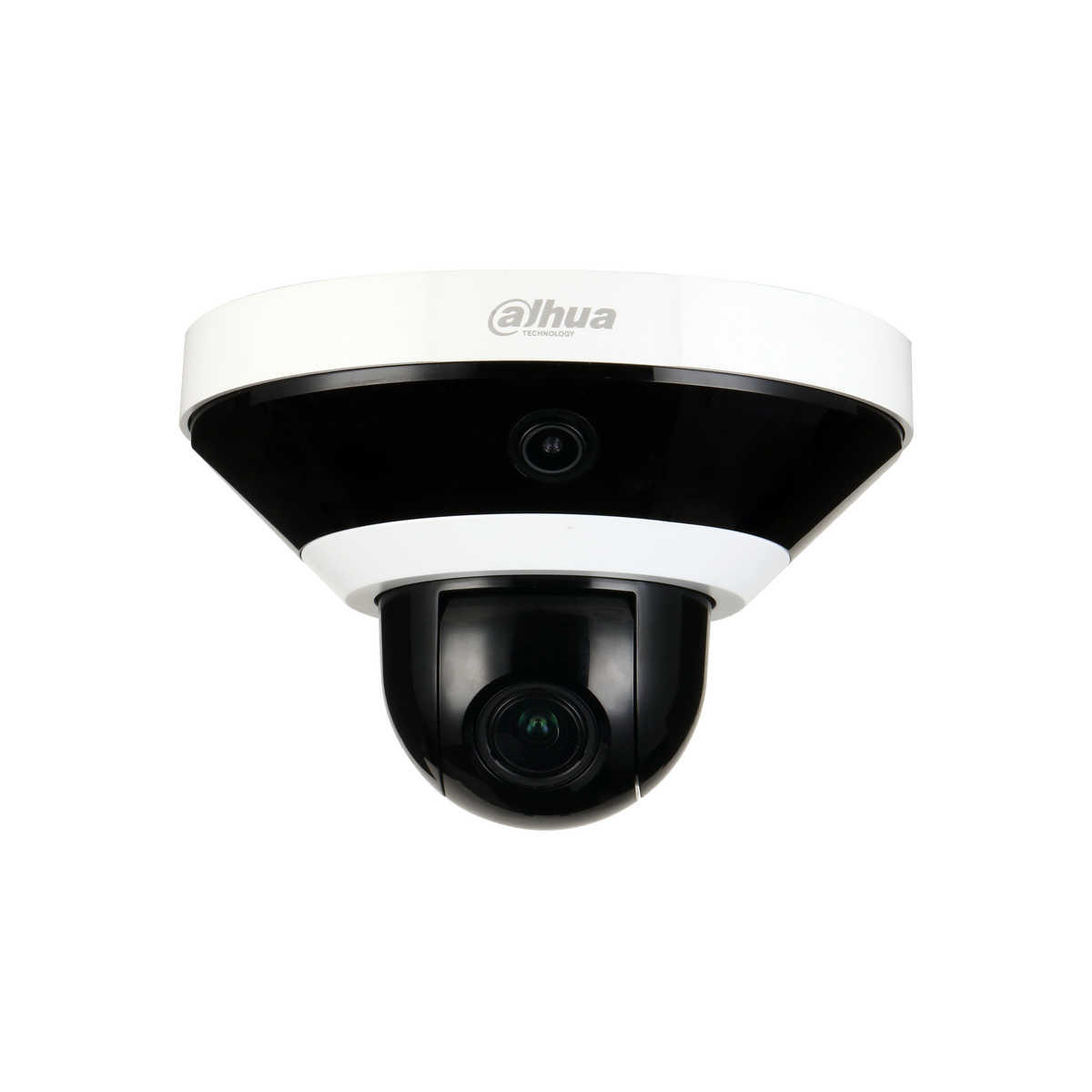

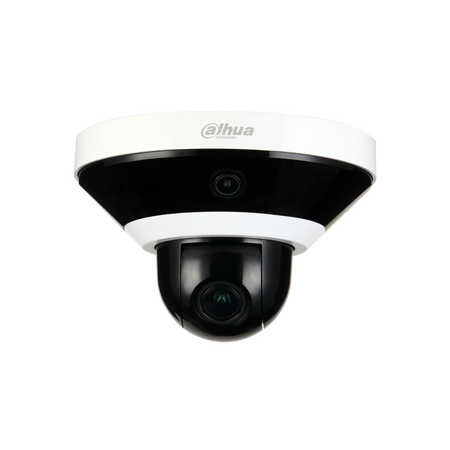

Dahua PSDW5231S-B120 2MP Multi-Sensor Panoramic + PTZ Network Camera
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PSDW5231S-B120 2MP Multi-Sensor Network Camera+PTZ Camera
> Panoramic: 1/2.7” 2Megapixel progressive scan CMOS
> PTZ: 1/2.7” 2Megapixel progressive scan CMOS
> H.265/H.264 dual-stream encoding
> 25fps@1920x1080
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Max IR LEDs Length 15m
> Micro SD card slot, up to 256GB
> PoE
Product Data
|
Panoramic Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.7” 2Megapixel CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
1920(H)x1080(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.03Lux/F2.2( Color,1/3s,30IRE) 0.2Lux/F2.2( Color,1/30s,30IRE) 0.03Lux/F2.2( B/W,1/3s,30IRE) 0.2Lux/F2.2( B/W,1/30s,30IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
Distance up to 15m(49ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
Auto/ Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LEDs |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Panoramic Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Aperture Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F2.2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 136˚, V:78˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
30m(98ft) |
12m(39ft) |
6m(20ft) |
3m(10ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PTZ Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.7” 2Megapixel CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
1920(H)x1080(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
1024MB/128MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1~1/30000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.02Lux/F1.8( Color,1/3s,30IRE) 0.1Lux/F1.8( Color,1/30s,30IRE) 0.02Lux/F1.8( B/W,1/3s,30IRE) 0.2Lux/F1.8( B/W,1/30s,30IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PTZ Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.7mm~13.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Aperture Type |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 105.9˚~33.3˚, V: 56˚~18.7˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
5x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
W |
44m(144ft) |
18m(59ft) |
9m(30ft) |
4.5m(15ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
T |
133m (436ft) |
53m (174ft) |
26m (85ft) |
13m (43ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Wide-area indoor or outdoor sites that need one panoramic overview plus a zoomed PTZ view from a single camera position.
A 2MP panoramic sensor and a separate 2MP PTZ sensor give you overview and close-up coverage from one mounted unit.
The motorized 2.7-13.5mm PTZ lens zooms in on details while the fixed 2mm panoramic lens keeps the whole scene in frame.
H.265/H.264 dual-stream encoding at up to 25fps@1920x1080 helps balance image quality against bandwidth and storage.
