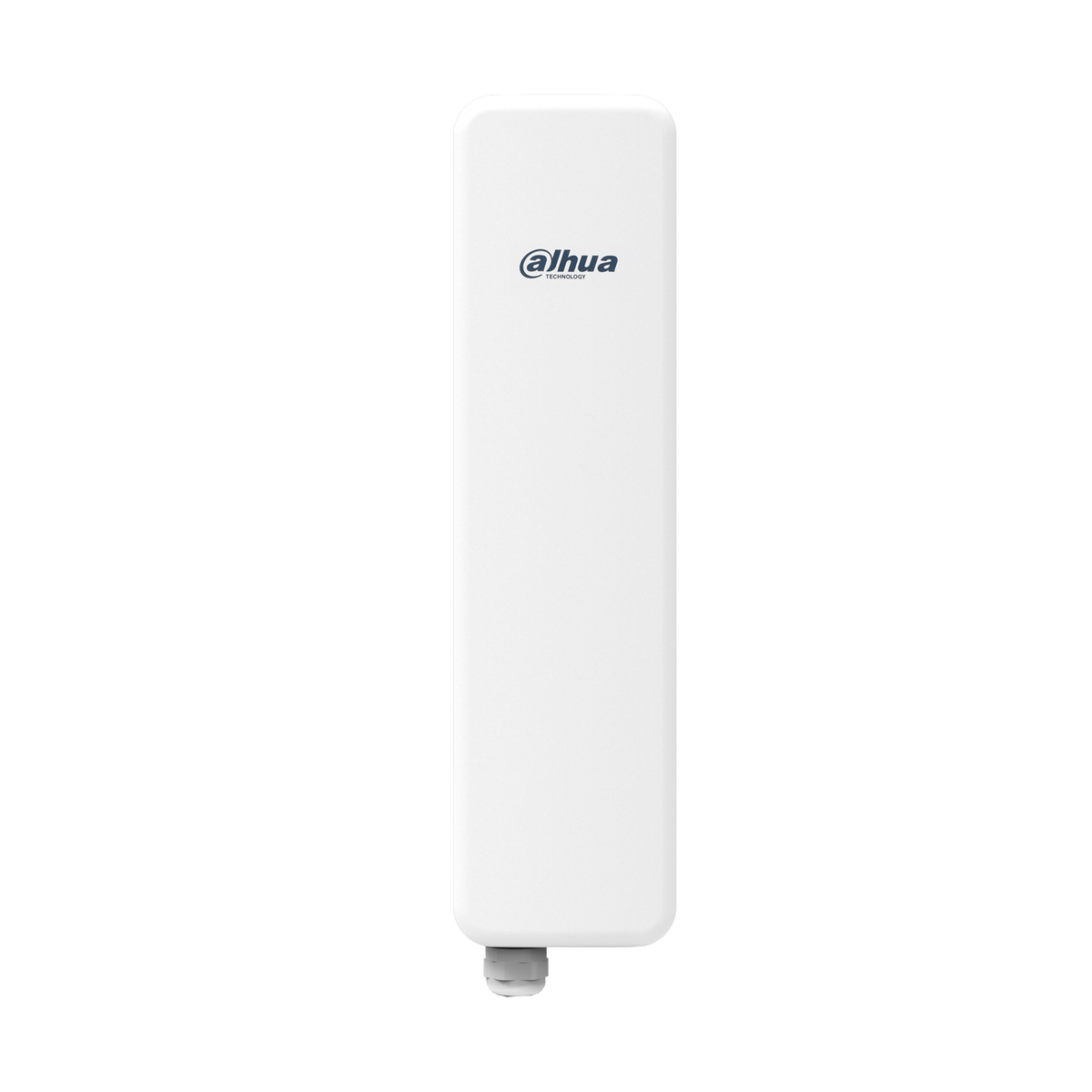

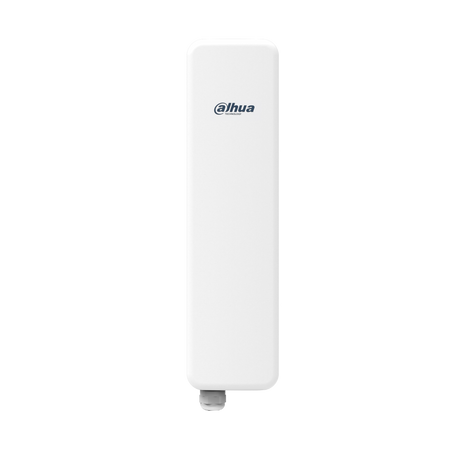

DAHUA PFWB5-90n 5GHz N300 Outdoor Wireless Base Station
DAHUA PFWB5-90n 5GHz N300 Outdoor Wireless Base Station
icctvzone

Dahua PFWB5-90n 5GHz N300 Outdoor Wireless Base Station

In stock
SKU: PFWB5-90n
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

PFWB5-90n

5GHz N300 Outdoor Wireless Base Station

> Integrated 5 GHz (2x2) MIMO radio
> Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
> High performance and stability
> IP-66 standards rated enclosure
> Improved noise immunity
> TDMA ensures reliable communication
> Powerful OS
> Dual firmware
> Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging
> Recommended as Base Station for 0~5km PTMP wireless connection



Product Data

Technical Specification

Model

DH-PFWB5-90n

Wireless

WLAN Standard

IEEE802.11 a/n

Radio Mode

MIMO 2x2

Radio Frequency Band

5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Transmit Power

Up to 29 dBm (country dependent)

Receive Sensitivity

Varying between -97 and -75 dBm depending on modulation

Channel Size

5,10, 20, 40 MHz

Modulation Schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

Data Rates

802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

Error Correction

FEC, Selective ARQ

Duplexing Scheme

Time division duplex

Transmission Distance

0-5km (recommended), max≥7km

Antenna

Type

Integrated directional panel antenna

Gain

18dBi

Wired

Interface

10/100 Base-T, RJ45

Software

Wireless Operating Modes

Access point (auto WDS), access point (TDMA2), access point (TDMA3), station (WDS, TDMA2,TDMA3 ), station (ARP NAT)

Wireless Techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless Security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on TDMA

Network Operating Modes

Bridge, router iPv4, router IPv6

Network Techniques

Routing with and without NAT, VLAN

WAN Protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, Telnet

Tools

Site survey, link test, antenna alignment, spectrum analyzer, ping & trace

Physical

Dimensions

383 mm (Length)× 100mm (width )× 98mm (height )

Weight

520 g

Mounting

Combination wall / pole mount included

Power

Power Supply

12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power Source

100 – 240V AC

Power Consumption (max)

4.5W

Environmental

Operating Temperature

-30°C ~ +70°C

Humidity

0 ~ 90 % (non-condensing)

Management

System Monitoring

SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Certification

FCC/CE

Internal Antenna

Frequency Range

5.1 – 5.9 GHz

Gain

18 dBi

Polarization

Dual linear

Cross-pol Isolation

24dBi

VSWR

<1.7

Azimuth Beam Width (H pol)

90°

Azimuth Beam Width (V pol)

90°

Elevation Beam Width

20°

Technical Specification

Receive

Sensitivity

(dBm)

802.11n/

TDMA

(20/40

MHz)

15

Mbps

30

Mbps

45

Mbps

60

Mbps

90

Mbps

120

Mbps

135

Mbps

150

Mbps

-97

-95

-93

-88

-85

-81

-79

-77

30

Mbps

60

Mbps

90

Mbps

120

Mbps

180

Mbps

240

Mbps

270

Mbps

300

Mbps

-94

-92

-89

-85

-82

-78

-77

-75

802.11a

6

Mbps

9

Mbps

12

Mbps

18

Mbps

24

Mbps

36

Mbps

48

Mbps

54

Mbps

-97

-97

-95

-93

-90

-86

-82

-81

Output

Power

(dBm,

combined)

802.11n/

TDMA

(20/40

MHz)

15

Mbps

30

Mbps

45

Mbps

60

Mbps

90

Mbps

120

Mbps

135

Mbps

150

Mbps

29

28

28

28

27

27

25

24

30

Mbps

60

Mbps

90

Mbps

120

Mbps

180

Mbps

240

Mbps

270

Mbps

300

Mbps

28

28

28

28

26

26

24

23

802.11a

6

Mbps

9

Mbps

12

Mbps

18

Mbps

24

Mbps

36

Mbps

48

Mbps

54

Mbps

29

29

29

29

29

27

26

25

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Recommended as a base station for 0-5km point-to-multipoint wireless connections in outdoor surveillance transmission.

Before you orderConfirm your FCC frequency band, PoE/power source and mounting plan, plus current lead time, before ordering the PFWB5-90n.
01
Long-Range 5GHz Link

Integrated 18dBi directional panel antenna supports recommended 0-5km PTMP links with a maximum of 7km or more.

02
Stable TDMA Throughput

TDMA operation and improved noise immunity help keep communication reliable across busy 5GHz environments.

03
Weather-Rated Enclosure

IP-66 rated housing suits outdoor mounting, while built-in Site Survey, Link Test and Antenna Alignment tools simplify setup.
