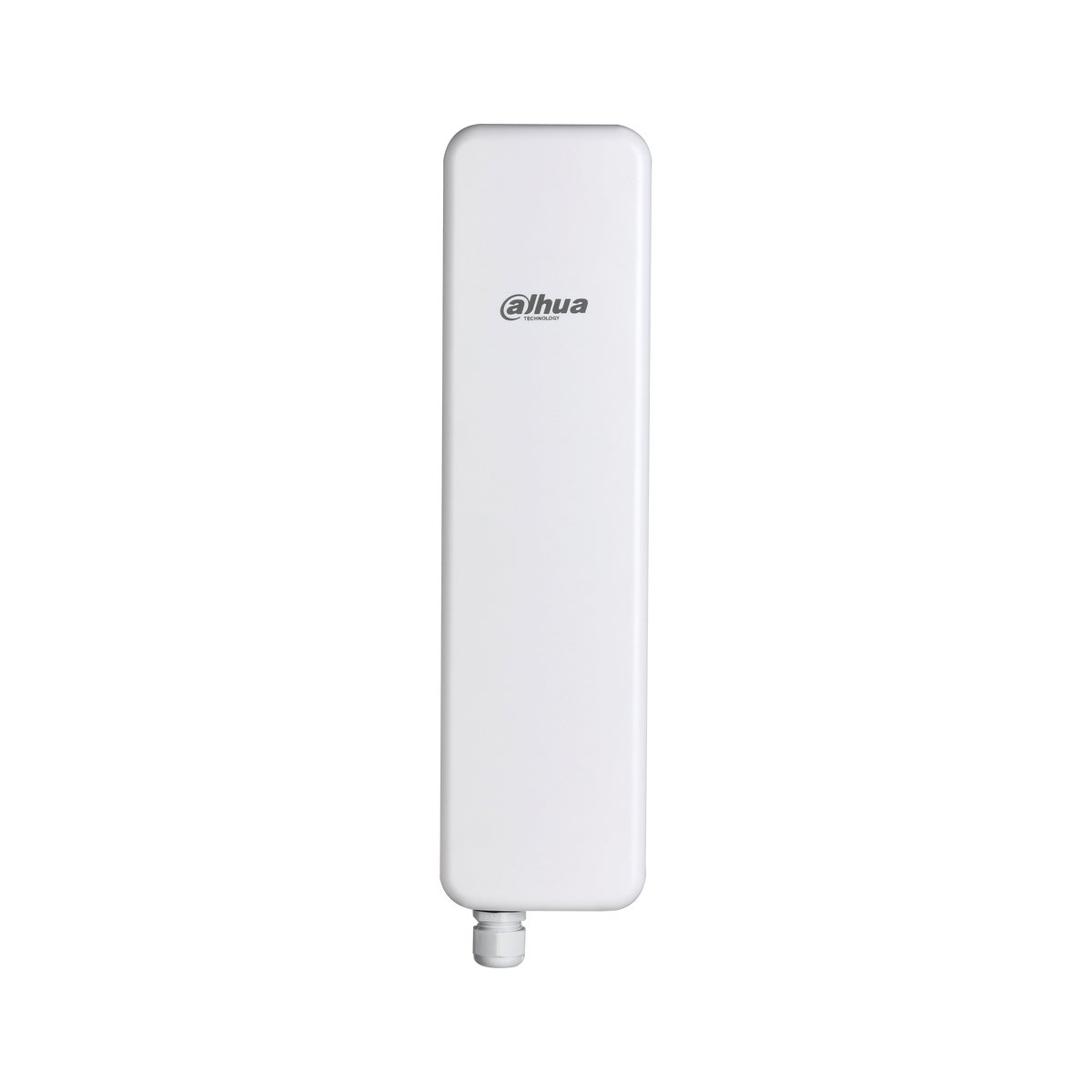

DAHUA PFWB5-90ac 5GHz AC867 18dBi Outdoor Base Station

icctvzone

Dahua PFWB5-90ac 5GHz AC867 18dBi Outdoor Base Station

In stock

SKU: PFWB5-90ac

$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

PFWB5-90ac

5GHz AC867 18dBi Outdoor Base Station

> Integrated 5 GHz (2x2) MIMO radio
> Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
> High performance and stability
> IP-66 standards rated enclosure
> Improved noise immunity
> TDMA ensures reliable communication
> Powerful OS
> Dual firmware
> Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging
> Recommended for 0~5km PTP/PTMP wireless connection(as a station in PTMP link)

Product Data

Technical Speciﬁcation

Model

DH-PFWB5-90ac

Wireless

WLAN Standard

IEEE 802.11 a/n/ac

Radio Mode

MIMO 2x2

Radio Frequency Band

5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Transmit Power

Up to 30 dBm (country dependent)

Receive Sensitivity

Varying between -95 and -75 dBm depending on modulation

Channel Size

5,10,20,40, 80 MHz

Modulation Schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)

Data Rates

802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps

Error Correction

FEC, LDPC

Duplexing Scheme

Time division duplex

Transmission Distance

0-5km (recommended), max≥7km

Antenna

Type

Integrated directional panel antenna

Gain

18dBi

Wired

Interface

10/100/1000 Base-T, RJ45

Software

Wireless Operating Modes

Access point (auto WDS), access point (TDMA), station (WDS, TDMA ), station (ARP NAT)

Wireless Techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless Security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on TDMA

Network Operating Modes

Bridge, router iPv4, router IPv6

Network Techniques

Routing with and without NAT, VLAN

WAN Protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, Telnet

Tools

Site survey, link test, antenna alignment

Physical

Dimensions

383mm (length)× 100mm (width )× 98mm (height )

Weight

520 g

Mounting

Pole mounting bracket included

Power

Power Supply

12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power Source

100 – 240V AC

Power Consumption (max)

10W

Environmental

Operating Temperature

-30°C ~ +70°C

Humidity

0 ~ 90 % (non-condensing)

Management

System Monitoring

SNMP, Syslog, Web UI, DWMP

Regulatory

Certification

FCC/CE

Internal Antenna

Frequency Range

5.1 - 5.9 GHz

Gain

18 dBi

Polarization

Dual linear

Cross-pol Isolation

24 dBi

VSWR

<1.7

Azimuth Beam Width (H pol)

90°

Azimuth Beam Width (V pol)

90°

Elevation Beam Width

20°

Technical Speciﬁcation
Receive Sensitivity (dBm)	802.11 ac (40MHz)	400 Mbps	360 Mbps	300 Mbps	270 Mbps	240 Mbps	180 Mbps	120 Mbps	90 Mbps
		-70	-72	-76	-78	-80	-84	-87	-92
		60 Mbps	30 Mbps
		-94	-95
	802.11 ac (80MHz)	866 Mbps	780 Mbps	650 Mbps	585 Mbps	520 Mbps	390 Mbps	260 Mbps	195 Mbps
		-64	-66	-70	-72	-74	-78	-81	-85
		130 Mbps	65 Mbps
		-88	-90
Output Power (dBm, combined)	802.11 ac (40MHz)	400 Mbps	360 Mbps	300 Mbps	270 Mbps	240 Mbps	180 Mbps	120 Mbps	90 Mbps
		26	27	28	29	30	30	30	30
		60 Mbps	30 Mbps
		30	30
	802.11 ac (80MHz)	866 Mbps	780 Mbps	650 Mbps	585 Mbps	520 Mbps	390 Mbps	260 Mbps	195 Mbps
		24	25	25	26	27	28	28	29
		130 Mbps	65 Mbps
		29	29

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Recommended for 0-5km point-to-point or point-to-multipoint wireless links where the PFWB5-90ac serves as a station in a PTMP deployment.

Before you orderConfirm your planned frequency band, power limits and PoE/power source match the PFWB5-90ac, and check current lead time before ordering.

01

Integrated 5GHz MIMO Radio

The built-in 2x2 MIMO radio keeps the outdoor link compact, so you avoid extra radio hardware at the mast.

02

18dBi Directional Panel

An integrated 18dBi directional panel antenna supports focused long-range links across the recommended 0-5km span.

03

IP-66 Outdoor Enclosure

The IP-66 rated housing is built for exposed outdoor mounting, helping protect the link through weather and dust.
