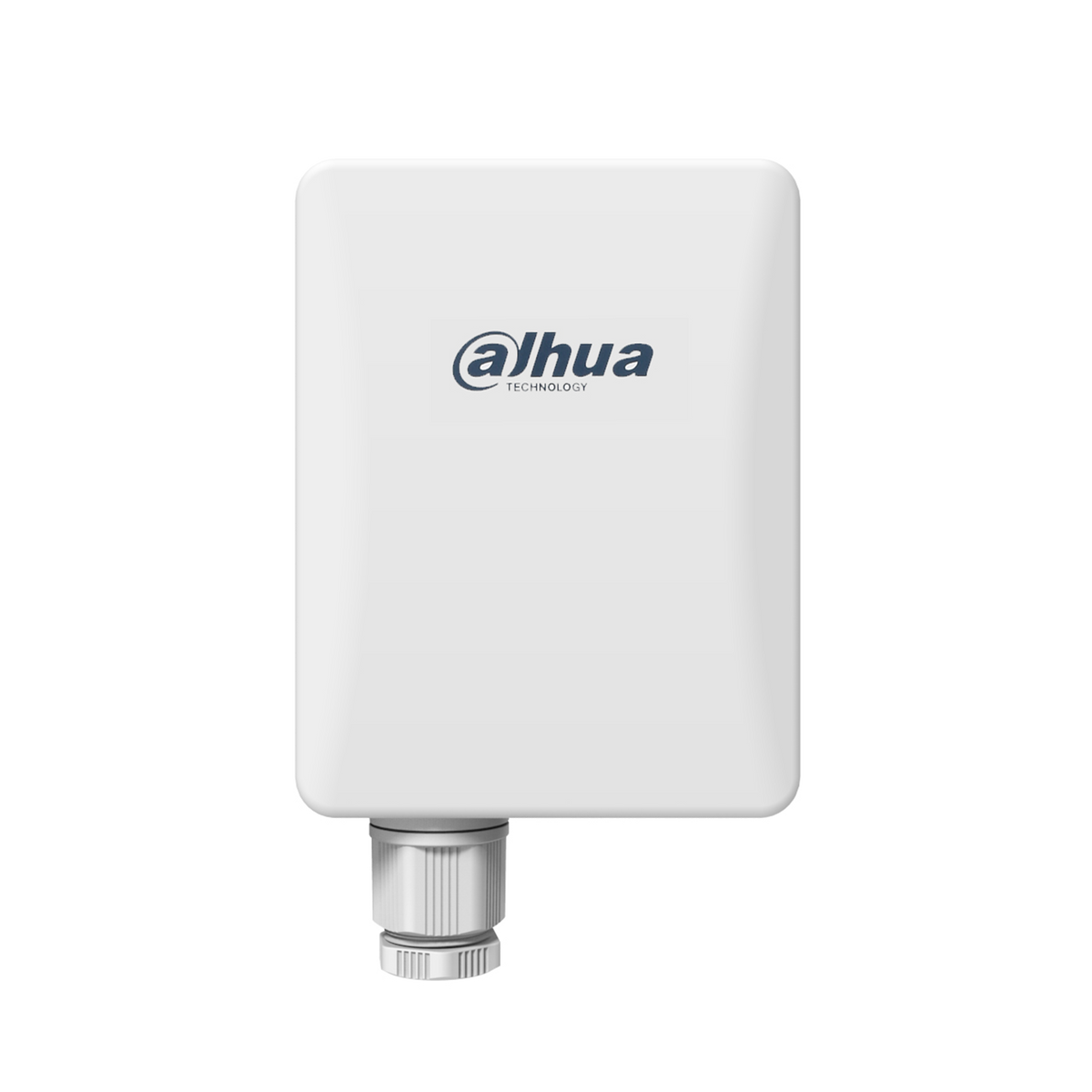

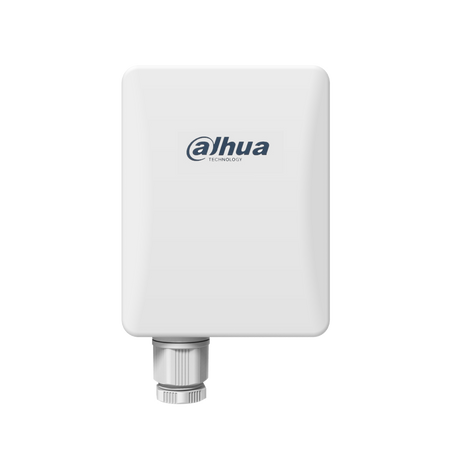

DAHUA PFWB5-30n 5GHz N300 15dBi Outdoor Wireless CPE
DAHUA PFWB5-30n 5GHz N300 15dBi Outdoor Wireless CPE
icctvzone

Dahua PFWB5-30n 5GHz N300 15dBi Outdoor Wireless CPE

In stock
SKU: PFWB5-30n
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

PFWB5-30n

5GHz N300 15dBi Outdoor Wireless CPE

> Integrated 5 GHz (2x2) MIMO radio
> Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
> Miniaturized design
> High performance and stability
> IP-65 standards rated enclosure
> Improved noise immunity
> TDMA ensures reliable communication
> Powerful OS
> Dual firmware
> Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging
> Recommended for 0~3km PTP/PTMP wireless connection (as a station in PTMP link)



Product Data

Technical Specification

Model

DH-PFWB5-30n

Wireless

WLAN Standard

IEEE802.11 a/n

Radio Mode

MIMO 2x2

Radio Frequency Band

Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Transmit Power

Up to 29 dBm (country dependent)

Receive Sensitivity

Varying between -97 and -75 dBm depending on modulation

Channel Size

5,10, 20, 40 MHz

Modulation Schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

Data Rates

802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

Error Correction

FEC, Selective ARQ

Duplexing Scheme

Time division duplex

Transmission Distance

0-3km (recommended), max≥5km

Antenna

Type

Integrated directional panel antenna

Gain

15dBi

Wired

Interface

10/100 Base-T, RJ45

Software

Wireless Operating Modes

Access point (auto WDS), access point (TDMA2), access point (TDMA3), station (WDS, TDMA2,TDMA3 ), station (ARP NAT)

Wireless Techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless Security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on TDMA

Network Operating Modes

Bridge, router iPv4, router IPv6

Network Techniques

Routing with and without NAT, VLAN

WAN Protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, Telnet

Tools

Site survey, link test, antenna alignment, spectrum analyzer, ping & trace

Physical

Dimensions

128 mm (Length)× 97mm (width )× 40mm (height )

Weight

200 g

Mounting

Combination wall / pole mount included

Power

Power Supply

12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power Source

100 – 240V AC

Power Consumption (max)

4.5W

Environmental

Operating Temperature

-30°C ~ +70°C

Humidity

0 ~ 90 % (non-condensing)

Management

System Monitoring

SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Certification

FCC/CE

Internal Antenna

Frequency Range

5.1 – 5.9 GHz

Gain

15dBi

Polarization

Dual linear

Cross-pol Isolation

27dBi

VSWR

<1.4

Azimuth Beam Width (H pol)

30°

Azimuth Beam Width (V pol)

30°

Elevation Beam Width

30°

Technical Specification

Receive

Sensitivity

(dBm)

802.11n/

TDMA

(20/40

MHz)

15

Mbps

30

Mbps

45

Mbps

60

Mbps

90

Mbps

120

Mbps

135

Mbps

150

Mbps

-97

-95

-93

-88

-85

-81

-79

-77

30

Mbps

60

Mbps

90

Mbps

120

Mbps

180

Mbps

240

Mbps

270

Mbps

300

Mbps

-94

-92

-89

-85

-82

-78

-77

-75

802.11a

6

Mbps

9

Mbps

12

Mbps

18

Mbps

24

Mbps

36

Mbps

48

Mbps

54

Mbps

-97

-97

-95

-93

-90

-86

-82

-81

Output

Power

(dBm,

combined)

802.11n/

TDMA

(20/40

MHz)

15

Mbps

30

Mbps

45

Mbps

60

Mbps

90

Mbps

120

Mbps

135

Mbps

150

Mbps

29

28

28

28

27

27

25

24

30

Mbps

60

Mbps

90

Mbps

120

Mbps

180

Mbps

240

Mbps

270

Mbps

300

Mbps

28

28

28

28

26

26

24

23

802.11a

6

Mbps

9

Mbps

12

Mbps

18

Mbps

24

Mbps

36

Mbps

48

Mbps

54

Mbps

29

29

29

29

29

27

26

25

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Extending surveillance networks across 0-3km point-to-point or point-to-multipoint wireless links where a station CPE is needed.

Before you orderConfirm your wireless band licensing and regulatory limits, plus the required CPE quantity and lead time, before ordering.
01
Long-Range Directional Link

The integrated 15dBi directional panel antenna supports recommended 0-3km PTP/PTMP connections for site-to-site coverage.

02
Stable TDMA Throughput

TDMA operation and 2x2 MIMO help maintain reliable communication and improved noise immunity on busy wireless links.

03
Weather-Ready Outdoor Build

An IP-65 rated enclosure lets the CPE sit outdoors, while built-in Site Survey and Link Test tools simplify alignment and debugging.
