Home » Dahua PFWB5-10ac 5GHz AC867 20dBi Outdoor Wireless CPE

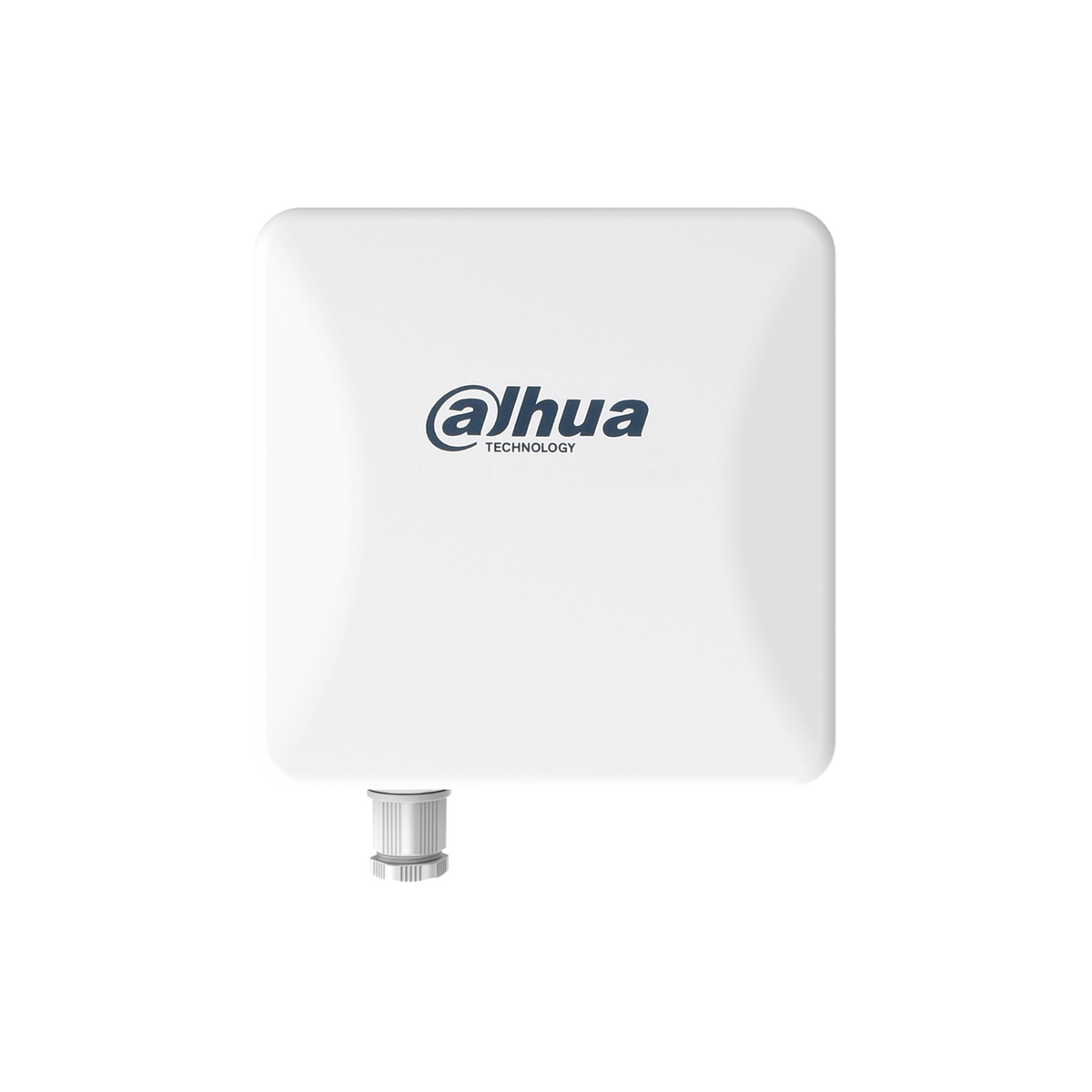

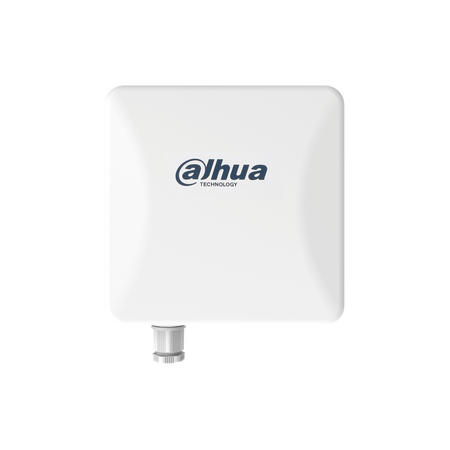

DAHUA PFWB5-10ac 5GHz AC867 20dBi Outdoor Wireless CPE
DAHUA PFWB5-10ac 5GHz AC867 20dBi Outdoor Wireless CPE
icctvzone

Dahua PFWB5-10ac 5GHz AC867 20dBi Outdoor Wireless CPE

In stock
SKU: PFWB5-10ac
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

PFWB5-10ac

5GHz AC867 20dBi Outdoor Wireless CPE

> Integrated 5 GHz (2x2) MIMO radio
> Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
> High performance and stability
> IP-66 standards rated enclosure
> Improved noise immunity
> TDMA ensures reliable communication
> Powerful OS
> Dual firmware
> Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging
> Recommended for 0~5km PTP/PTMP wireless connection(as a station in PTMP link)



Product Data

Technical Specification

Model

DH-PFWB5-10ac

Wireless

WLAN Standard

IEEE 802.11 a/n/ac

Radio Mode

MIMO 2x2

Radio Frequency Band

5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Transmit Power

Up to 30 dBm (country dependent)

Receive Sensitivity

Varying between -95 and -64 dBm depending on modulation

Channel Size

5,10,20,40, 80 MHz

Modulation Schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)

Data Rates

802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps

Error Correction

FEC, LDPC

Duplexing Scheme

Time division duplex

Transmission Distance

0-5km (recommended), max≥7km

Antenna

Type

Integrated directional panel antenna

Gain

20dBi

Wired

Interface

10/100/1000 Base-T, RJ45

Software

Wireless Operating Modes

Access point (auto WDS), access point (TDMA), station (WDS, TDMA ), station (ARP NAT)

Wireless Techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless Security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on TDMA

Network Operating Modes

Bridge, router iPv4, router IPv6

Network Techniques

Routing with and without NAT, VLAN

WAN Protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, Telnet

Tools

Site survey, link test, antenna alignment

Physical

Dimensions

185mm (length)× 185mm (width )× 81mm (height )

Weight

400 g

Mounting

Pole mounting bracket included

Power

Power Supply

12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power Source

100 – 240V AC

Power Consumption (max)

10W

Environmental

Operating Temperature

-30°C ~ +70°C

Humidity

0 ~ 90 % (non-condensing)

Management

System Monitoring

SNMP, Syslog, Web UI, DWMP

Regulatory

Certification

FCC/CE

Internal Antenna

Frequency Range

5.1 - 5.9 GHz

Gain

20 dBi

Polarization

Dual linear

Cross-pol Isolation

27 dBi

VSWR

<1.8

Azimuth Beam Width (H pol)

10°

Azimuth Beam Width (V pol)

10°

Elevation Beam Width

10°

Technical Specification

Receive

Sensitivity

(dBm)

802.11

ac

(40MHz)

400

Mbps

360

Mbps

300

Mbps

270

Mbps

240

Mbps

180

Mbps

120

Mbps

90

Mbps

-70

-72

-76

-78

-80

-84

-87

-92

60

Mbps

30

Mbps

-94

-95

802.11

ac

(80MHz)

866

Mbps

780

Mbps

650

Mbps

585

Mbps

520

Mbps

390

Mbps

260

Mbps

195

Mbps

-64

-66

-70

-72

-74

-78

-81

-85

130 Mbps

65

Mbps

-88

-90

Output

Power

(dBm,

combined)

802.11

ac

(40MHz)

400

Mbps

360

Mbps

300

Mbps

270

Mbps

240

Mbps

180

Mbps

120

Mbps

90

Mbps

26

27

28

29

30

30

30

30

60

Mbps

30

Mbps

30

30

802.11

ac

(80MHz)

866

Mbps

780

Mbps

650

Mbps

585

Mbps

520

Mbps

390

Mbps

260

Mbps

195

Mbps

24

25

25

26

27

28

28

29

130 Mbps

65

Mbps

29

29

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Point-to-point and point-to-multipoint wireless backhaul links over 0-5km where a directional 20dBi 5GHz CPE is required.

Before you orderConfirm the 5.150-5.850 GHz band is permitted at your site and verify quantity and lead time with ICCTVZONE before ordering.
01
Long-Range Directional Link

The integrated 20dBi panel antenna concentrates signal for stable 0-5km PTP/PTMP connections.

02
Stable TDMA Throughput

TDMA operation supports reliable communication and improved noise immunity across busy 5GHz links.

03
Weather-Ready Enclosure

An IP-66 rated housing helps the CPE keep working through outdoor rain and dust exposure.
