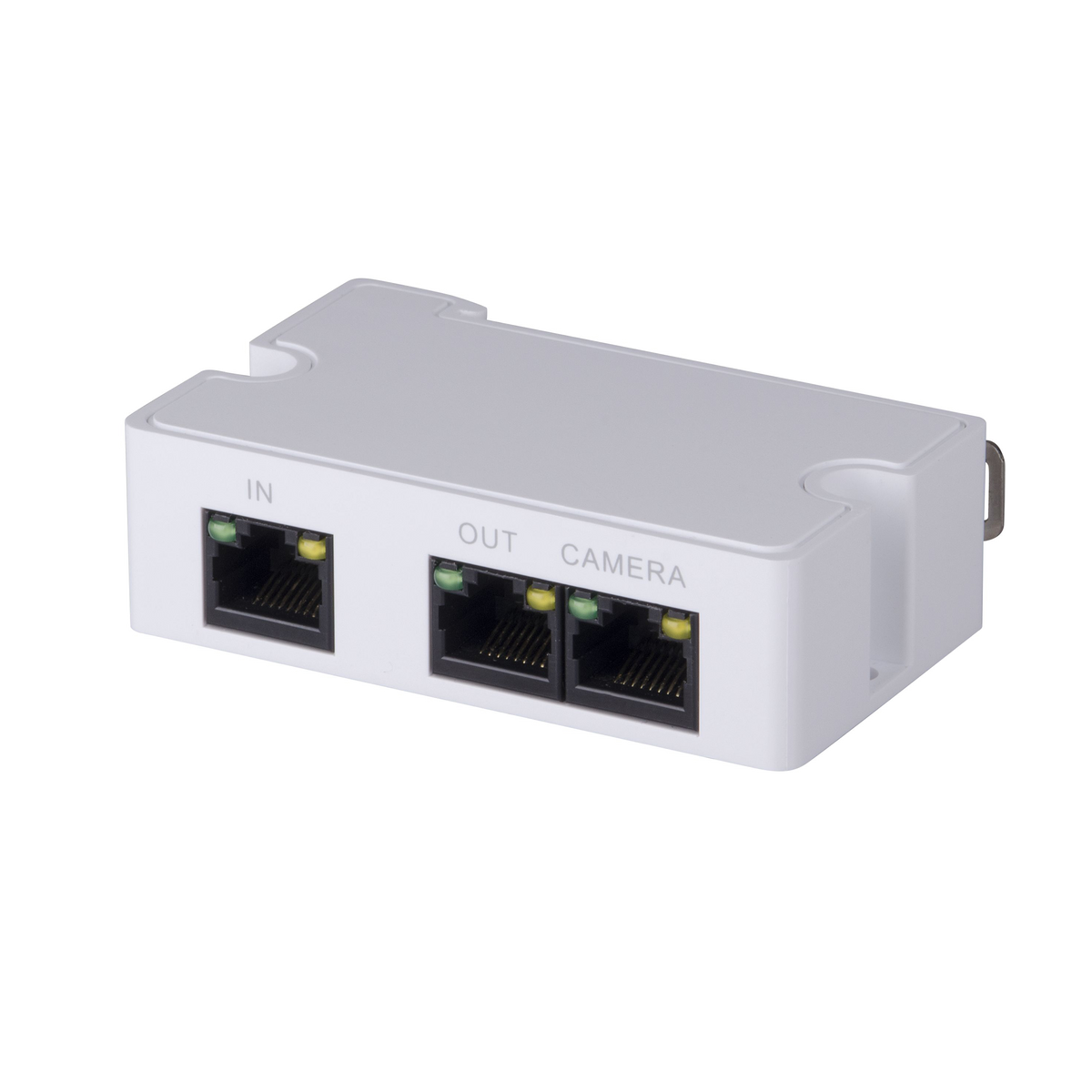

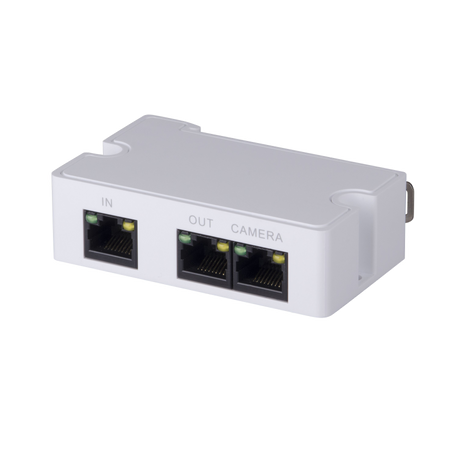

Dahua PFT1300 PoE Extender 10/100M 3-Port Cascade Transmission Accessory
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFT1300
> Support passive PoE cascade power supply and Ethernet data exchange
> Support IEEE 802.3af/at standard power supply IP Camera
> Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (total power consumption ≤25W), max transmission distance 300m
> 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
> Installation mode: junction box internal mounting, DIN rail mounting
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
PFT1300 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
1*10/100 Base-T PoE power receiving port 1*10/100 Base-T PoE power supply port, supply power for the next extender 1*10/100 Base-T PoE power supply port, supply power for IPC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Transmission Distance |
Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, total power consumption <=25W), transmission distance is 300m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
<=3W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application Humidity |
10%~90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
﹣30°C~65°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
57g |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(W×D×H) |
79mm×52mm×23mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Extending PoE and Ethernet to IP cameras beyond standard cable runs using a cascaded extender setup.
Supports passive PoE cascade power and Ethernet data exchange so one run can feed multiple cameras.
One PoE input plus two PoE outputs let you power an IP camera and daisy-chain the next extender.
With a compatible high PoE midspan, cascaded units reach up to 300m across three connected cameras.
