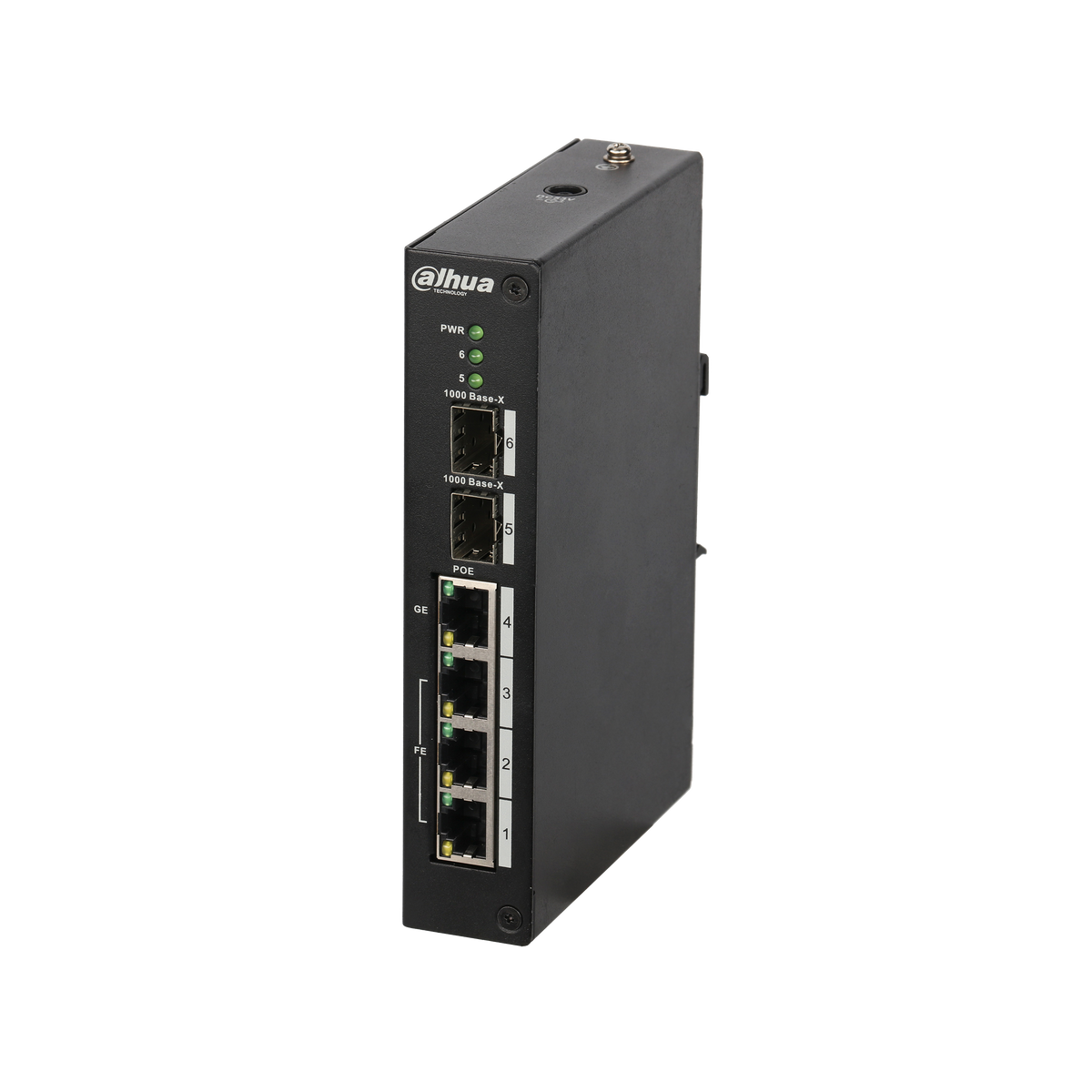

DAHUA PFS4206-4P-96 4-Port PoE Managed Switch
DAHUA PFS4206-4P-96 4-Port PoE Managed Switch
icctvzone

Dahua PFS4206-4P-96 4-Port PoE Managed Switch

In stock
SKU: PFS4206-4P-96
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

PFS4206-4P-96

4-Port PoE Managed Switch

> Layer 2 managed PoE switch
> MAC auto study and aging, MAC address list capacity is 8K
> Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
> Support RSTP
> Industrial wide temperature design
> PoE Management



Product Data

Technical Specification

Model

DH-PFS4206-4P-96

Ethernet Port

2*1000 Base-X(SFP)

1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE)

3*10/100 Base-T (PoE+/PoE)

PoE Power Consumption

Port1, 2, 3 ≤30W

Port4≤60W

Total≤96W

PoE Protocol

PoE(802.3af), PoE+(802.3at), Hi-PoE

Switching Capacity

6.8Gbps

Packet Forwarding Rate

4.91Mpps

Packet Buffer Memory

1Mb

Application Humidity

10%~90%

Power

DC48~57V

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Working Temperature

-30°C~65°C

Weight

480g

Dimension(W×D×H)

150mm×100mm×30mm

Service Characteristics

System

Username / password: admin/(empty)

IP Address :192.168.1.110/24

PoE Budget

96W

MAC Table Size

8K

VLAN

802.1Q Standard VLAN

Port Mirroring

Support many-to-one port mirroring

Flow Control

Support half-duplex based on back pressure type control

Support full duplex based on PAUSE frame

Network Management

WEB, SNMP V1/V2C

Ring Network

Support Spanning Tree, STP/RSTP

Support Loop Detection

PoE Management

Support PoE power consumption, PoE on/off of IPC configuration, power down when exceeding the value of overload power

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Industrial CCTV installations that need a compact Layer 2 managed switch with 96W PoE budget and wide-temperature operation.

Before you orderConfirm your camera PoE class and SFP uplink needs against the 96W budget and 2 SFP ports, and check current lead time before ordering.
01
Managed Layer 2 Control

Web and SNMP management plus VLAN and port mirroring give you clear control over camera traffic.

02
Flexible PoE Budget

A 96W total budget with Hi-PoE support on port 4 powers demanding devices alongside standard PoE cameras.

03
Wide Temperature Design

Rated for -30°C to 65°C operation, it suits exposed cabinets and harsh sites where standard switches struggle.
