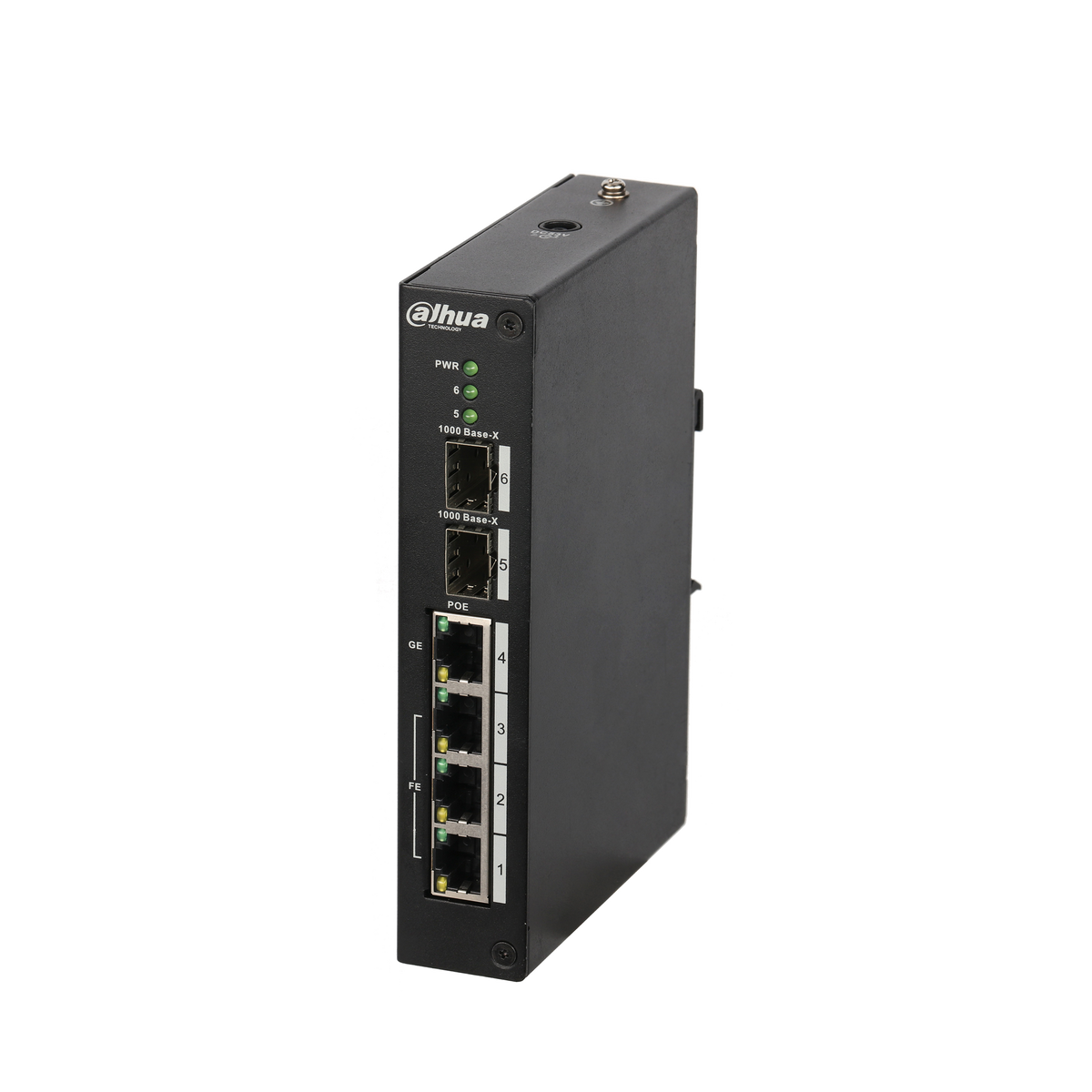

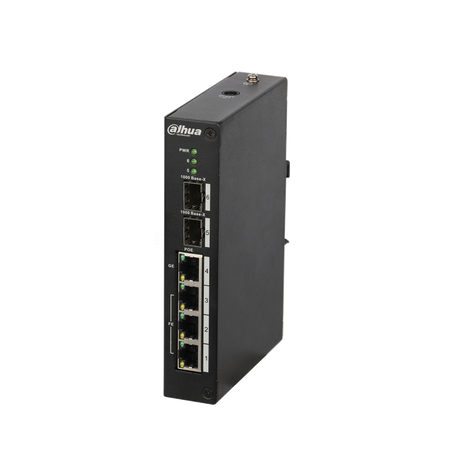

Dahua PFS3206-4P-120 4-Port Unmanaged PoE Switch
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFS3206-4P-120
4-Port PoE Switch (Unmanaged)
> Cascade can be realized via SFP fiber port
> MAC auto study and aging, MAC address list capacity is 8K
> Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Industrial wide temperature design
Product Data
|
Technical Specification |
|
|
Model |
DH-PFS3206-4P-120 |
|
Ethernet Port |
2*1000 Base-X 1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE) 3*10/100 Base-T (PoE+/PoE) |
|
PoE Power Consumption |
Port1, 2, 3 ≤30W Port4≤60W Total≤120W |
|
PoE Protocol |
IEEE802.3af, IEEE802.3at, Hi-PoE |
|
Switching Capacity |
6.8G |
|
Packet Forwarding Rate |
4.91Mpps |
|
Packet Buffer Memory |
1Mb |
|
MAC Table Size |
8K |
|
Flow Control |
Enable by default |
|
Application Humidity |
10%~90% |
|
Power |
DC48~57V |
|
Lightning Protection |
Common Mode 4KV Differential Mode 2KV |
|
Working Temperature |
-30°C~65°C |
|
Weight |
480g |
|
Dimension(W×D×H) |
150mm×100mm×30mm |
|
Accessories |
|
|
Model |
|
|
PFT3950 |
1.25G 850nm,500m,LC, Multi-mode |
|
PFT3960 |
1.25G 1310/1550nm,20km,LC, Single-mode |
|
PFT3970 |
1.25G 1550/1310nm,20km,LC, Single-mode |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Hardened unmanaged PoE distribution for small IP camera groups in wide-temperature cabinets or outdoor enclosures.
Industrial -30°C to 65°C working range keeps the switch usable in demanding cabinets and sheltered outdoor enclosures.
Three ports deliver up to 30W and port 4 up to 60W Hi-PoE, with a 120W total budget for mixed camera loads.
Two 1000 Base-X SFP slots let you cascade links over fiber using compatible modules such as the listed PFT3950 or PFT3970.
