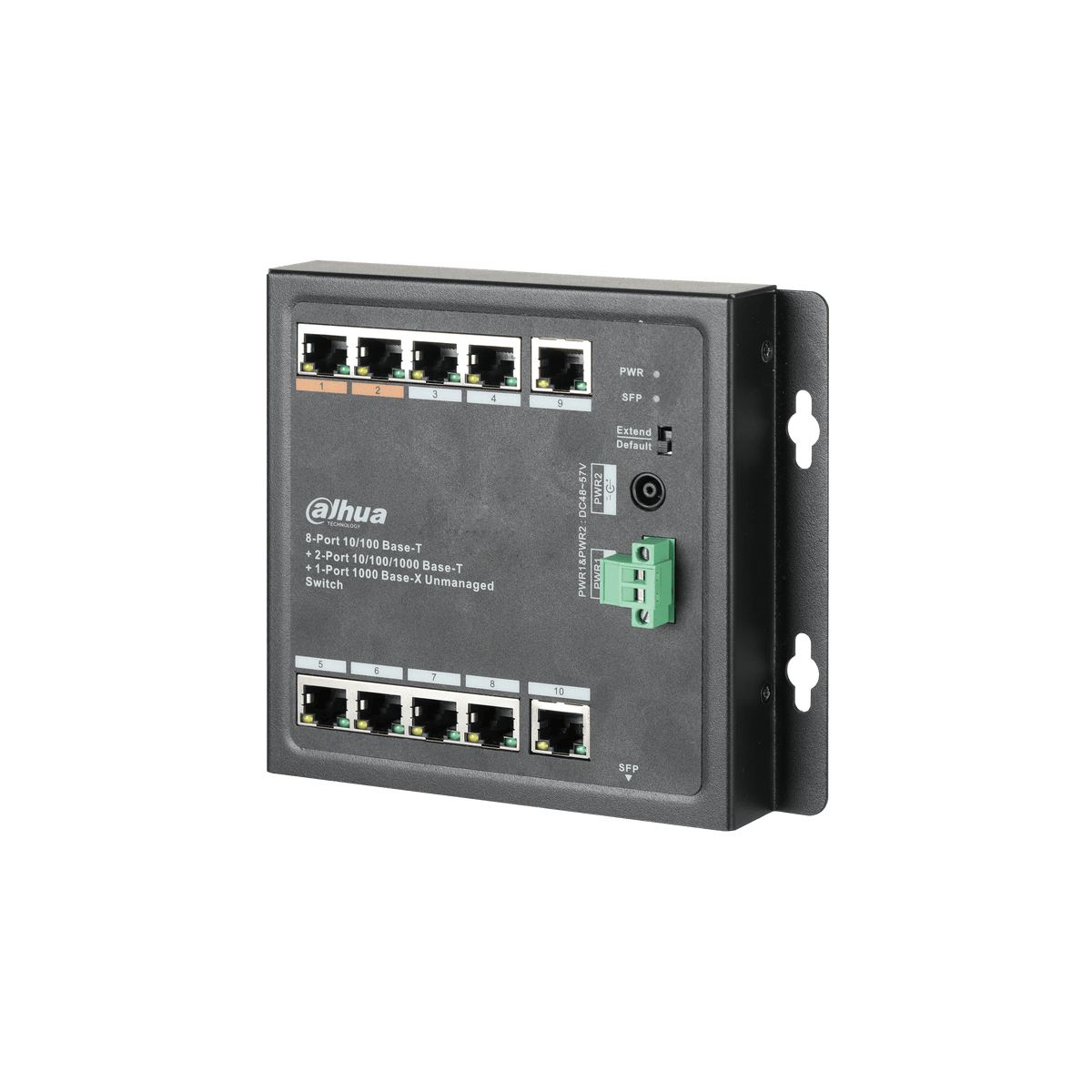

PFS3111-8ET-96-F
11-Port Switch with 8-Port PoE
> Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X standards
> MAC auto study and aging, MAC address list capacity is 8K
> Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 and 2 support Hi-PoE 60W power supply
> Adopts metal structure
> High protection grade, supports common mode 4KV, differential mode 2KV
> Supports DC 48V-DC 57V power supply and dual power backup
> Supports -30°C~65°C operating temperature
> Supports two types of transmission modes, which are Default and Extend.Default mode is standard Ethernet mode with transmission bandwidth of 100 Mbps and supports transmission distance up to 100M via CAT6.Extend mode is long distance transmission mode with transmission bandwidth of 10 Mbps and supports transmission distance up to 250M via CAT6. This function only supports port1-4
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DH-PFS3111-8ET-96-F |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
8*RJ45 10/100M (PoE) 2*RJ45 10/100/1000M (uplink) 1*SFP 1000M (uplink) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Power Consumption |
Port1≤60W, Port2≤60W, Port3~8≤30W, total power≤96W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Protocol |
IEEE802.3af, IEEE802.3at, Hi-PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
13.6Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
5.65Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Memory |
2Mb |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application Humidity |
10%~90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
DC 48-57V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lightning Protection |
Common Mode 4KV Differential Mode 2KV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
-30°C~65°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(W×D×H) |
158mm x130mm x25mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessories |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PFT3950 |
1.25G 850nm,500m,LC, Multi-mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PFT3960 |
1.25G 1310/1550nm,20km,LC, Single-mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PFT3970 |
1.25G 1550/1310nm,20km,LC, Single-mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering and connecting a small IP camera group over a single unmanaged PoE switch with uplink to the recorder or core network.
Feeds up to eight PoE cameras directly, cutting separate power runs and simplifying small installations.
Ports 1 and 2 support Hi-PoE 60W, so higher-draw devices can share the same switch as standard PoE cameras.
Extend mode on ports 1-4 trades bandwidth for distance, supporting runs up to 250M over CAT6 for remote cameras.
