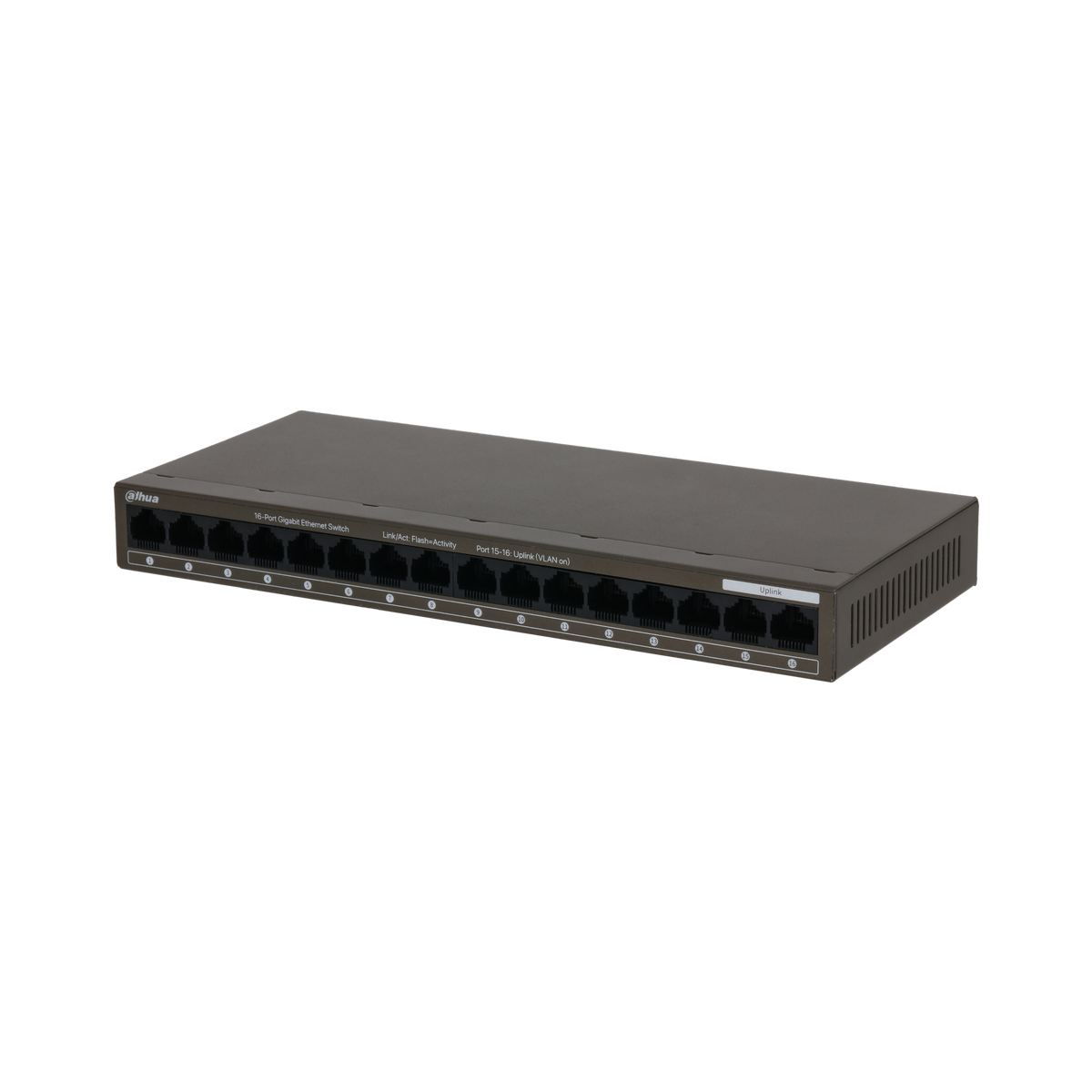

Dahua PFS3016-16GT-M 16-Port Gigabit Layer 2 Ethernet Switch, Metal
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFS3016-16GT-M
Ethernet Switch
> Plug and play: Just power-on and enjoy your device. No configuraiton required. It is suitable for forwarding scenarios.
> Fanless design: A fanless design is used to effectively reduce noise and create a quiet, serene environment. Its design also reduces mechanical loss to a certain extent and increases service life.
> Flexible installation: Supports multiple installation methods such as desktop mount and wall mount. Suitable for various installation scenarios.
Product Data
|
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter Provided |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
Not supported |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Speed |
10/100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Uplink Speed |
10/100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Description of Function Slots |
Port 1-16: 16 × RJ-45, 10/100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC external power supply |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +85 °C (–40 °F to +185 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Layer |
Layer 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Type |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
32 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
23.68 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Size |
2 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Jumbo Frame |
10K Byte |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
8K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Statics Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lighting Protection |
Common mode: 2 kV Differential mode: 1 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
235 mm × 103 mm × 27 mm (9.25" × 4.06" × 1.06") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop mount; wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Best for aggregating up to 16 non-PoE Gigabit camera or device connections in a small surveillance network.
All 16 RJ-45 ports run at 10/100/1000 Mbps simultaneously, so concurrent camera streams forward without bottlenecking.
A fanless metal design cuts noise and mechanical wear, making it suitable for quiet rooms and long unattended service.
No configuration or management is required, so you can power on and start forwarding traffic right away.
