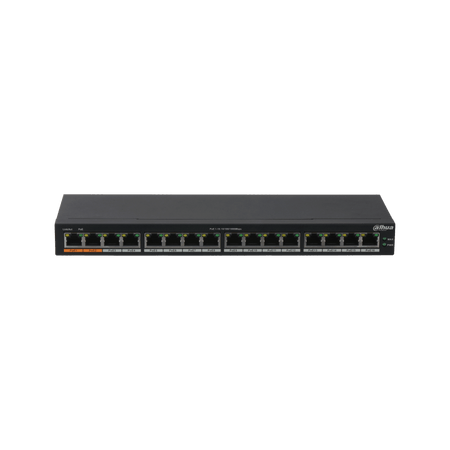

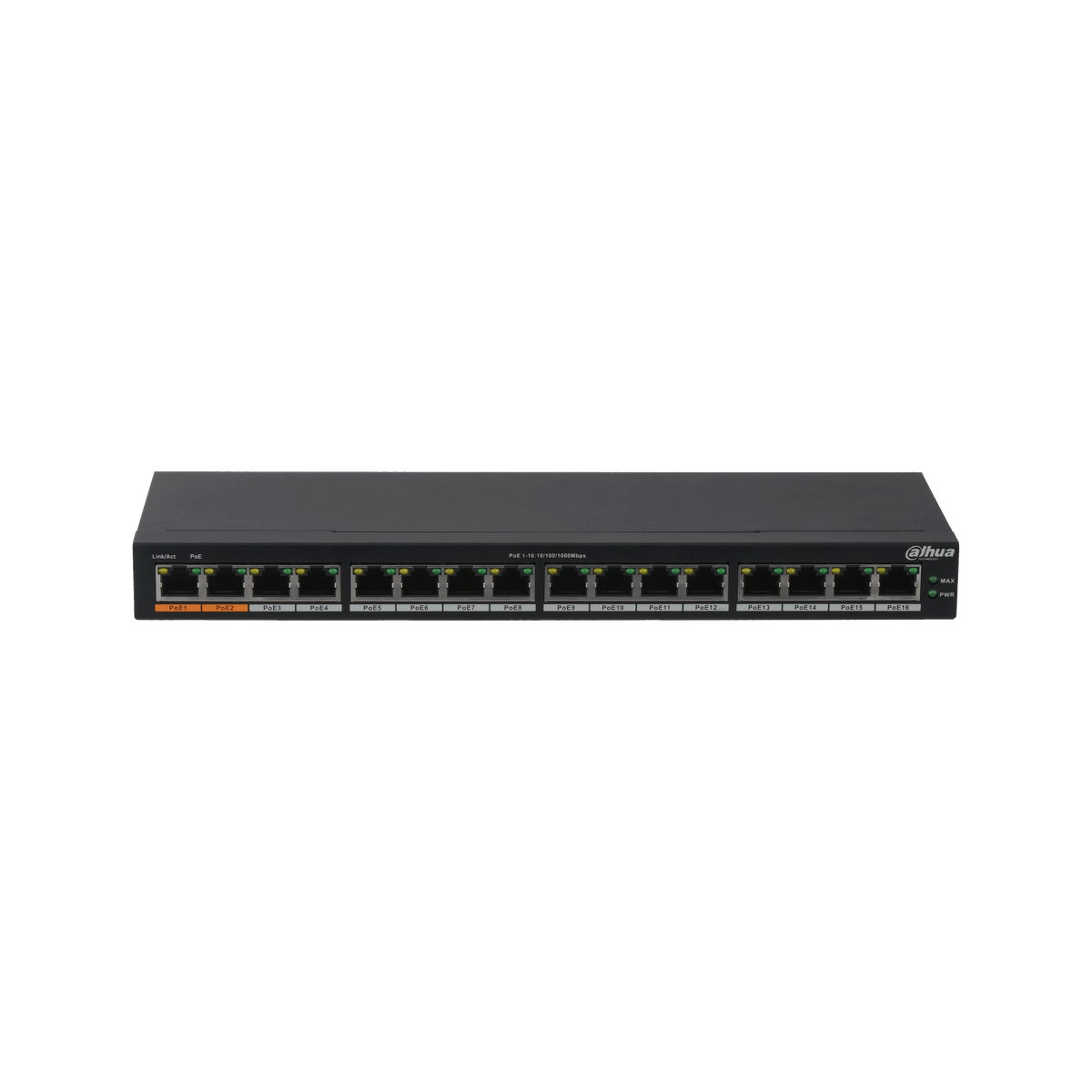

Dahua PFS3016-16GT-190 16-Port Unmanaged Gigabit PoE Switch
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFS3016-16GT-190
16-Port Unmanaged Gigabit PoE Switch
> Intelligent PoE
> Plug-and-play
> Ethernet port supports eight-pin PoE
> Wide range of working temperature: –10 to +55°C (14°F to +131°F)
> Full gigabit port design
Product Data
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Layer |
Layer 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
32 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
23.808 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Memory |
4.1 Mb |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
8K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hardware Feature |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Standard Power Supply |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Rate |
1 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Number of Bussiness Card Slots |
Port 1–port 16: 16 × RJ-45 10M/100M/1000M (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
100V AC –240V AC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10°C to +55°C (14°F to +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Idling: 18W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Standard |
IEEE802.3af, IEEE802.3at, Hi-PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Budget |
Port 1–port 2 ≤ 60W, port 3–port 16 ≤ 30W, total ≤ 190W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Pin Assignment |
PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ESD |
Air discharge: 8kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thunderproof |
Common mode: 4kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
285 mm × 104.6 mm × 28 mm (11.22" × 4.12" × 1.10") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
455 mm × 270 mm × 92 mm (17.91" × 10.63" × 3.62") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering and connecting up to 16 PoE surveillance cameras over a gigabit network backbone.
Sixteen RJ-45 gigabit ports keep camera traffic moving at 1 Gbps per port for smooth video streams.
The first two ports support up to 60W Hi-PoE, giving high-draw devices dedicated power headroom.
Unmanaged design means no configuration is needed, so you can deploy the switch quickly.
