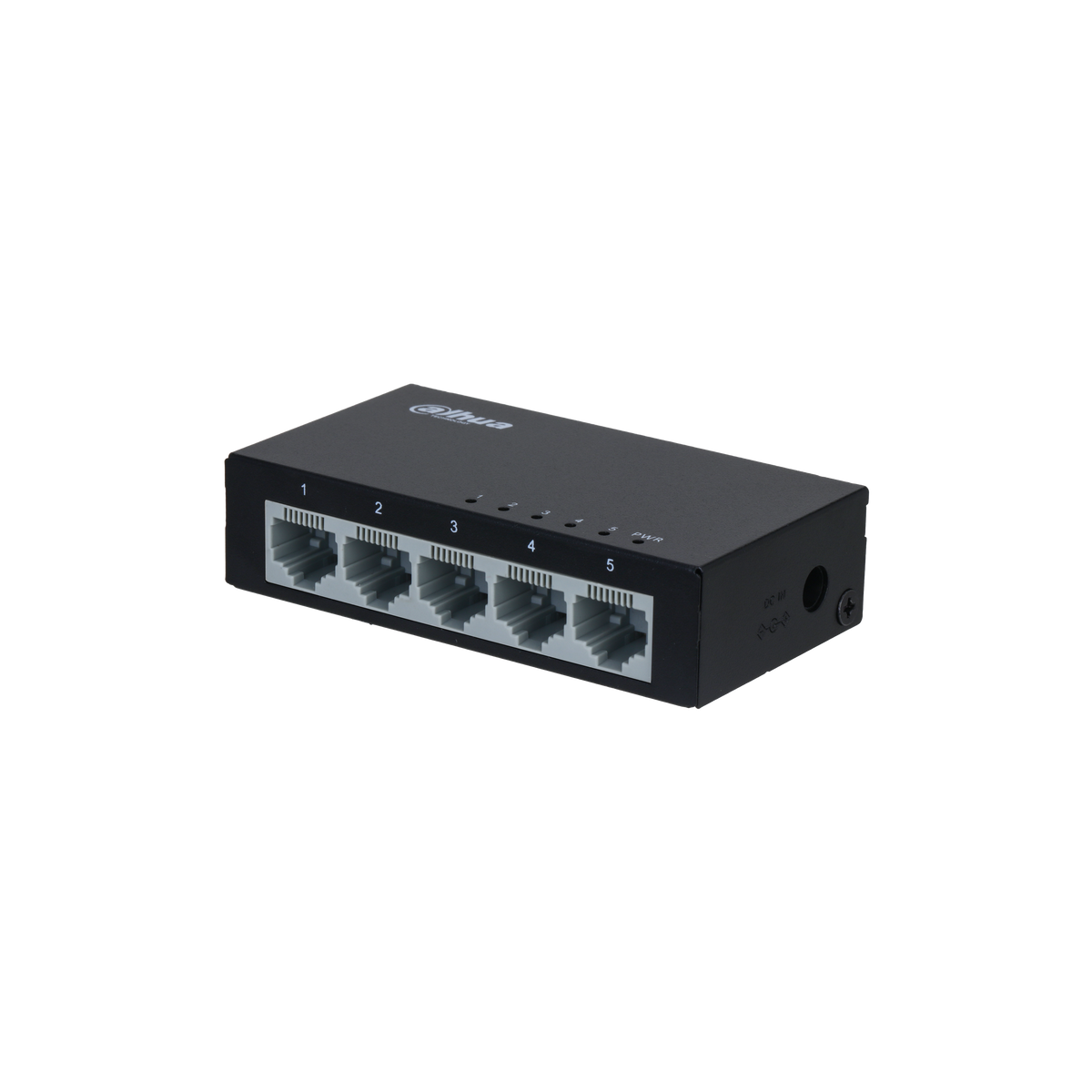

Dahua PFS3005-5ET 5-Port 10/100 Mbps Unmanaged Ethernet Switch
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFS3005-5ET
> Supports five 10/100 Mbps adaptive ports.
> Small and light, it is easy to carry and has multiple chips embedded in it.
> Easy to operate.
|
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Included Power Adapter |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Speed |
100 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Description of Function Slots |
Port 1–5: 5 × 10/100 Base-T |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC; 1 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
0 °C to +45 °C (+32 °F to +113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Idling: 0.1 W; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MTBF |
952.50 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
1 Gbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
0.744 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Size |
1 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
2K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Statics Protection |
Air discharge: 8 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lighting Protection |
Common mode: 2 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.16 kg (0.35 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.28 kg (0.62 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
87.0 mm × 47.0 mm × 22.0 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
94.0 mm × 111.0 mm × 67.0 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE; FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Adding a compact five-port 10/100 Mbps network distribution point for small IP camera installations.
Five 10/100 Mbps adaptive ports give you a simple way to connect several network devices at one point.
A small metal housing at roughly 87 x 47 x 22 mm fits neatly on a desktop where space is limited.
Idling at about 0.1 W and 0.5 W at full load, it keeps running costs modest in always-on setups.
