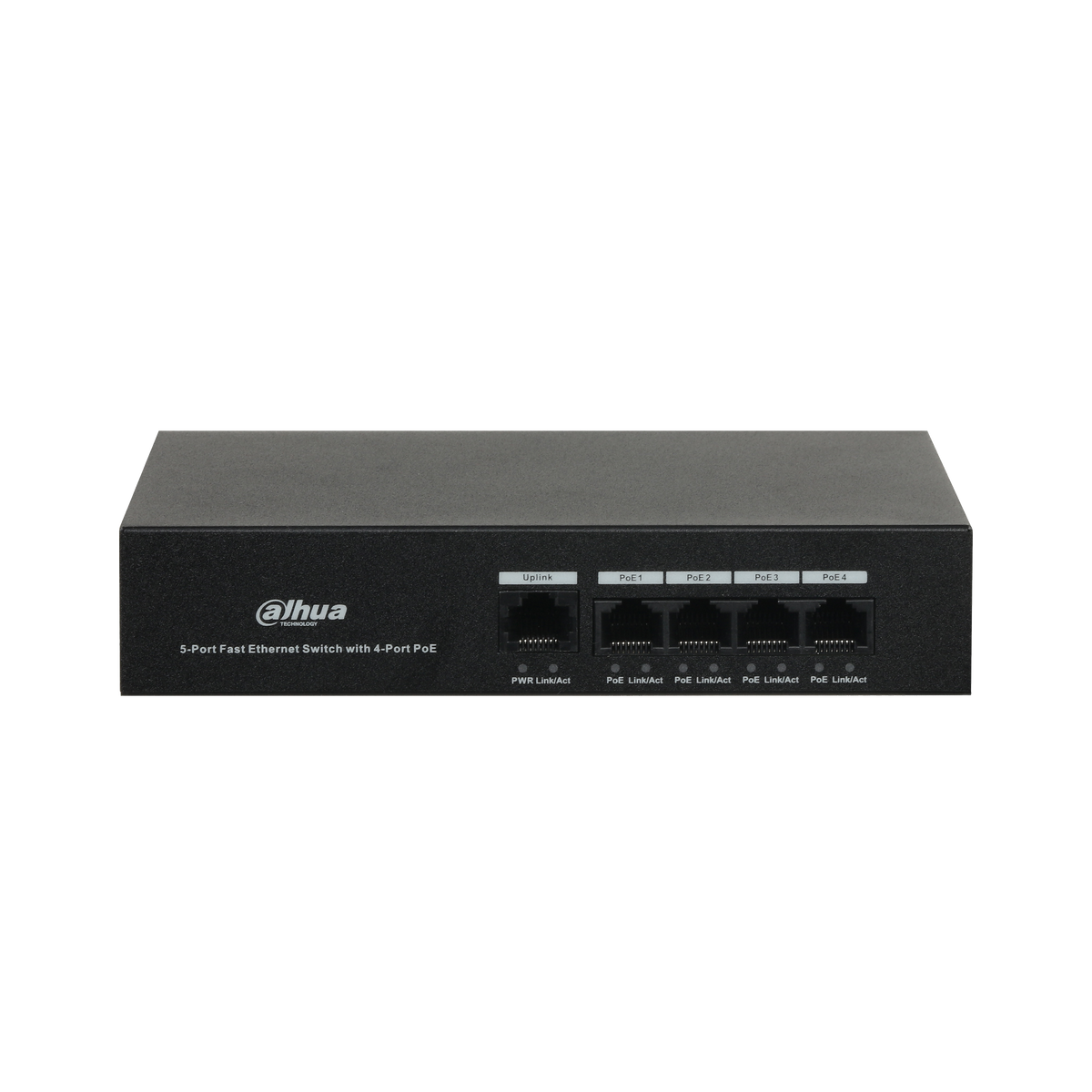

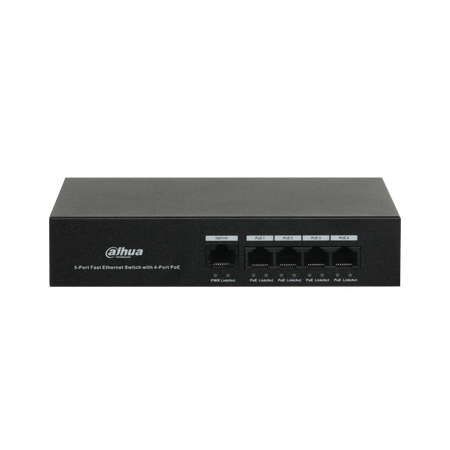

PFS3005-4ET-36
4-Port PoE Switch (Unmanaged)
> MAC auto study and aging, MAC address list capacity is 1K
> Support IEEE802.3af, IEEE802.3at standard
> Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DH-PFS3005-4ET-36 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
1*10/100 Base-T 4*10/100 Base-T (PoE power supply) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Power Consumption |
Each power ≤30W, Total≤36W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Protocol |
IEEE802.3af, IEEE802.3at |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
1Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
744Kpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Memory |
448Kb |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
1K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flow Control |
Enable by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application Humidity |
10%~90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
Input AC100~240V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lightning Protection |
Common Mode 2KV Differential Mode 1KV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
-10°C to +55°C (-14°F–131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
0.5kg |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(W×D×H) |
170mm×100mm×35mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering and connecting up to four PoE surveillance cameras from a single unmanaged switch in small installations.
Delivers power and data over four 10/100 Base-T PoE ports so compatible cameras can run from one switch.
Supports up to 30W per port with a 36W total PoE budget, letting you plan power draw across connected devices.
Unmanaged design with MAC auto study and aging keeps deployment simple for straightforward camera networks.
