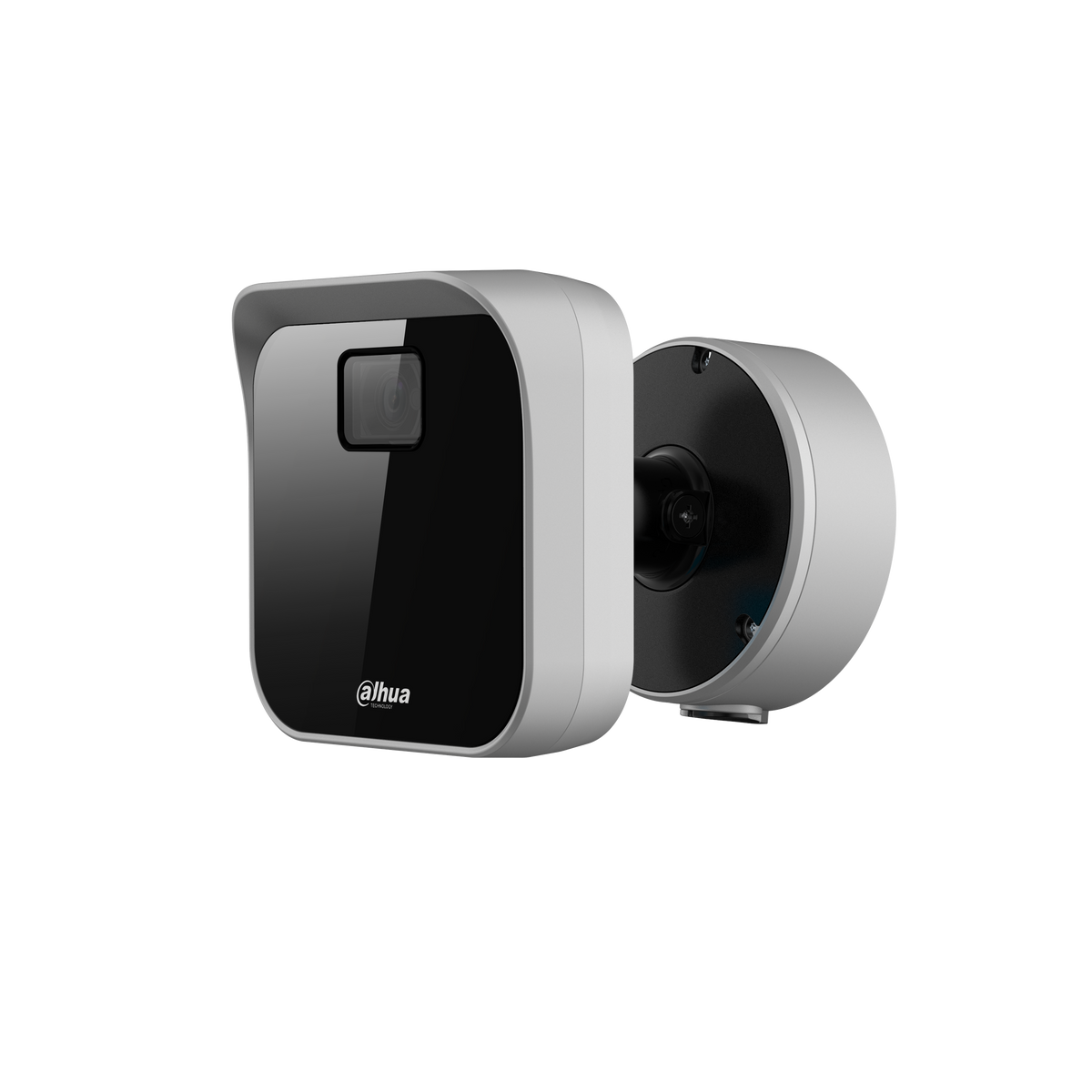

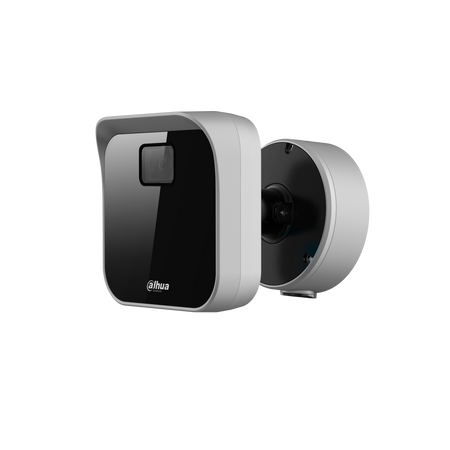

DAHUA PFR5QI-E60 4MP IR 60 m Visual Radar

icctvzone

Dahua PFR5QI-E60 4MP 60 GHz Radar-Video Camera

In stock

SKU: PFR5QI-E60

$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

PFR5QI-E60

> Radar and video integration.

> 60 GHz high frequency radar is not affected by severe weather.

> Extremely low rate of false alarms and no missing alarms.

> 4MP 1/1.8" CMOS image sensor, low illuminance, high image definition.

> Easy to calibrate: One-click auto calibration and manul calibration.

> Supports drawing protection zone on live view which can be transformed to radar protection zone automatically; applicable to various scenes.

> Target filtering of human and vehicles.

> Speed filtering of target with a speed of 0–40 km/h, achieving accurate and efficient detection.

> Outputs max. 4MP (2560 × 1440) @30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR illuminator, and the max. illumination distance is 35 m.

Product Data

Radar

Max. Target Number

64

Distance

60 m (196.85 ft)

Angle

Horizontal: 120°
Pitch angle: 26°

Distance Accuracy

±0.5 m (1.64 ft)

Angle Accuracy

±1°

Max. Detection Speed

80 km/h, continuous trace

Min. Detection Speed

0.72 km/h, continuous trace

Modulation Method

FMCW

Scan Frequency

20 Hz

Working Frequency

60 GHz–61 GHz

Supported Target Type

Human; vehicle

Transmission Power

< 20 dBm (100mW)

Camera

Image Sensor

1/1.8" CMOS

Pixel

4MP

Max. Resolution

2560 (H) × 1440 (V)

Electronic Shutter Speed

1/3 s–1/100000 s

Min. Illumination

0.0036 Lux @F1.6 (Color); 0.0036 Lux @F1.6 (B/W); 0 Lux (IR on)

S/N Ratio

> 56 dB

Illumination Distance

35 m (114.83 ft) (0°, visible human body shape)

Illuminator Number

4

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8 mm (equivalent focal distance of 1/2.7")

Max. Aperture

F1.6

Field of View

Horizontal: 104°; Vertical: 55°; Diagonal: 121°

Iris Control

Fixed

Close Focus Distance

0.2 m

Video

Video Compression

H.265; H.264; H.264H; H.264B

Smart Codec

H.264/H.265

Video Frame Rate

Main stream:
50 Hz: 25 fps (2560 × 1440); 25 fps (2048 × 1536); 25 fps (1920 × 1080); 25 fps (1280 × 960); 25 fps (1280 × 720)
60 Hz: 30 fps (2560 × 1440); 30 fps (2048 × 1536); 30 fps (1920 × 1080); 30 fps (1280 × 960); 30 fps (1280 × 720)

Sub stream:
50 Hz: 25 fps (704 × 576); 25 fps (352 × 288)
60 Hz: 30 fps (704 × 480); 30 fps (352 × 240)
Third stream:
50 Hz: 25 fps (1920 × 1080); 25 fps (1280 × 960);

25 fps (1280 × 720)
60 Hz: 30 fps (1920 × 1080); 30 fps (1280 × 960);

30 fps (1280 × 720)

Video Bit Rate

H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

102 dB

White Balance

Auto/manual/natural/street lamp/outdoor

Gain Control

Auto/manual

Noise Reduction

2D NR/3D NR

Default Bit Rate with Default Resolution

6144 Kbps (2560 × 1440)

Defog

Yes

Image Stabilization

Yes

LDC

Yes

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; intrusion; tripwire

Alarm Input

3

Alarm Output

2, support alarm linkage

Alarm Linkage

Snapshot/SD card recording/email

Network

Network Port

1 (RJ-45; support 10 M/100 M network data)

Network Protocol

IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x

Interoperability

ONVIF (Profile S); CGI; Imou

Storage

NAS; FTP; Micro SD card (128 G)

Browser

IE 7 and later
Chrome 45 and earlier
Firefox 46 and earlier

User/Host

20 (total bandwidth: 64 M)

SDK and API

Yes

Management Software

DSS

Function

Image Setting

Brightness; Contrast; Sharpness; Saturation; Gamma

OSD Overlay

Time; channel; location; custom

Record Mode

Manual record; scheduled record; alarm record;
Record priority: Manual > external > schedule

Default

Support one-click restoring

User Management

Up to 20

Security

Username and password; MAC address; HTTPS; IEEE 802.1x ; network access control

Region Management

Pre-warning zone; alarm zone; shield zone

Target Filtering

Yes, human/vehicle

Speed Filtering

Yes, 1–80 km/h
(Objects whose speeds are not within the target speed range will not trigger alarms)

Recognition Sensitivity

Yes, human, vehicle recognition sensitivity configurable

Radar Structuring

Yes, target track displayed on live view, including distance, angle, speed and type

Radar OSD Detection Overlay

Yes, 8 positions

Device Attitude

Yes, display pitch angle and roll angle

Protection Zone Mapping

Yes, draw on live view to define actual radar protection zone

Auto Calibration

Yes, automatically calibrate radar and image

Manual Calibration

Yes, manually calibrate radar and image

Power

Operating Voltage

12V DC (±30%); PoE (802.3at)

Power Supply

12V DC/POE

Power Consumption

Basic power consumption: 10W; Max. power consumption: 22W

Port

Terminal block

Port

SD Card

Yes

Indicator Light

Yes. Network indicator (yellow); operation indicator (red and green); power indicator (green)

Audio Input

1 × 3.5 mm port

Audio Output

1 × 3.5 mm port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Environment

Operating Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP66

Structure

Casing

Metal + plastic

Product Dimensions

160.0 mm × 194.4 mm × 160.0 mm

(6.30" × 7.65" × 6.30") (L × W × H)

Packaging Dimensions

277.0 mm × 274.0 mm × 224.0 mm

(10.91" × 10.79" × 8.82") (L × W × H)

Packaging Method

4 in one package

Net Weight

2.17 kg (4.78 lb)

Gross Weight

2.80 kg (6.17 lb)

Installation

Pole mount; wall mount

Bracket

PFA154

Power Adapter

Optional

Certifications

CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 62368-1

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Perimeter and open-area intrusion detection where rain, fog or darkness would degrade conventional motion detection.

Before you orderConfirm your recorder or platform supports radar-video integration and that the 60 m radar range and 35 m IR distance match your site layout before ordering.

01

Radar-Video Fusion

Combines 60 GHz radar detection with a 4MP image sensor so alarms can be verified visually instead of relying on motion alone.

02

Weather-Resistant Detection

The 60 GHz radar is designed to keep working through severe weather, helping reduce false alarms and missed events outdoors.

03

Target and Speed Filtering

Filters by human or vehicle targets and by speed range, so you can tune detection to the traffic that matters on your site.
