Home » Dahua PFR4K-D300 300m Security Radar 24GHz IP67 Radar Detector

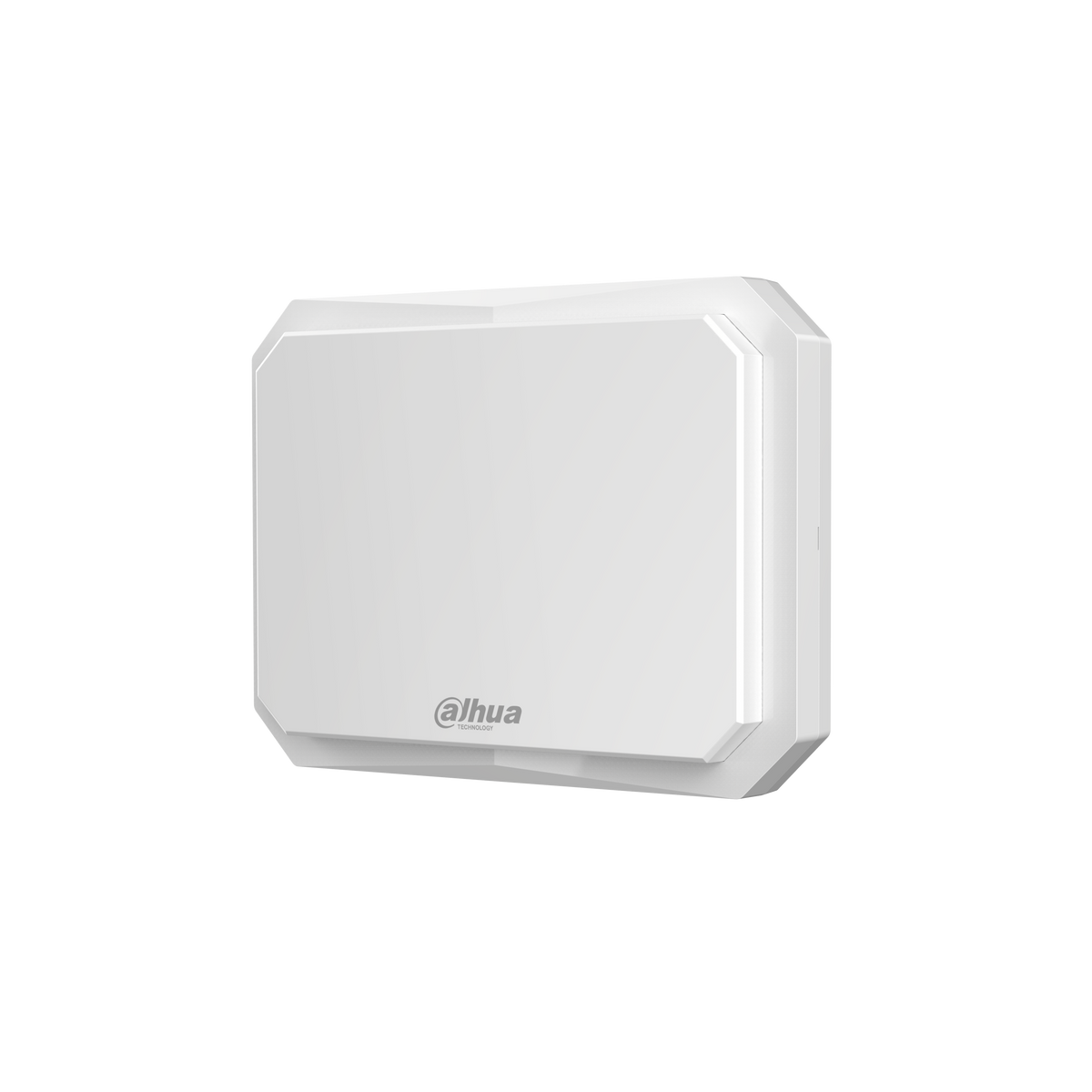

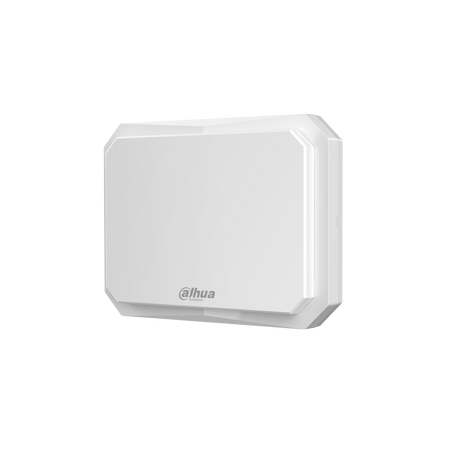

DAHUA PFR4K-D300 300m Security Radar
DAHUA PFR4K-D300 300m Security Radar
icctvzone

Dahua PFR4K-D300 300m Security Radar 24GHz IP67 Radar Detector

In stock
SKU: PFR4K-D300
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

PFR4K-D300

> 24/7 all-weather

> Wide-range detection

> High accuracy

> Target filtering

> Radar-PTZ linkage

> Front-end PTZ control

> Centralized management

> Smart tracking

> IP67/IK10

> CE RED


Product Data

Performance

Max. Number of Targets

32

Detection Distance

Human: 300.0 m (984.25 ft) Vehicle: 450.0 m (1476.38 ft)

Detection Angle

Horizontal: 90° Vertical: 13°

Max. Detection Speed

80 km/h, continuous trajectory

Min. Detection Speed

1.8 km/h, continuous trajectory

Distance Accuracy

± 1.5 m (± 4.92 ft)

Angle Accuracy

± 1°

Max. Number of Areas

10

Modulation Type

FMCW

Scan Frequency

8 Hz

Operating Frequency

24 GHz

Detection Target Type

Human and vehicle

Function

Radar+PTZ Smart Tracking

Supported on web manager

Track Mode

Tour, distance priority, and time priority

Region Setting

Alarm area, pre-warning area, and shield area

Target Filtering

Human and vehicle filtering

Record Mode

Manual record, scheduled record, and alarm record Record priority: Manual>Alarm>Scheduled

Restore to Factory Default

Restore to default settings with one click

Security

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

Positioning

GPS, Glonass

Map Encoding

Yes

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x

Interoperability

ONVIF Profile S&G, CGI

User Management

19

Storage

NAS; FTP; micro SD card (256 G)

Browser

IE: Versions later than IE7

Google: Versions earlier than Chrome45 Firefox: Versions earlier than Firefox46

Management Software

SmartPSS, DSS

Port

Alarm Input

1 channel (support 5V DC potential and 5mA current)

Alarm Output

5 channels (wet contact; support max 12V DC potential and max 300mA current)

Alarm Linkage

Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, electronic map displaying, and email sending

Alarm Event

Radar alarm, no SD card, insufficient SD card storage, SD card error, network disconnection, IP conflict, full disk, and illegal access

SD Card

Yes

Indicator Light

Network connection: Yellow

Running status: Red/Green Power: Green

Power

Power Supply

DC 12V (±30%), AC 24V (±30%), PoE (802.3at)

Power Consumption

Basic: 20W

Max.: 24W

Environment

Operating Temperature

–40°C to +65°C (–40°F to +149°F)

Operating Humidity

≤95% (RH)

Storage Temperature

–40°C to +80°C (–40°F to +176°F)

Storage Humidity

≤95% (RH)

Protection Grade

IP67/IK10

ESD

Contact discharge: 6k Air discharge: 8k

Surge Protection Grade

Common mode: ± 6kV Differential Mode: ± 2kV

General

Product Color

White

Casing

ADC12+PC

Product Dimensions

244.9 mm × 184.9 mm × 61.2 mm

(9.64" × 7.28" × 2.41")

Packaging Dimensions

328.0 mm × 146.0 mm × 278.0 mm

(12.90" × 5.75" × 10.95")

Net Weight

2.0 kg (4.41 lb)

Gross Weight

3.2 kg (7.06 lb)

Installation Method

Wall mount, ceiling mount, pole mount

Installation Height

3.0 m to 5.0 m (3.0 m recommended)

(9.84 ft to 16.40 ft) (9.84 ft recommended)

Installation Position

Install separately

Certification

Certifications

CE: EN 50385; EN 55032; EN 55024; EN 55035;

EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1
CE RED: EN 300440

Package Information

Security radar

1

Waterproof connector for network cable

1

Wrench

1

Quick start guide

1

Quality certificate

1

Legal and regulatory information

1

QR code label

1

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Wide-area perimeter and open-site intrusion detection where human targets must be tracked up to 300 m and vehicles up to 450 m.

Before you orderConfirm your PTZ model and recorder support ONVIF Profile S&G and radar-PTZ linkage, and check current lead time before ordering.
01
Long-Range Detection

Detects human targets up to 300 m and vehicles up to 450 m, giving wide sites early warning before intruders reach a building.

02
Radar-PTZ Linkage

Pairs radar detection with PTZ smart tracking so cameras can follow and record targets automatically instead of relying on fixed views.

03
All-Weather Housing

IP67 and IK10 ratings support reliable 24/7 outdoor operation in rain, dust and physical impact conditions.
