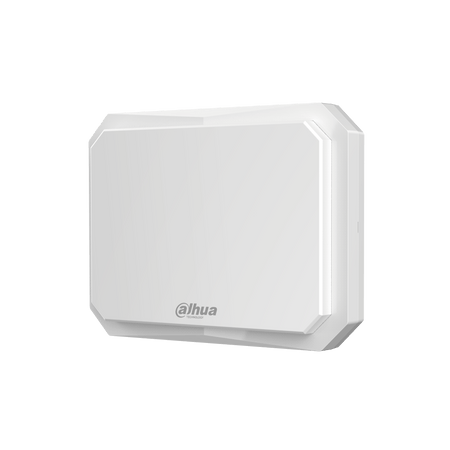

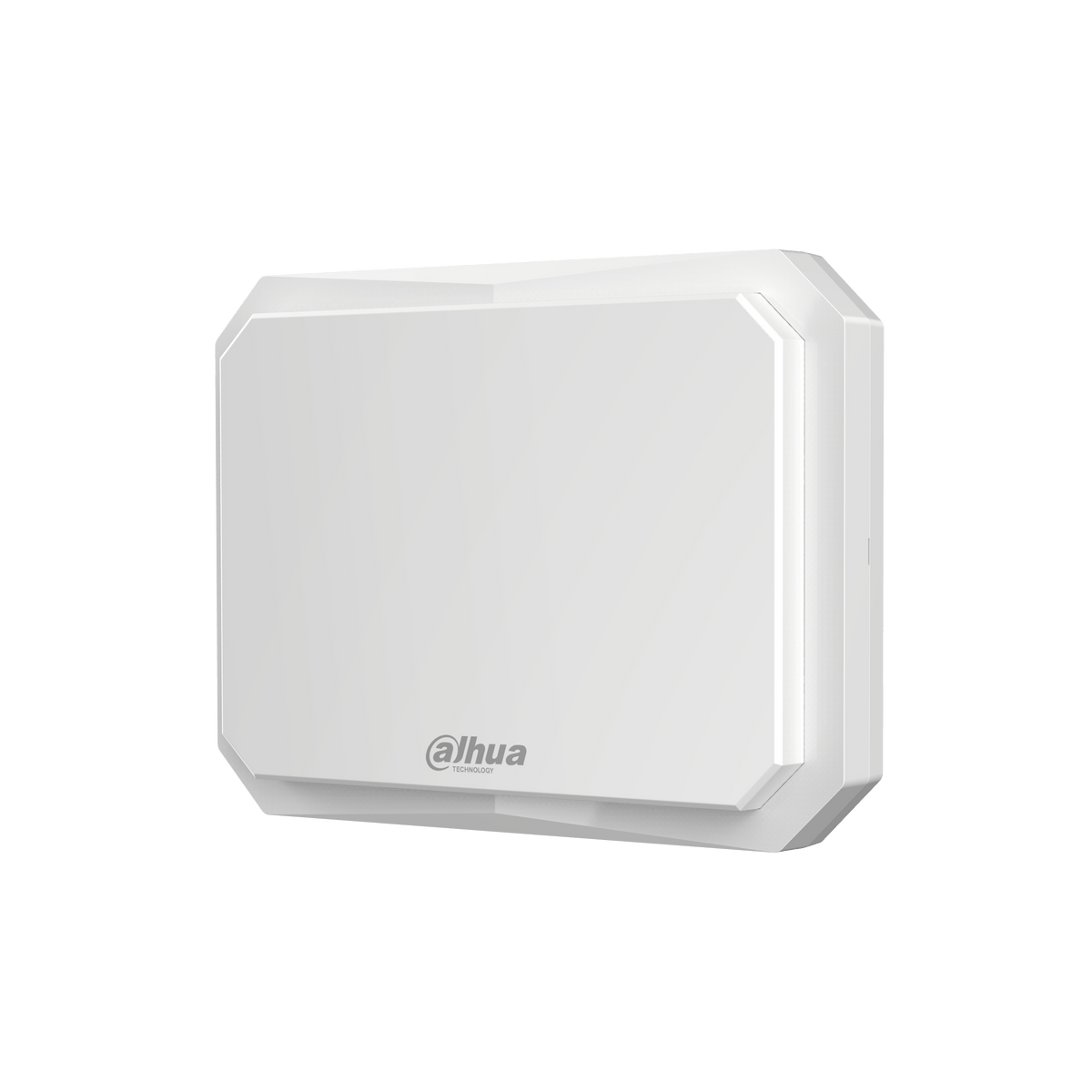

DAHUA PFR4K-B240 240m Perimeter Security Radar
DAHUA PFR4K-B240 240m Perimeter Security Radar
icctvzone

Dahua PFR4K-B240 240m Perimeter Security Radar

In stock
SKU: PFR4K-B240
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

PFR4K-B240

240m Perimeter Security Radar

> 24/7 all-weather
> Crossing detection
> High accuracy
> Target filtering
> Radar-PTZ linkage
> Front-end PTZ control
> Centralized management
> Smart tracking
> IP67; IK10
> CE RED


Product Data

Performance

Max. Target Number

32

Detection Distance

Radial 300 m (984.25 ft) (human, 0°)

Cross 240 m (787.40 ft) (human, walking/running)

Cross 150 m (492.12 ft) (human, crouch walking/crawling)

Detection Angle

Horizontal: 20°
Vertical: 13°

Max. Detection Speed

Radial: 80 km/h
Crossing: 36 km/h

Min. Detection Speed

0.18 km/h

Distance Accuracy

± 1.5 m (± 4.92 ft)

Angle Accuracy

± 1°

Max. Area Number

10

Modulation Type

FMCW

Scan Frequency

8 Hz

Operating Frequency

24 GHz

Detection Target Type

Human and vehicle

Function

Radar+PTZ Smart Tracking

Supported on web manager

Track Mode

Tour, distance priority, and time priority

Region Setting

Intrusion: Alarm area, pre-warning area, and shield area
Tripwire: Alarm area

Target Filtering

Human and vehicle filtering

Record Mode

Manual record, scheduled record, and alarm record
Record priority: Manual > Alarm > Scheduled

Restore Default Settings

Restore default settings with one click

Security Mode

Authorized user name and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

Positioning

GPS, Glonass

Map Encoding

Yes

Network

Ethernet

RJ-45 (10 Base-T/100 Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x

Interoperability

ONVIF Profile S&G, CGI

User/Host

19

Storage

NAS; local PC; micro SD card (256 G)

Browser

IE: Versions later than IE7
Google: Versions earlier than Chrome45
Firefox: Versions earlier than Firefox46

Matched Platform

DSS Pro

Port

Alarm Input

1 channel (support 5V DC potential and 5mA current)

Alarm Output

5 channels (wet contact; support max 12V DC potential and max 300mA current )

Alarm Linkage

Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, and email sending

Alarm Event

Radar alarm, no SD card, SD card capacity warning, SD card error, network disconnection, IP conflict, full disk, and illegal access

SD Card

Yes

Indicator Light

Network connection: Yellow
Running status: Red/Green
Power: Green

Power

Power Supply

12V DC (±30%), 24V AC (±30%), PoE (802.3at)

Power Consumption

Basic: 16 W
Max.: 20 W

Environment

Operating Temperature

–40°C to +65°C (–40°F to +149°F)

Operating Humidity

≤95% (RH)

Storage Temperature

–40°C to +80°C (–40°F to +176°F)

Storage Humidity

≤ 95% (RH)

Ingress Protection

IP67; IK10

ESD

Contact discharge: 6k
Air discharge: 8k

Surge Protection Grade

Common mode: ± 6kV
Differential mode: ± 2kV

Structure

Color

White

Casing

ADC12+PC

Product Dimensions

244.9 mm × 184.9 mm × 61.2 mm (9.64" × 7.28" × 2.41")

Packaging Dimensions

328 mm × 146 mm × 278 mm (12.90" × 5.75" × 10.95")

Net Weight

2.84 kg (6.26 lb)

Gross Weight

3.40 kg (7.49 lb)

Installation Method

Wall mount; ceiling mount; pole mount

Installation Height

3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended)

Installation Position

Install separately

Certification

Certifications

CE:EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1
CE RED: EN 300440

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Round-the-clock perimeter intrusion detection across open outdoor sites where a radar can cue PTZ cameras for smart tracking.

Before you orderConfirm that your PTZ model and recorder support radar-PTZ linkage and that the required quantity and lead time meet your project schedule.
01
All-Weather 24/7 Watch

Rated IP67 and IK10, it is built to keep monitoring perimeter zones through harsh weather and physical impact.

02
Accurate Target Detection

FMCW detection with distance accuracy of ±1.5 m and angle accuracy of ±1° helps pinpoint intrusions across the monitored area.

03
Radar-PTZ Smart Tracking

Link the radar with a compatible PTZ so detected targets can be tracked automatically using tour, distance priority, or time priority modes.
