PFM930I-6N

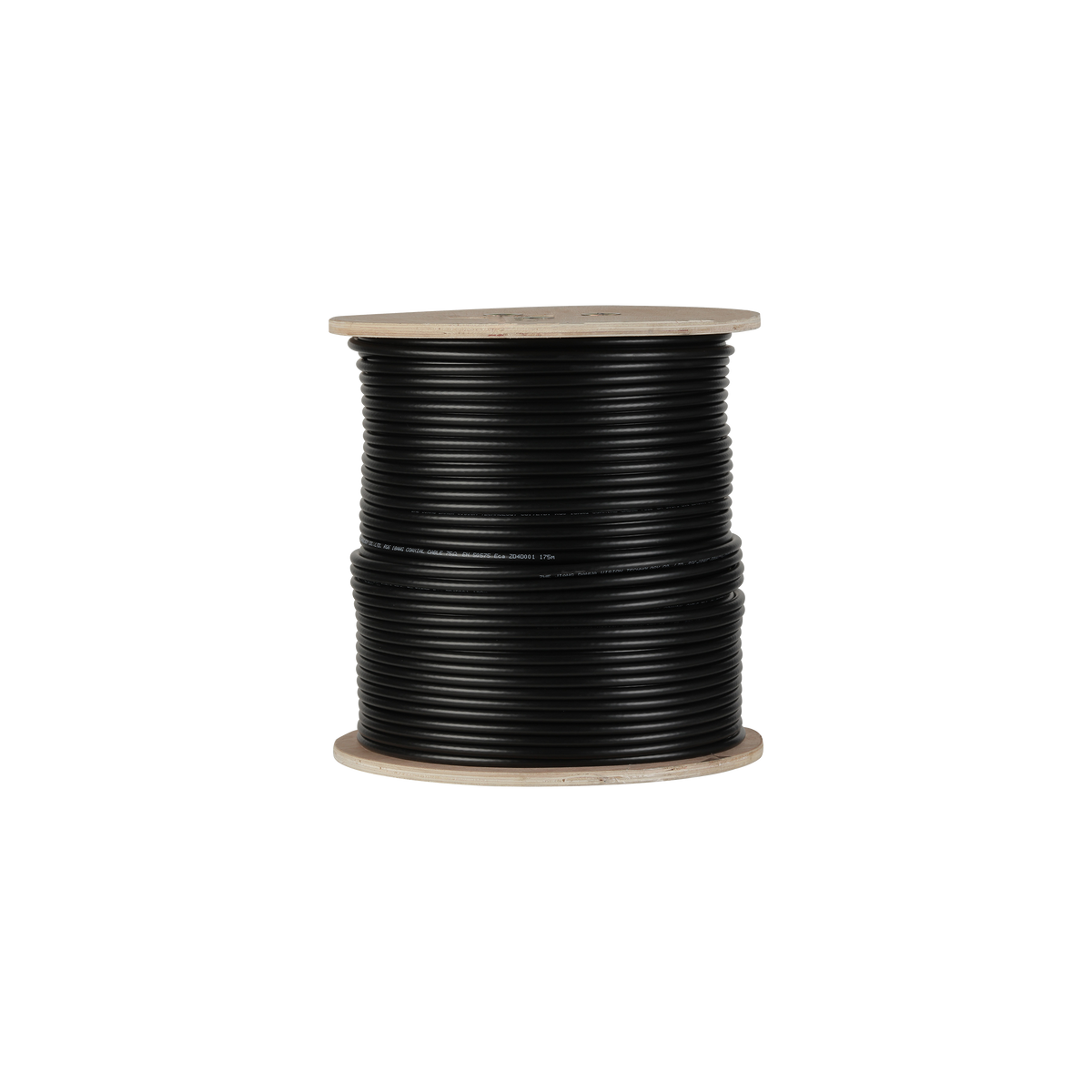

200m RG6 Coaxial Cable
>Professional quality cable for use with most CCTV camera systems;
>Over 1km long transmission distance for 720P;
>Supplied on wooden reels for easy storage and installation;
>Environmentally-friendly outer sheath, meet the CPR E class;
Product Data
| Model | DH-PFM930I-6N | |
| Conductor | Material | OFC |
| Wire gauge | 18AWG (1.02mm) | |
| Insulation | Material | FPE |
| Diameter | 4.80mm0.20mm | |
| Tape | Material | Single-sided aluminum foil |
| thickness | 0.026mm | |
| Braid | Braiding Material | Al-mg wire (Aluminum magnesium alloy wire) |
| Braiding Structure | 0.12mm*64(16*4) | |
| Jacket | Material | PVC, meet the requirement of CPR E class |
| Min. average thickness | 0.78mm | |
| Diameter | 6.9mm±0.2mm | |
| Color | Black | |
| Length | 200m (656.17ft) | |
| Mark spacing | 1000mm | |
| Impedance | 75Ω±3Ω | |
| General | Working temperature | -20℃~+70℃(-4℉~+158℉) |
| Storage temperature | -40℃~+80℃(-40℉~+176℉) | |
| N.W. | 8.0kg(17.64lb) | |
| Weight(with wooden spool) | 8.3kg(18.3lb) | |
| Packaging dimension | Ф280mm*240mm(Ф11.02”x9.45”) |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Wiring analog and 720P CCTV camera installations that need a 200m RG6 coax run on a wooden spool.
One 200m wooden spool covers extended camera-to-recorder cable routes with fewer joins.
75Ω±3Ω impedance with OFC 18AWG conductor and FPE insulation supports dependable CCTV signal transfer.
Aluminum foil tape plus aluminum-magnesium braid helps reduce interference along the cable run.
