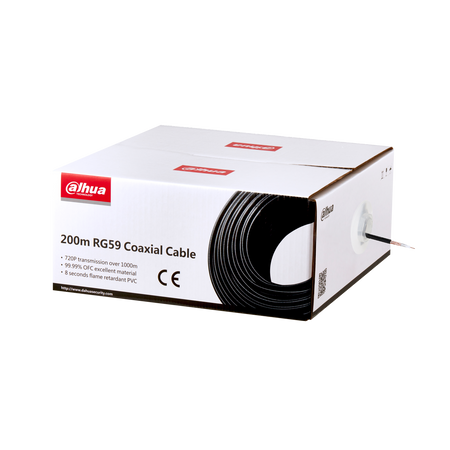

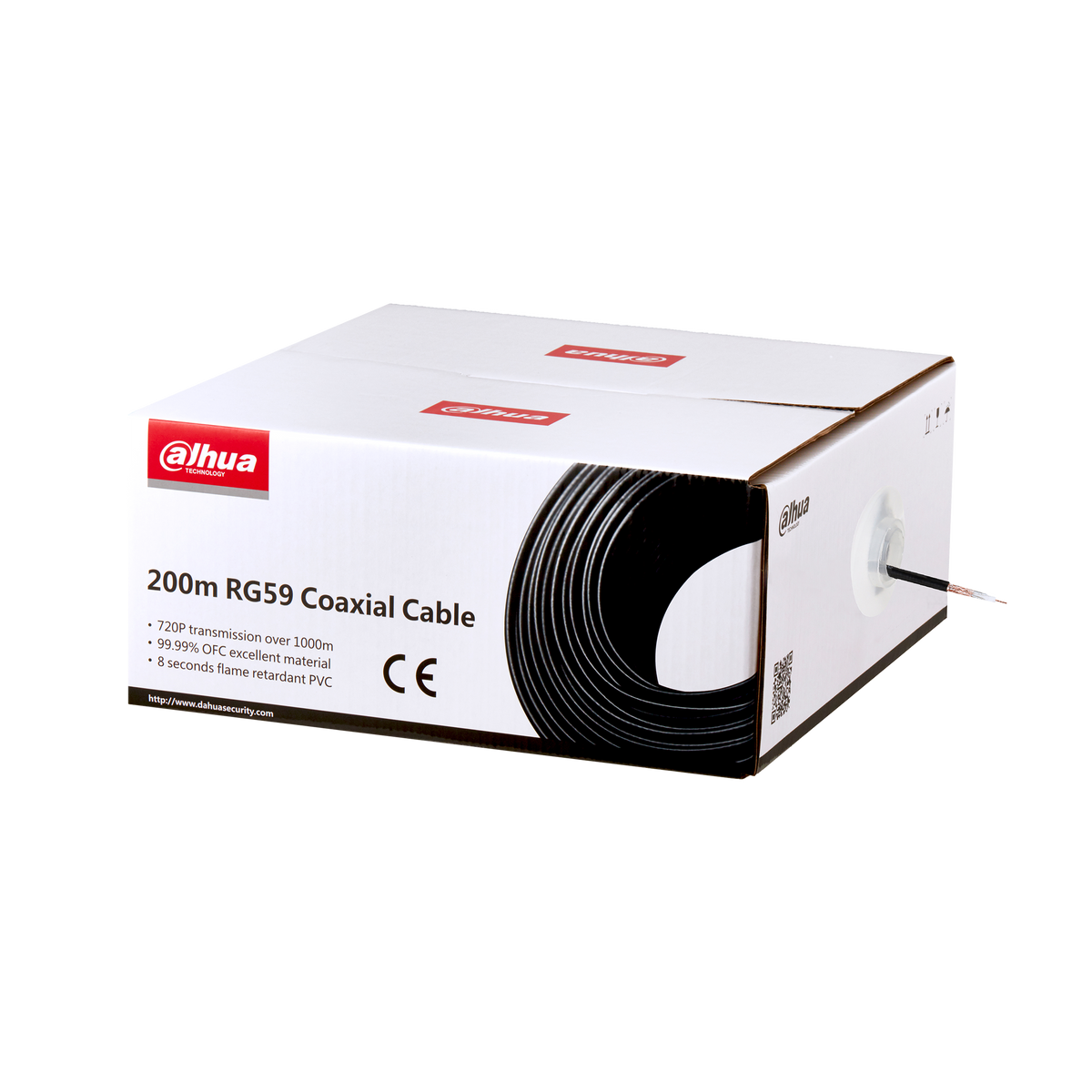

Dahua PFM930-59N 200m RG59 Coaxial Cable 75Ω CCTV Cabling
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM930-59N
200m RG59 Coaxial Cable
> Over 1km long transmission distance for 720P
> 99.99% OFC(oxygen free copper) excellent material
> Cable sheath flame retardant for 8 seconds
Product Data
| Model | DH-PFM930-59N | |
| Conductor | Material | OFC(oxygen free copper) |
| Wire gauge | 20AWG(0.8mm)(0.031”) | |
| Insulation | Material | FPE |
| Diameter | 3.7mm0.05mm(0.15”0.002”) | |
| Tape | Material | Aluminum foil |
| thickness | 0.04mm(0.0016”) | |
| Braid | Braiding material | Copper clad aluminum |
| Braiding structure | 0.12mm(0.0047”)*64(16*4) | |
| Jacket | Material | PVC |
| Min. average thickness | 0.9mm(0.035”) | |
| Diameter | 6.1mm±0.2mm(0.24”0.008”) | |
| Color | Black | |
| Length | 200m (656.17ft) | |
| Mark spacing | 1m(3.38ft) | |
| Impedance | 75Ω±2Ω | |
| General | Working temperature | -20℃~+70℃(-4℉~+158℉) |
| Storage temperature | -40℃~+80℃(-40℉~+176℉) | |
| Weight | 6.7kg(14.77lb) | |
| Weight(with packaging) | 7.2kg(15.87lb) | |
| Packaging dimension | 321mm*321mm*143mm(12.64”x12.64”x5.63”) | |
| Protective housing dimension | 662mm*337mm*467mm(26.06”x13.27”x18.39”) |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Long 720P CCTV camera runs that need a single 200m reel of 75Ω RG59 coaxial cable.
One 200m reel covers long camera runs with 1m marking spacing so you can measure and cut accurately.
The oxygen-free copper conductor supports reliable signal transfer across extended coaxial runs.
The PVC sheath is flame retardant for 8 seconds, adding a safety margin in cable routes.
