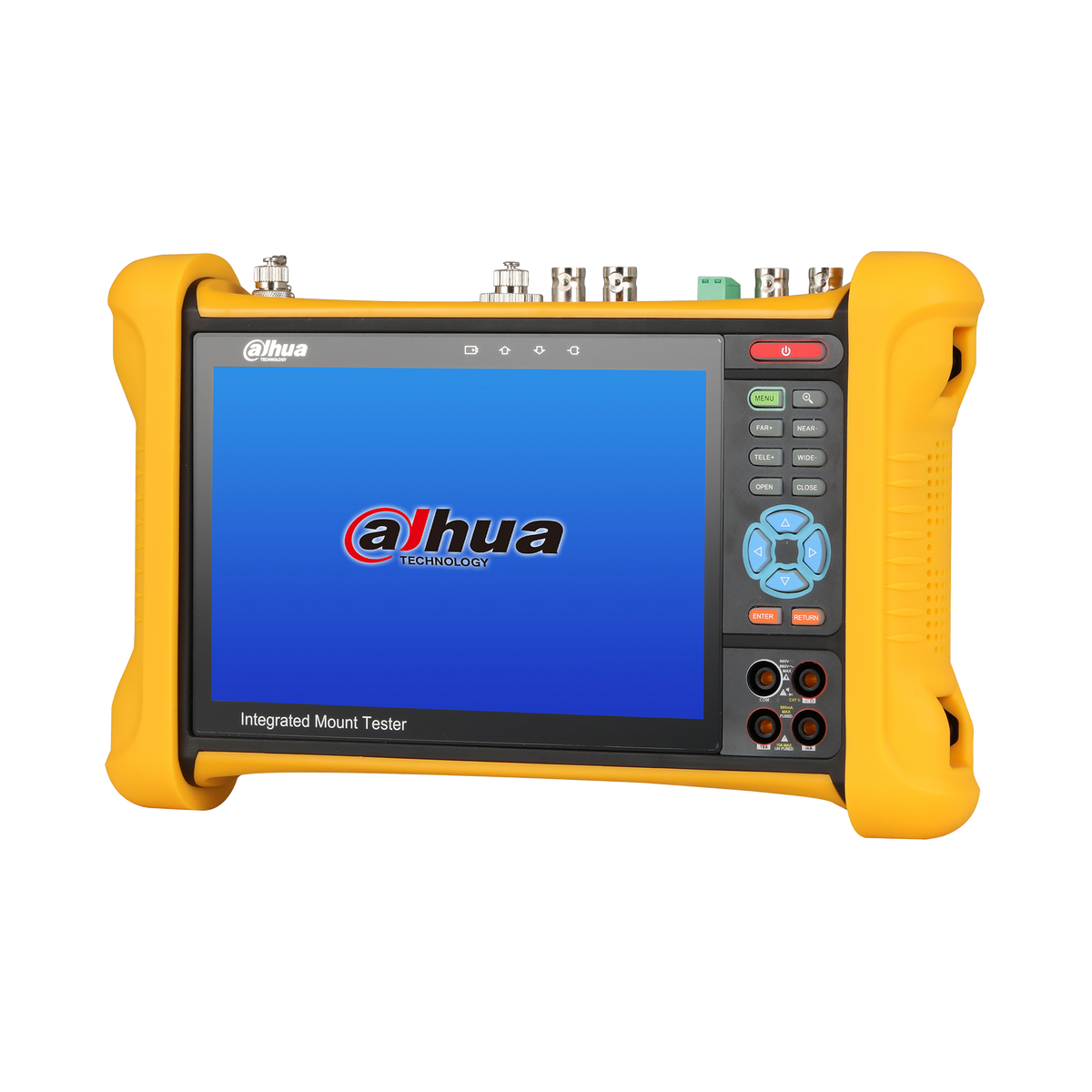

Dahua PFM906 Integrated Mount Tester 7" IPS Touchscreen Camera Tester
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM906
> 7” IPS HD retina capacitive touch screen(1920*1200);
> Support IP, HDCVI/AHD/TVI/CVBS, SDI;
> Support HDMI Input/Output;
> Support PoE, DC12V 2A and USB5V 2A power out;
> Build-in 37Wh big capacity polymer lithium ion battery , which can last 10 hours for normal use;
> Support TDR(network cable/coaxial cable), UTP cable tester and hunting, optical cable VFL;
> Support digital multi-meter function;
> Support optical power meter test function.
Product Data
|
Model |
DH-PFM906 |
|
Physical Port |
|
| Network port |
3* 10/100M RJ45(LAN/PSE, PD, UTP/Scan) |
| BNC port |
2* video in(SDI, HDCVI/TVI/AHD/CVBS), 1* video out |
| Function port |
1* TDR, 1* OPM, 1* VLS, 1* RS485, 1* DC12V in(charge), 1* HDMI in, 1* HDMI out, 1* audio in, 1* audio out, 1* Micro SD |
|
IPC Test |
|
| IP camera type |
ONVIF (with PTZ control) |
| DAHUA test tool |
Design for Dahua Camera image test, modify IP, user name and password parameters etc. |
| IP Camera test |
Support rapid ONVIF, auto-scan the whole network segment IP, auto log in to display the camera image, auto-modify the tester‘s IP to the same network segment with the scanned camera's IP; Display image from the 4K camera by main stream; Full screen preview and 5x digital zoom, snapshot, record video, photo view and video play back |
|
Analog Video Test |
|
| Format |
HDCVI/ AHD/ TVI/ CVBS |
| HDCVI camera test |
1-ch BNC in, highest-resolution: support 1280x720P 25fps, 30fps, 50fps, 60fps/ 1920x1080P 25fps, 30fps/ 2560x1440P 25fps, 30fps |
| TVI camera test |
1-ch BNC in, highest-resolution: support 1280x720P 25fps, 30fps, 50fps, 60fps/ 1920x1080P 25fps, 30fps, 50fps, 60fps/ 2048x1536 18fps |
| AHD camera test |
1-ch BNC in, highest-resolution: Support 1280x720P 25fps, 30fps/ 1920x1080P 25fps, 30fps/ 2560x1440P 15fps, 25 fps, 30 fps |
| CVBS camera test |
1-ch BNC in, 1-ch BNC out, support PAL/NTSC format(auto adapt) |
| Camera test |
Real time video, coaxial PTZ control, RS485 control, audio test, full screen preview and 5x digital zoom, snapshot, record video, photo view and video play back |
|
SDI Test |
|
| SDI video test |
1-ch BNC in, support resolution60fps 720p, 60fps 1080p, 60fps 1080i IPC tester’s HDMI output port can be used as SDI to HDMI converter, output HD SDI image to HD TV monitor. |
|
HDMI Display |
|
| HDMI in/out |
HDMI in, support 720x480p, 720x576p, 1280x720p, 1920x1080p, 1024x768p, 1280x1024p, 1280x900p, 1440x900p HDMI out, support 1920x1080p |
|
PTZ Control |
|
| Protocol |
Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc. |
| Baud rate |
600~115200bps |
|
Cable Tester |
|
| Network cable |
TDR, cable search, UTP cable tester |
| Coaxial cable |
TDR, analog video generator |
| Optical cable |
VFL(visual fault locator) |
|
Tools |
|
| Network tool |
IP address scan, Ping test, bandwidth test, port flashing, DHCP server, etc. |
| DMM (digital multi-meter) |
AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing. Testing speed: 3 times/ seconds, Data range -6600～+6600. |
| OPM(optical power meter) |
Calibrated Wavelength(nm) :850/1300/1310/1490/1550/1625nm Power range(dBm) :-70～+10dBm |
| Data monitor |
Captures and analyzes the command data from controlling device via RS485, also can send hexadecimal |
| Flashlight |
Press the LED On/Off button to use the LED flashlight |
| PoE&Power info |
Measures PoE switch voltage and displays pin configuration |
| Audio recorder |
Save audio message and support to review |
| Notepad |
Used to record the important testing results |
| Calculator |
With calculating function |
|
System Information |
|
| Screen |
7 inch capacitive touch screen with retina display, 1920x1200 resolution |
| Wi-Fi |
Built in 2.4G Wi-Fi module, max. speed 150M, allows it to receive a wireless network and view IP cameras |
| LED flashlight |
1*35lm LED light |
| Storage capacity |
Build-in 8G, also support external max. 32GB SD card |
| Operation setup |
Supporting a variety of languages, such as English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese, etc. |
| Auto power off |
1~30 minutes |
| Theme |
Self-define icons, desktop and application interface background, modify interface sliding effect |
| Upgrade |
Support local update via the SD card and online update on the internet |
|
Power |
|
| Charger |
DC 12V 2A |
| Battery |
7.4V lithium polymer battery, 5000mAh, 37Wh |
| Rechargeable |
After charging 5~6 hours, normal working time 10 hours |
| PoE power out |
DC48V PoE+ power out, max |
| DC12V power out |
Max. DC12V 2A out |
| USB5V power out |
Max. DC5V 2A out |
| Other |
|
| Working temperature |
-10℃~+55℃(+14℉~+131℉) |
| Working humidity |
30%~90% |
| Casing |
Plastics |
| Dimensions |
270mmx160mmx46mm(10.63”x6.3”x1.81”) |
| Net weight |
0.95kg(2.09lb) |
| Packaging dimensions |
313mmx286mmx96mm(12.32”x11.26”x3.78“) |
| Gross weight |
2.1Kg(4.63lb) |
|
Certifications |
|
| Certifications |
CE/FCC |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Field installation and troubleshooting of IP, HDCVI, AHD, TVI, CVBS and SDI cameras with one portable tester.
Test IP, HDCVI, AHD, TVI, CVBS and SDI cameras from a single handheld unit to simplify site diagnostics.
The 7-inch IPS capacitive touchscreen supports HDMI input and output for clear on-site viewing and image review.
A 37Wh polymer battery supports up to 10 hours of normal use, with TDR, UTP cable testing, VFL and optical power meter functions.
