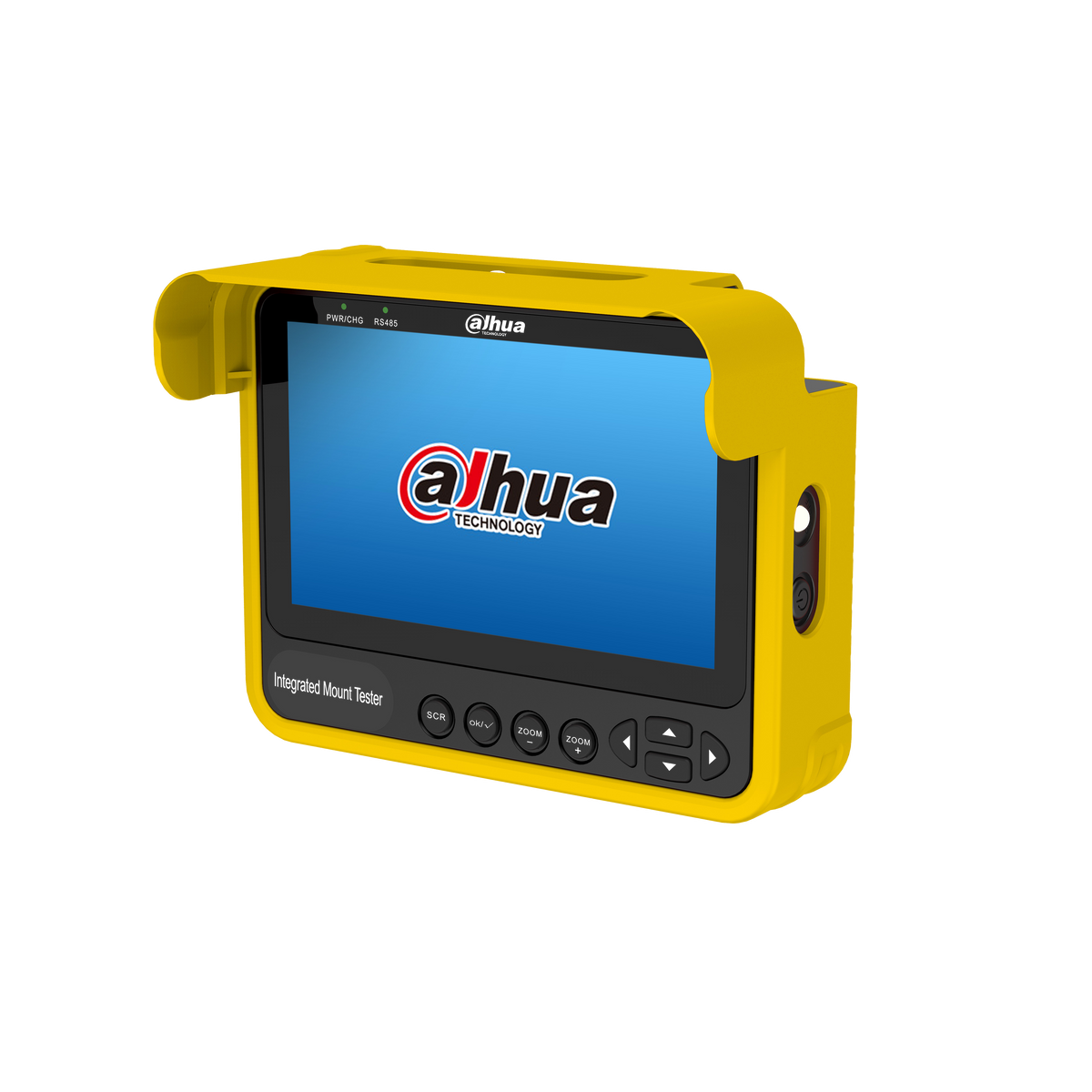

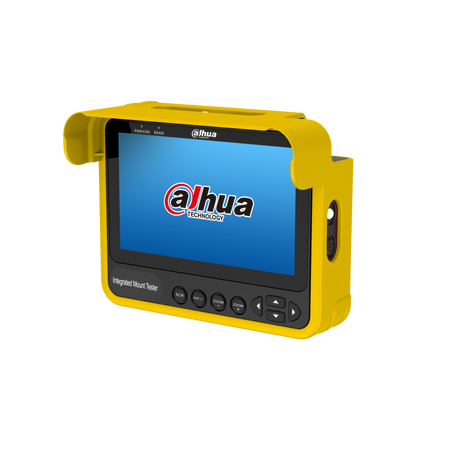

DAHUA PFM904 Integrated Mount Tester
DAHUA PFM904 Integrated Mount Tester
icctvzone

Dahua PFM904 Integrated Mount Tester HDCVI/AHD/TVI/CVBS Camera Tester

In stock
SKU: PFM904
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

PFM904

> HDCVI/AHD/TVI/CVBS video display control

> 12V/1A DC power supply for the camera

> Support RS–485 control

> Support audio test

> Charge through USB connector

> Compact and portable, designed with a removable wrist strap

> Replaceable 18650 lithium ion battery


Product Data

System

Operation System

Linux

Language

Multi-language interface

Operation Mode

Keyboard

Auto Standby/Shutdown

Yes

Keyboard Sound

Enable/disable

Screen

4.3" TFT screen, 480 × 272 resolution

Keyboard

Controlling keyboard: 8 keys

Others: power button

LED Indicator Light

3* 35lm lights

Update

Local update

Analog Video Test

Format

HDCVI; HDTVI; AHD; CVBS (NTSC; PAL)

Resolution

HDCVI:

1MP: 1080 × 720@25/30/50/60 fps, 2MP: 1920 × 1080@25/30 fps, 4MP: 2560 × 1440@25/30 fps,

5MP: 2880 × 1620@25 fps, 5MP: 2592 × 1944@20 fps, 6MP: 2880 × 1920@20 fps, 8MP: 3840 × 2160@15 fps

HDTVI:

1MP: 1080 × 720@25/30 fps, 2MP: 1920 × 1080@25 fps/30 fps, 4MP: 2560 × 1440@25/30 fps,

5MP: 2592 × 1944@20 fps

AHD:

1MP: 1080 × 720@25/30/50/60 fps, 2MP: 1920 × 1080@25/30 fps, 4MP: 2560 × 1440@25/30 fps,

5MP: 2592 × 1944@20 fps

CVBS:

PAL: 720 × 576@25 fps, NTSC: 720 × 480@30 fps

Function Control

OSD menu display; PTZ

Video Display

Live view

RS–485 Control

Communication Protocol

More than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan

Baud Rate

150 bps; 300 bps; 600 bps; 1200 bps; 2400 bps; 4800 bps; 9600 bps; 19200 bps

Protection

ESD

Air discharge: ±8KV

Contact discharge: ±6KV

Others

Audio Test

1 channel audio input test

Camera Power Supply

12V/1A DC power output to the camera

Certifications

Certifications

CE: EN 55032
FCC: FCC Part 15 Subpart B

Port

Power

1 power out, 12V/1A DC

Audio

1 audio input

USB

1 USB micro-B, charging/data

RS–485

1

Power

Charging

Micro USB 5V/1A

Battery

2* 18650 lithium iron batteries, up to 14.8Wh, working about 8 hours

Environment

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

30%–95% (RH)

Structure

Appearance Color

Yellow

Dimensions

125.0 mm × 100.0 mm × 65.0 mm (4.92" × 3.94"× 2.56") (L × W × H)

Net Weight

0.34 kg (0.75 lb)

Gross Weight

0.74 kg (1.63 lb)

Package Information

Integrated Mount Tester

1

18650 Lithium Ion Battery

2

Coaxial Cable

1

USB Cable

1

RS–485 Cable

1

Power Cord

1

Audio Cable

1

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Field installation and troubleshooting of HDCVI, AHD, TVI and CVBS cameras where technicians need live video, PTZ control and camera power in one handheld unit.

Before you orderConfirm the tester's supported video formats and RS-485 protocol match your cameras, and check whether a replaceable 18650 battery is included before ordering.
01
Multi-Format Video Test

Displays HDCVI, HDTVI, AHD and CVBS feeds on a 4.3-inch TFT screen so installers can verify camera output on site.

02
Built-In Camera Power

Supplies 12V/1A DC to the camera under test, reducing the need to carry a separate power source during setup.

03
RS-485 PTZ Control

Supports more than 30 protocols including Pelco-D/P with selectable baud rates for controlling compatible PTZ cameras.
