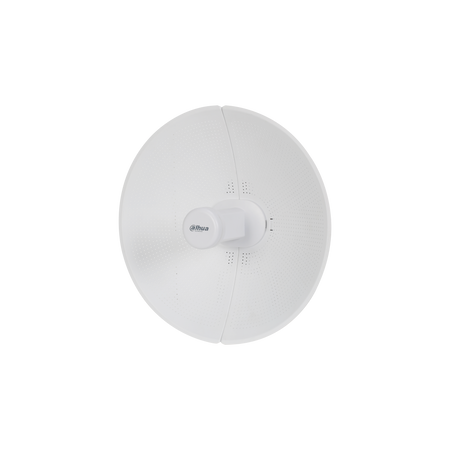

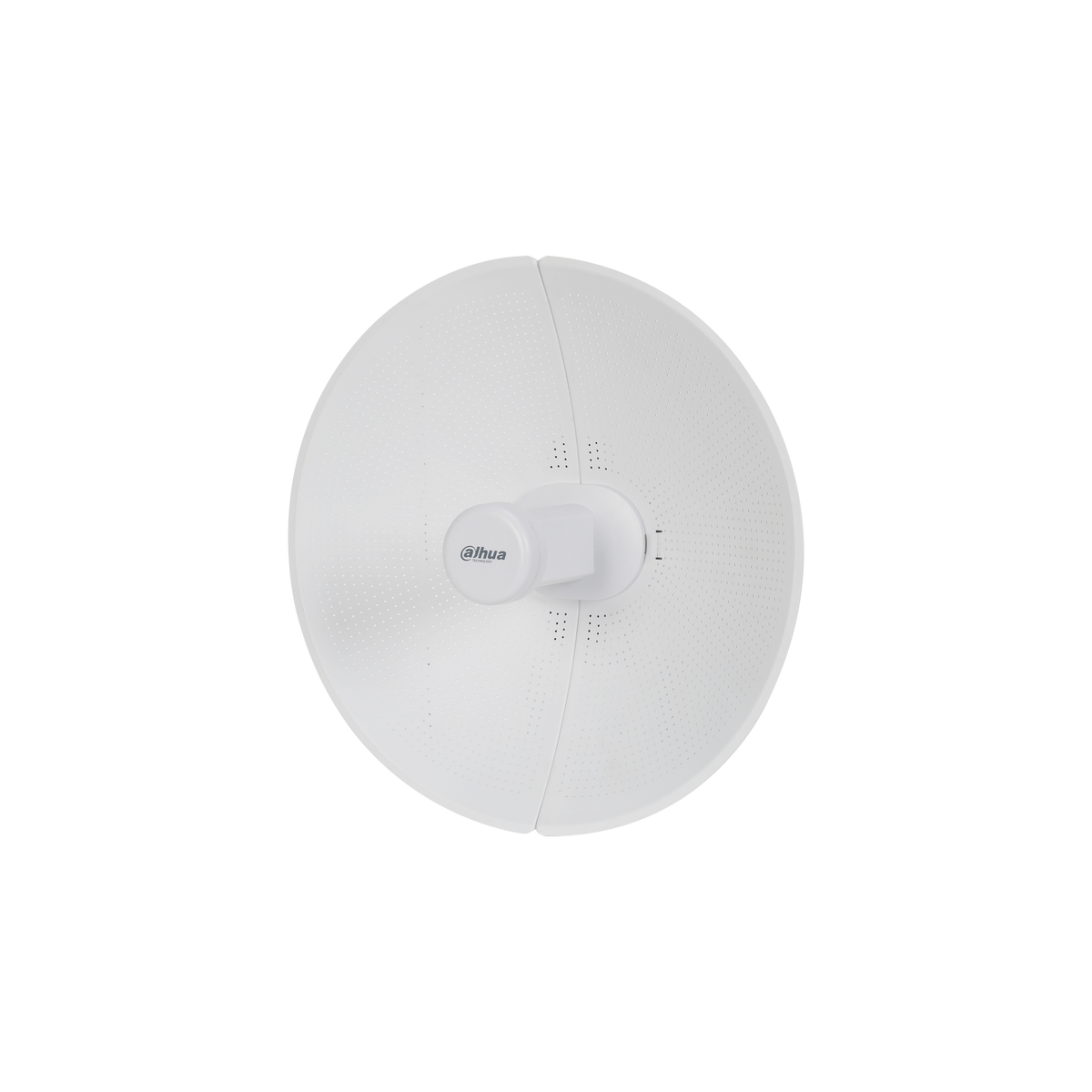

Dahua PFM886-15 Outdoor Long Range 5G Wireless Bridge
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM886-15
Outdoor Long Range 5G Wireless Bridge
>867Mbps in theory
>Supports 5 working mode: Access Point, Client, WDS Access Point, WDS Client, WDS Repeater
>“Back to back” connection enables multiple links using multiple devices, which suits outdoor complicated terrain better
>Supports Point-to-Point wireless transmission
>TDMA technology best utilizes the bandwidth to support Point-to-Multi-Point wireless transmission
>Supports PoE power input
>Water-proof and ultraviolet-proof enclosure ensures stable performance in outdoor environment
>Supports management by web and Access Controller
Product Data
|
Model |
DH-PFM886-15 |
|
Wireless Features |
|
| Wireless Standard |
IEEE802.11 a/n/ac |
| Working Frequency |
5745~5825MHz (support frequency to extend, extended range: 4920~6100MHz) |
| Wireless Speed |
867Mbps |
| Modulation Mode |
OFDM |
| Antenna |
23dBi |
| Output Power |
27dBm (max) |
| Receiving Sensitivity |
11a： 6Mbps -91 dBm 54 Mbps -72dBm 11n： MCS0 -85 dBm MCS7 -67dBm 11ac：MCS0 -85 dBm MCS9 -60dBm |
| Transmission Distance |
≤15km |
| Wireless Direction Angle |
Horizontal 10°, vertical 10° |
|
Hardware |
|
| Power |
1*PoE RJ45 (PoE input via PoE switch or PoE adapter) |
| Power Consumption |
≤25W |
| Ethernet Port |
1×10/100M/1000MBase-TX (Cat. 5/5E, RJ-45) |
| Indicator Light |
3×Link Quality |
| Working Temperature |
-30℃～+70℃ |
| Storage Temperature |
-40℃～+85℃ |
| Working Humidity |
5%～95%RH(no condensation) |
| Equipment Dimension |
240mmⅹØ373mm |
| Equipment Weight |
0.94kg |
| Protection Level |
IP66 |
|
Software |
|
| Encryption Type |
802.1x/WPA-PSK/WPA2-PSK |
| Network Mode |
Route/Network Bridge |
| Working Mode |
Access Point/Client/WDS AP/WDS client/WDS Repeater |
| Security Mechanism |
IP/MAC address filtering, hide network name |
| Network Protocol |
TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP |
| TDMA Enhancement |
Support |
| Auto ACK Timing Adjustment |
Support |
| Management and Log |
NTP，Syslog，Telnet，AC，SNMP |
| Webpage Configuration Management |
Web, SNMP, Access Controller |
| Firmware Update |
Web, Access Controller |
| Bandwidth Flexible Configuration |
10/20/40/80MHz |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Extending surveillance networks across long outdoor distances where cabling is impractical.
Reaches transmission distances up to 15km, helping connect distant camera sites without trenching cable.
Five working modes plus TDMA support let you build point-to-point or point-to-multipoint links to suit complex terrain.
A water-proof and ultraviolet-proof enclosure keeps performance stable through harsh outdoor conditions.
