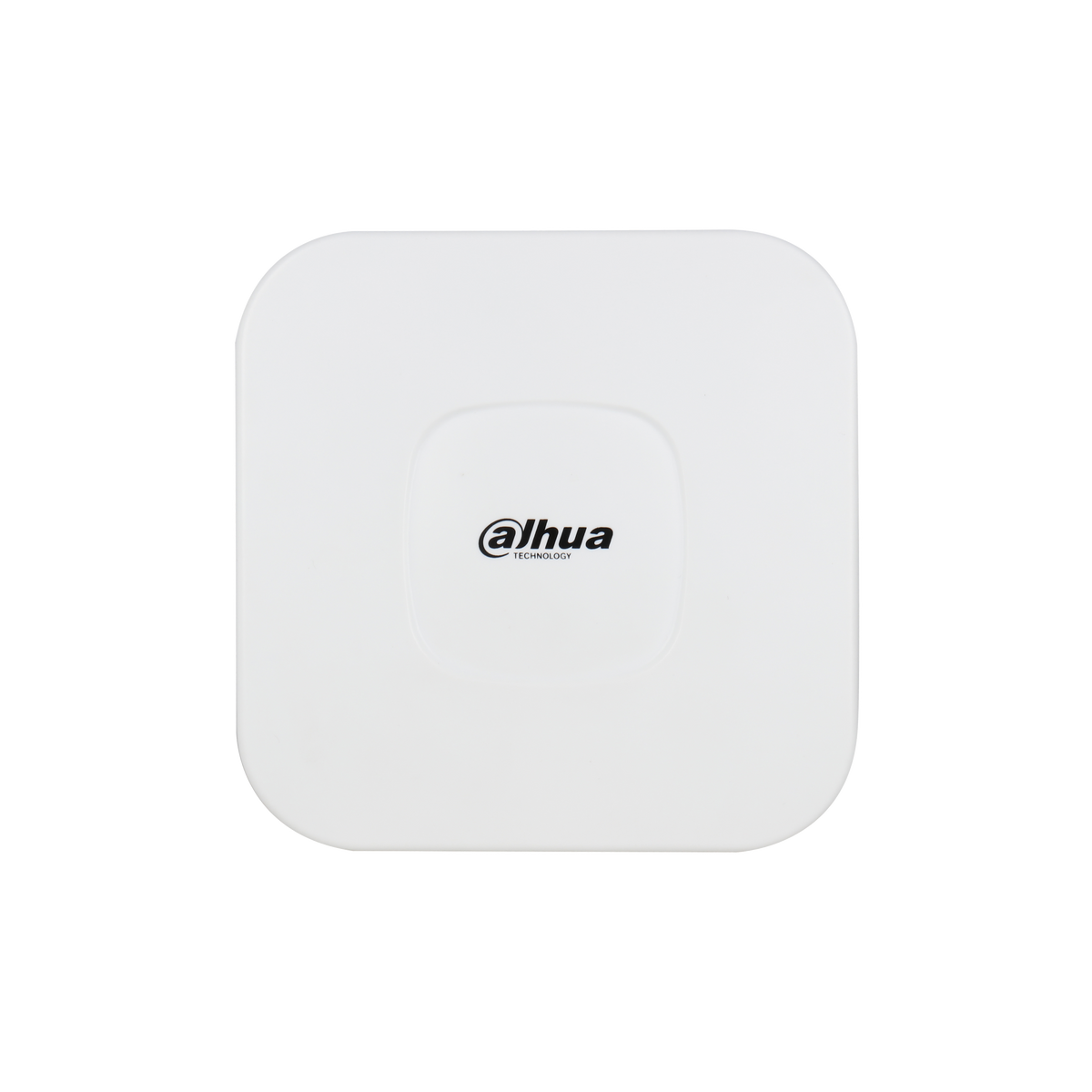

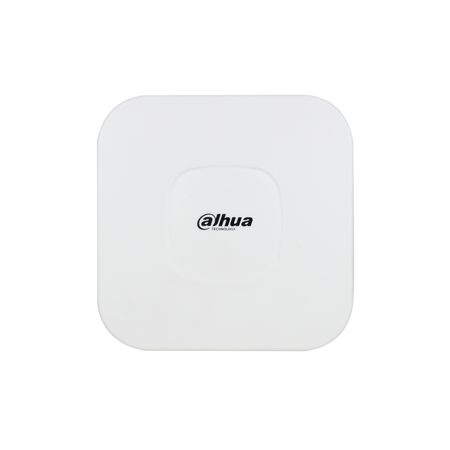

Dahua PFM885-I Indoor 2.4G Wireless Elevator AP 300Mbps
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM885-I
Indoor 2.4G Wireless Elevator AP
>Support proprietary protocol TDMA; when the wireless devices open TDMA, other manufacturers will not be able to link them which ensure the system safety;
>POE or DC power supply optional, which make a strong scene applicability and be more flexible to use;
>Support auto ranging function, real time display straight line distance between client and base station;
>Support device auto reboot function;
>Working frequency support 2412~2472Mhz(extended range: 2312~2732Mhz);
>Support flow control, effectively control base station/client input/output flow control;
>Support VLAN partition, implement the data flow and business flow isolation from each other;
>Multiple front-end ports design, which is conducive to the application development;
>Customize the work mode, which will be convenient for the wireless laypeople to use quickly;
>Use the wireless multimedia optimization shaping technology, which ensures the stability of the video and flow transmission.
Product Data
|
Model |
DH-PFM885-I |
|
Wireless Features |
|
| Wireless Standard |
IEEE802.11 b/g/n |
| Working Frequency |
2412~2472MHz(extended range: 2312~2732MHz) |
| Wireless Speed |
300Mbps |
| Modulation Mode |
OFDM |
| Antenna |
Internal antenna: gain 6dBi |
| Output Power |
27dBm (max) |
| Receiving Sensitivity |
11b: -97dBm@ 1Mbps; 11g: -94dBm@6Mbps; 11n: -72dBm@MCS7 |
| Transmission Distance |
500m |
| Wireless Direction Angle |
Horizontal 65°, vertical 60° |
|
Hardware |
|
| Power |
1*PoE RJ45(IN: 220V, OUT: 48V/0.25A), DC 12V |
| Power Consumption |
Max. 8W |
| Ethernet Port |
2*LAN RJ45 |
| Working Temperature |
-30℃~+70℃ |
| Storage Temperature |
-40℃~+80℃ |
| Working Humidity |
5%~95%RH( no condensation) |
| Equipment Dimension |
150mm×150mm×32mm |
| Equipment Weight |
0.5Kg |
| Protection Level |
IP41 |
|
Software |
|
| Encryption Type |
WPA-PSK/WPA2/CCMP(AES)/TKIP |
| Network Mode |
Route/Network Bridge |
| Working Mode |
Access Point/Client/WDS AP/WDS client |
| Security Mechanism |
IP/MAC address filtering, hide network name and etc. |
| Network Protocol |
TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP |
| TDMA Enhancement |
Support(TDMA eliminate hidden nodes influence and greatly improve one-to-many performance) |
| Auto ACK Timing Adjustment |
Support(Auto optimize parameter within long-distance communication and make the performance optimal) |
| Management and Log |
NTP, Syslog, Telnet, AC, SNMP |
| Webpage Configuration Management |
Support webpage configuration, AC remote management and SNMP management |
| Firmware Update |
Support Firmware webpage update and AC remote upgrade |
| Bandwidth Flexible Configuration |
5/10/20/40MHz |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Linking elevator cars and other indoor wireless backhaul points where a 2.4G access point is needed.
The 802.11n 2x2 MIMO chipset supports wireless speeds up to 300Mbps for smooth video and data transmission.
With TDMA enabled, devices from other manufacturers cannot link to the system, helping keep the wireless link protected.
Choose PoE or DC power to suit the installation site, giving more freedom in how the access point is deployed.
