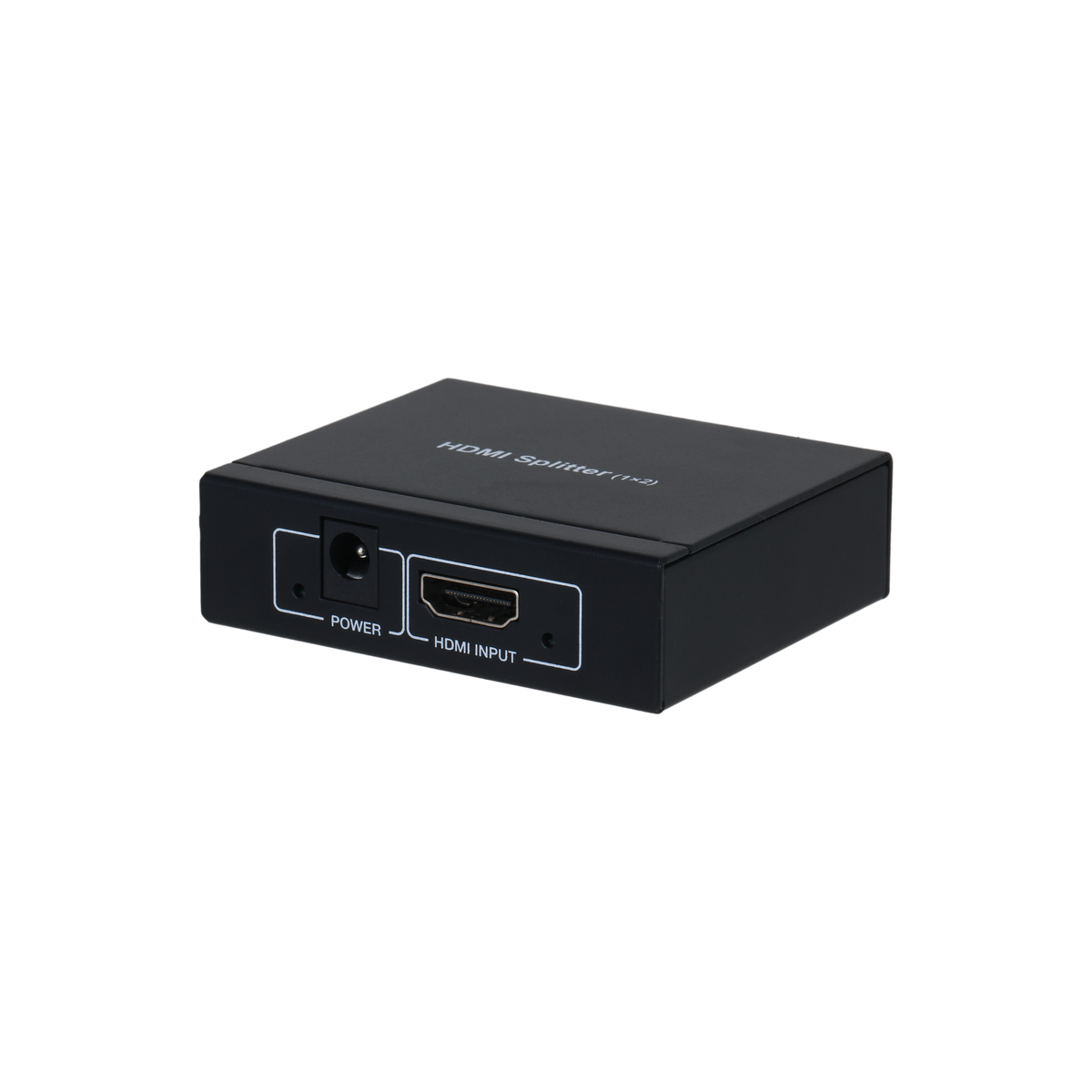

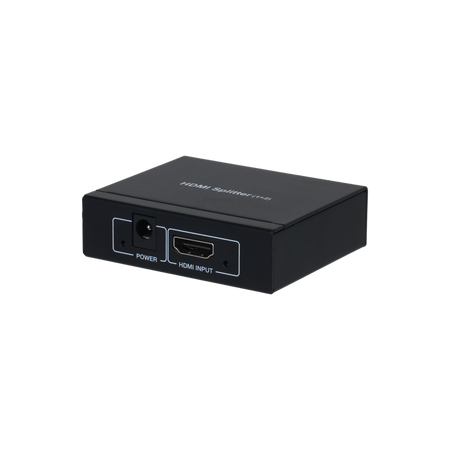

Dahua PFM701-4K 4K@30Hz HDMI 1x2 Splitter
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM701-4K
> Produces two outputs for the HDMI signal.
> Maximum supported resolution: 4K × 2K@30 Hz.
> Compatible with HDMI 1.4b, and HDCP 1.4 protocols.
> Supported color depth: 30/36/48-bit per pixel.
> 3D video format is supported.
Product Data
| Model | PFM701-4K |
| Properties | |
| Input Signal | 1-channel HDMI |
| Output Signal | 2-channel HDMI |
| Video Transmission Properties | |
| Video Signal Input Interface | HDMI interface |
| Video Input Port | HDMI interface |
| Input Voltage | DC5V |
| Power | 5 W |
| HDCP Version | Support HDCP 1.2 |
| HDMI Version | Support HDMI 1.4 |
| Resolution Output Signal | |
| Resolution | 4K/1080P/1080I/720P/576P/576I/480P/480I |
| Output Voltage | 0.5~1.5Vp-p |
| Impedance | |
| ESD | ±6KV(contact discharge) |
| ±8KV(air discharge) | |
| Per: IEC61000-4-2 1995(GB/T 17626.5) | |
| Anti-thunder | ±2KV(common mode), ±1KV(differential mode) |
| Per: IEC61000-4-5 GB/T 17626.5 | |
| Stability | |
| MTBF | >5000h |
| Physical Properties | |
| Dimension(L*W*H) | 60 mm × 70 mm × 20 mm (2.36" × 2.76" × 0.79") |
| Shell | Iron |
| Color | Black |
| N.W. | 128 g (0.28 lb) |
| Environmental | |
| Working Temperature | -10℃~55℃(14℉~131℉) |
| Storage Temperature | -20℃~80℃(-4℉~176℉) |
| Humidity | 0~95%(non-condensing) |
| Certification | |
| Certification | CE/FCC |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Duplicating a single HDMI surveillance or signage feed to two local displays in a control room or retail counter setup.
Splits one HDMI input into two simultaneous outputs so two monitors can show the same camera or playback feed.
Supports output resolution up to 4K x 2K at 30 Hz plus 1080P and lower, matching common surveillance display standards.
A small 60 x 70 x 20 mm black iron shell with 128 g net weight fits neatly behind monitors or inside equipment cabinets.
