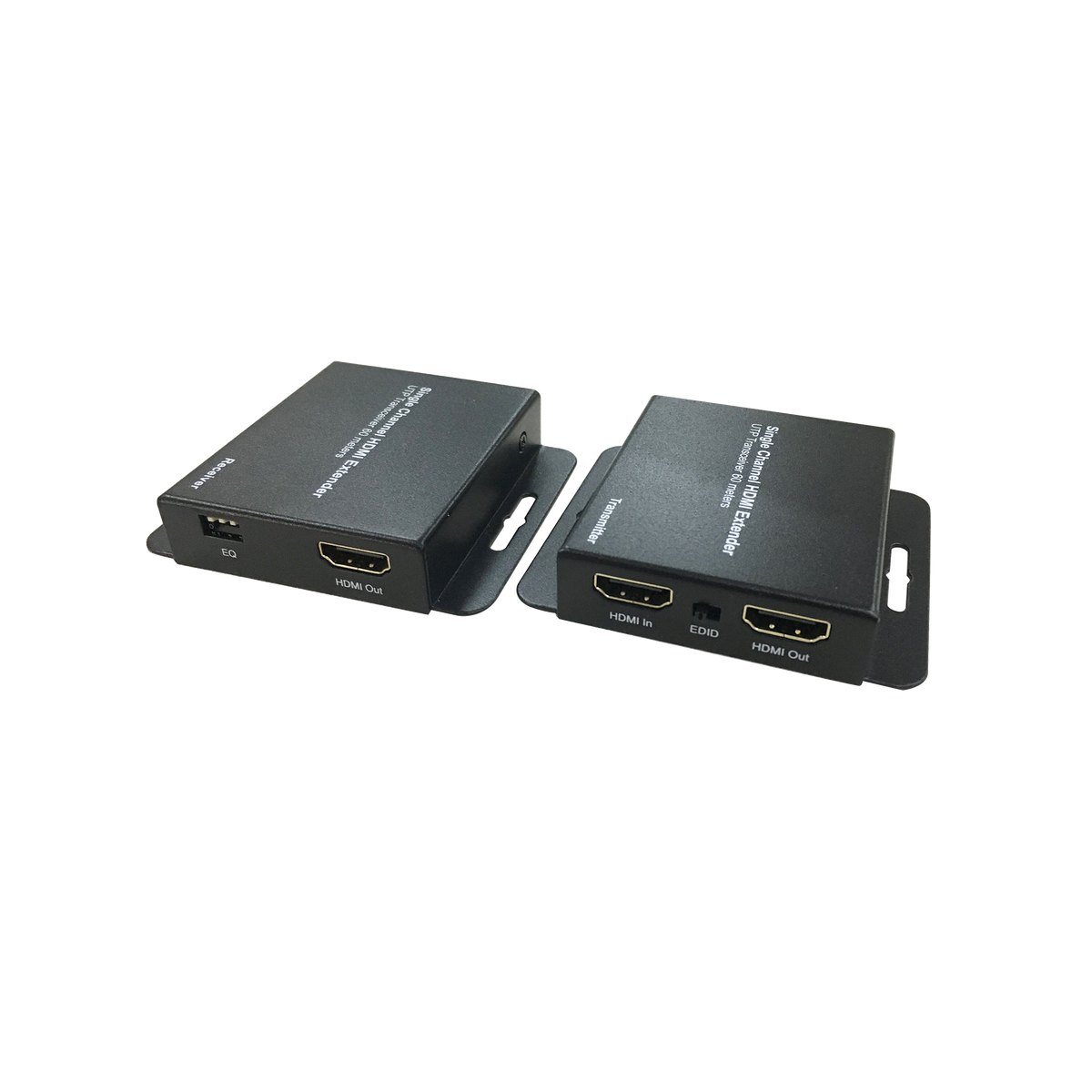

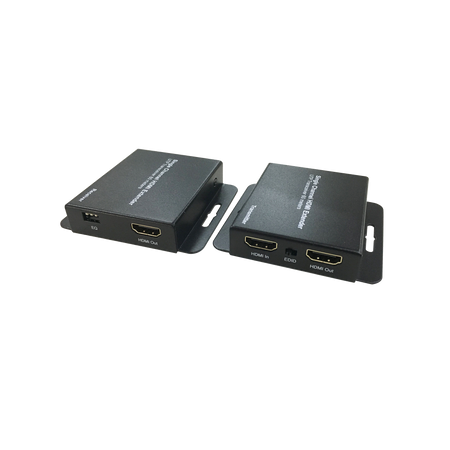

Dahua PFM700-E HDMI Extender 50m CAT5e/CAT6 1080P Accessory
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM700-E
HDMI Extender
> Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
> Transmission distance: HDMI transmission distance 50m (max.164ft), with CAT6 of pure copper cable(DC impedance is less than 9.5 ohm for every 100 meters(328ft)).
> Infrared function: support to transmit one-way infrared remote control signal.
> Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID.
> Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
> Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install.
Product Data
| Model | PFM700-E |
| Properties | |
| Transmission Signal | 1channel HDMI |
| Transmission Distance | 50m (max.164ft), with CAT6 of pure copper cable (DC impedance is less than 9.5 ohm for every 100 meters (328ft)). |
| Video Transmission Properties | |
| Video Signal Input Interface | HDMI interface |
| Video Input Port | HDMI interface |
| Twisted-pair Video Transmission Port | RJ45 port |
| Input Voltage | DC5V |
| Power | TX<3W, RX<3W |
| HDCP Version | Support HDCP1.2 |
| HDMI Version | Support 1.3 and lower version |
| Resolution Output Signal | |
| Resolution | 1080P/1080I/720P/576P/576I/480P/480I |
| Output Voltage | 0.5~1.5Vp-p |
| Impedance | |
| ESD | ±6KV(contact discharge) |
| ±8KV(air discharge) | |
| Per: IEC61000-4-2 1995(GB/T 17626.5) | |
| Anti-thunder | ±2KV(common mode), ±1KV(differential mode) |
| Per: IEC61000-4-5 1995(GB/T 17626.5) | |
| Stability | |
| MTBF | >5000h |
| Physical Properties | |
| Dimension(L*W*H) | Transmitter: 79.5mmx68mmx16.5mm(port length included) (3.13”x2.68”x0.65”) Receiver: 79.5mmx68mmx16.5mm(3.13”x2.68”x0.65”) |
| Shell | Iron |
| Color | Black |
| N.W. | Transmitter: 133g(0.29lb) Receiver: 133g(0.29lb) |
| Environmental | |
| Working Temperature | -10℃~55℃(14℉~131℉) |
| Storage Temperature | -20℃~80℃(-4℉~176℉) |
| Humidity | 0~95%(non-condensing) |
| Certification | |
| Certification | CE/FCC |
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Extending a single HDMI surveillance feed up to 50m over copper CAT5e/CAT6 cabling where direct HDMI runs are impractical.
Transmit one HDMI signal up to 50m over a single pure-copper CAT6 cable, keeping displays and recorders connected across larger sites.
Delivers real-time HDMI video with no delay and strong anti-interference, so live monitoring stays smooth and stable.
No drivers or network parameters are needed, and local HDMI loop output plus EDID support simplify installation and display handshaking.
