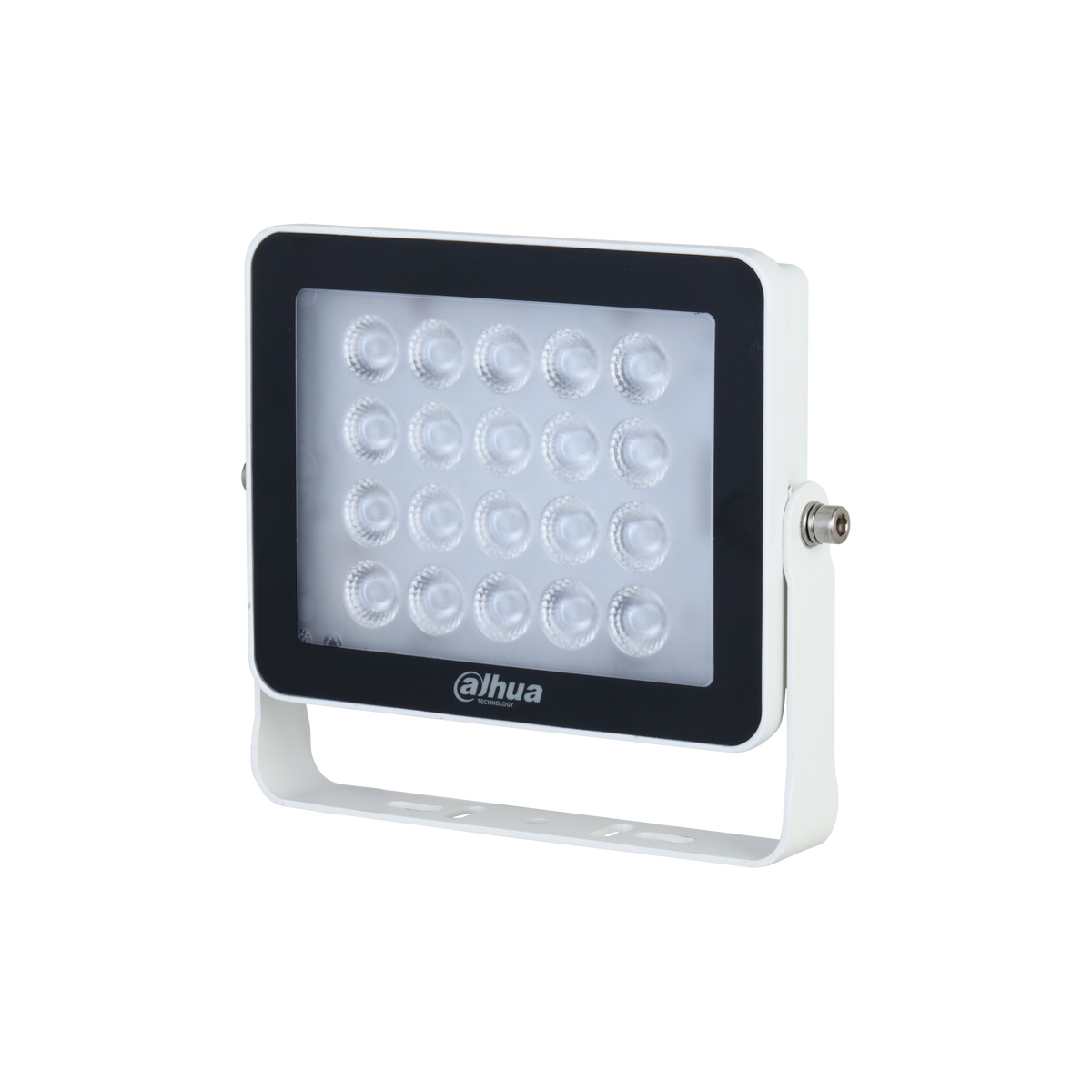

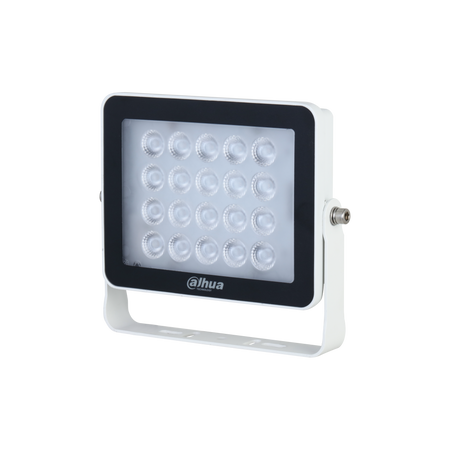

Dahua PFM522P-D1-IR 850nm IR Illuminator IP66 Aluminum Camera Accessory
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM522P-D1-IR
> Built with a die cast aluminum cover, it is highly durable and has a long lifespan.
> One-piece lens that provides balanced lighting and is elegantly designed.
> Explosion-proof.
> 12 VDC power supply.
> IP66 rated.
> Multiple installation methods including pole mount, plane mount and wall mount.
Product Data
|
Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Vanda-proof |
IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP66 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Surge Protection Grade |
Common mode: ±6 kV; Different mode: ±4 Kv |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Source |
LED |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LED Quantity |
20 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
View distance |
15 m–50 m(49.21 ft–164.04 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
View angle |
20° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wavelength |
850 nm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Brightness |
10%–100% (continuously adjustable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Enable Threshold |
30 lux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated Power |
13 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
186.4 mm × 160 mm × 31.5 mm (7.34" × 6.3" × 1.24") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.76 kg (1.68 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
1.0 kg (2.20 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount; pole mount; plane mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
242 mm × 210 mm × 84 mm (9.53" × 8.27" × 3.31") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
430 mm × 250 mm × 212.5 mm (16.93" × 9.84" × 8.37") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Method |
One package for each illuminator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
0%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE LVD: EN 62368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Extending night-time visibility for surveillance cameras in outdoor or industrial sites that need an adjustable 850 nm IR light source.
Brightness is continuously adjustable from 10% to 100%, so you can tune illumination to the scene instead of overexposing nearby subjects.
An IP66 rating and die-cast aluminum alloy cover help the illuminator hold up through dusty and wet outdoor conditions.
Wall, pole and plane mount methods let you position the unit where it best covers the area your camera watches.
