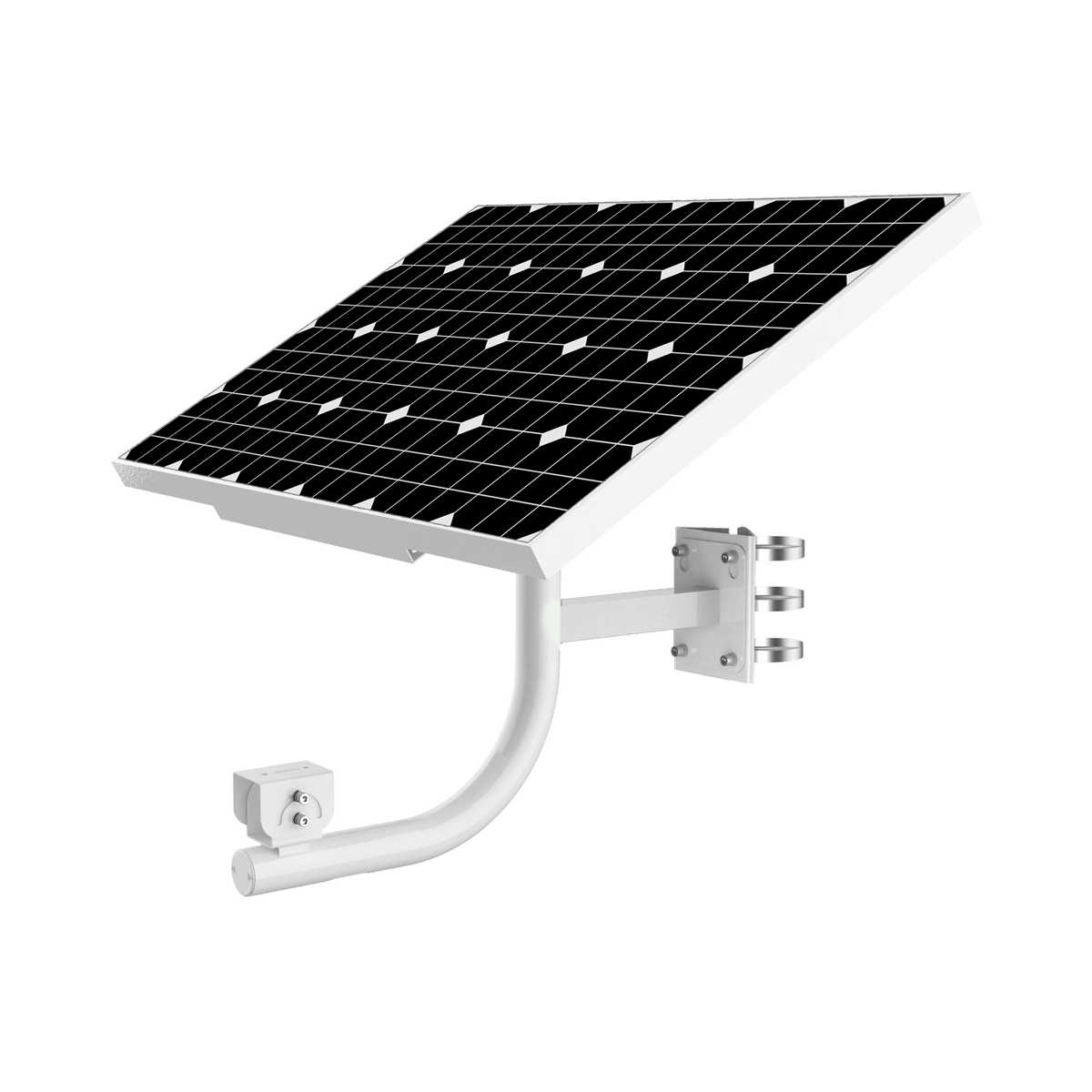

Dahua PFM378-B60-W 60W Solar Monitoring System Pole Mount Camera Accessory
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM378-B60-W
Integrated Solar Monitoring System(Without Lithium Battery)
> Flexible angle adjustment of the solar panel.
> 60 W monocrystalline solar panel.
> Built sturdy to resist storms with sustained winds up to 117 km/h.
> (Note: The following four functions are only supported when battery power is used.)
> Remote monitoring available through the mobile app.
> Maximum Power Point Tracking (MPPT) charging controller.
> RS-485 communication.
> Electric protection.
Product Data
|
Solar Panel |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type |
Monocrystalline silicon |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Power |
60 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Voltage |
18.8 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Solar Cell Efficiency |
21% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Mechanical Load |
5400 Pa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Port |
CSA authorized M15 2-core waterproof connector (connected to lithium battery) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Material |
Main Body:Q235 Pole mount bracket:SECC & SUS304 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Rating |
IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Supports pole mount and wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Adjustable Angle |
Solar panel: H:360°, V: 10°/20°/30°/40°/50° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mast Diameter |
ɸ80~150mm(ɸ3.15”~5.91”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
Main Body:710.0 mm × 603 mm × 666 mm (27.95" × 23.74" × 26.22") Pole mount bracket:130.4mmx170mmx45mm (5.13”x6.69”x1.77”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
785 mm × 565 mm × 200 mm (30.91" × 22.24" × 7.87") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
13.0 kg (28.66 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
13.4 kg (29.54 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
< 3000 m (9842.5 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Area |
Areas with daily exposure to solar radiation for more than 3.5 hours |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
Main Body :–20 °C to +60 °C (–4 °F to +140 °F) Pole mount bracket:40°F~+60°F(-40°F~+140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
Main Body :< 95% (RH) Pole mount bracket:0~90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
< 95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN IEC61000-6-4, EN IEC61000-6-2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering off-grid surveillance cameras at sites with at least 3.5 hours of daily solar exposure.
A 60 W monocrystalline panel with 21% cell efficiency supports dependable solar charging for remote camera installations.
Pole and wall mounting options with 360° horizontal and multi-step vertical panel adjustment simplify aiming at the sun.
An IP65 main body and storm resistance up to 117 km/h sustained winds keep the system protected in exposed locations.
