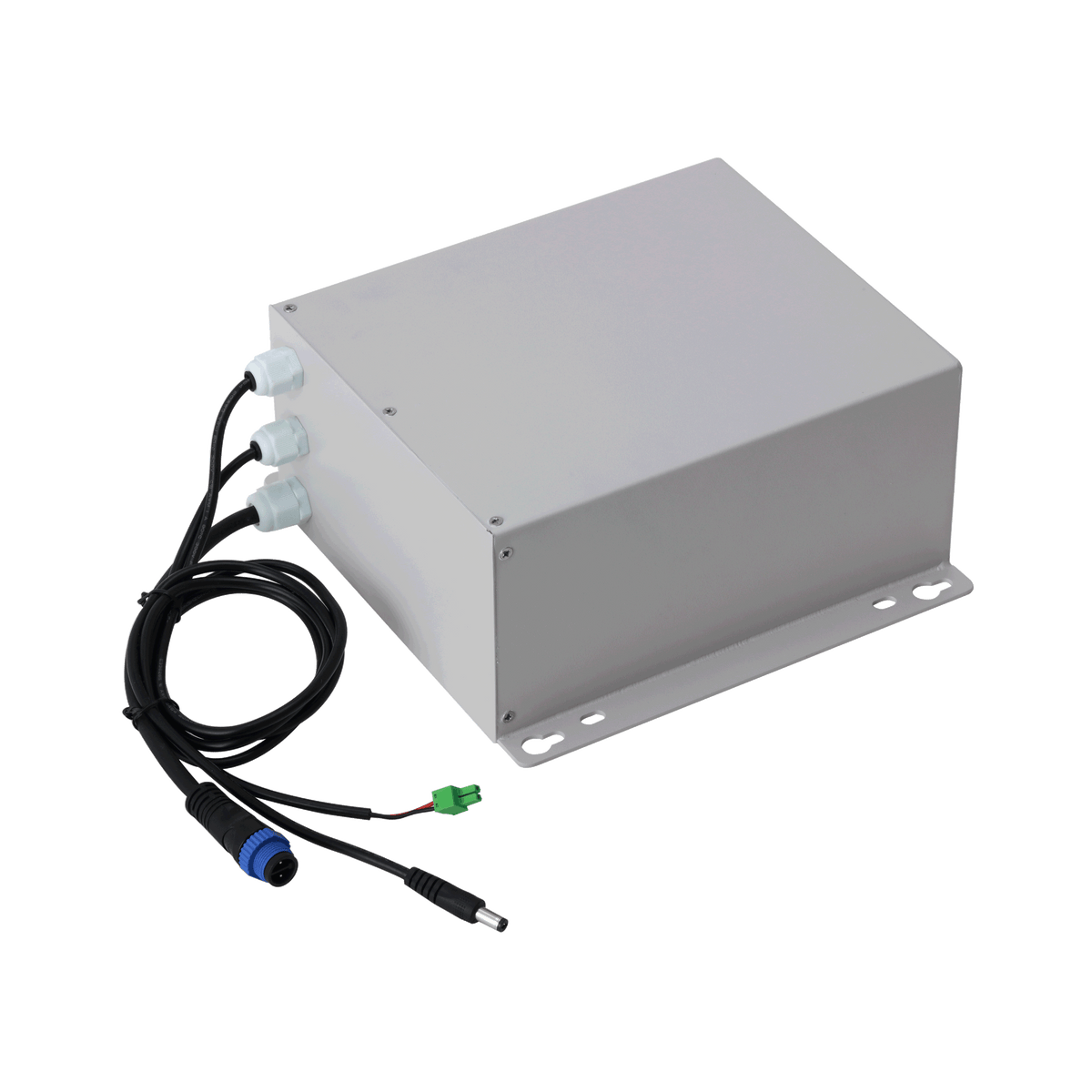

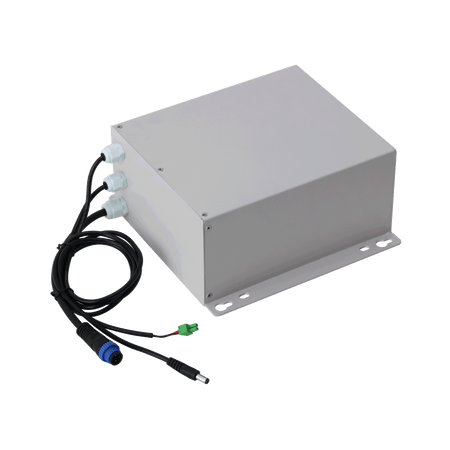

Dahua PFM372-LS20-H 20Ah 10.8V Lithium Battery Solar Power
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM372-LS20-H
Lithium Battery
> Auto-heat function activates in low temperatures to ensure the continuous, stable operation.
> UN38.3 certified battery guarantees the safety and quality of the device.
> *UN38.3 certified battery passed high and low temperature cycle test, vibration test, impact test, high simulation, 55 °C external short circuit test, overcharge test and forced discharge test.
> Lithium battery has a longer cycle life than traditional lead-acid battery.
> CE, FCC, and UKCA certified.
> Protection against overcharge, over-discharge and short circuits.
> Adapts easily to the Integrated Solor Panel System (DH-PFM378-B60-W).
Product Data
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type |
Ternary lithium battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated Charging Current |
4 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated discharge current |
4 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Voltage |
10.8 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Internal Resistance |
≤ 180 mΩ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Nominal Capacity (20°C/68°F, 5 h) |
20 Ah |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Maximum Charging Voltage |
12.6 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Charging Current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Discharge Current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery energy |
216 Wh (10.8 V/20 Ah) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Life |
More than 500 cycles |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Standard Backup Time (20ºC) |
Backup time (h) = 216 Wh/total load power consumption (W) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Controller |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type |
MPPT |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Voltage |
12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated Charging Current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated discharge current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MPPT Tracking Efficiency |
≥ 99% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mode |
RS485 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Rated Charging Power |
130 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Over-discharge Protection Voltage |
9.3 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Others |
Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type |
CSA authorized M15 2-core waterproof connector × 1, 5521 DC Voltage output port × 1, RS-485 connector × 1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Body Material |
Q235 steel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Color |
Grayish white |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Rating |
IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Method |
1 pc in each carton |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
211.0 mm × 212.6 mm × 100.0 mm (8.31" × 8.37" × 3.94") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
350 mm × 245 mm × 148 mm (13.78" × 9.65" × 5.83") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
3.4 kg (7.50 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
4 kg (8.82 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
Charge: –20 °C to +45 °C (–4 °F to +113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
45%RH~85%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
1 month: –20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
< 75% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Maintenance |
Recharge every 3-6 months |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN IEC61000-6-4, EN IEC61000-6-2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Solar-powered surveillance sites that need a stable 12 VDC backup battery with low-temperature auto-heat operation.
The auto-heat function activates in low temperatures so your camera site keeps running through cold snaps.
Ternary lithium chemistry delivers more than 500 cycles, outlasting traditional lead-acid batteries in backup duty.
Overcharge, over-discharge and short-circuit protection help safeguard the battery and connected equipment.
