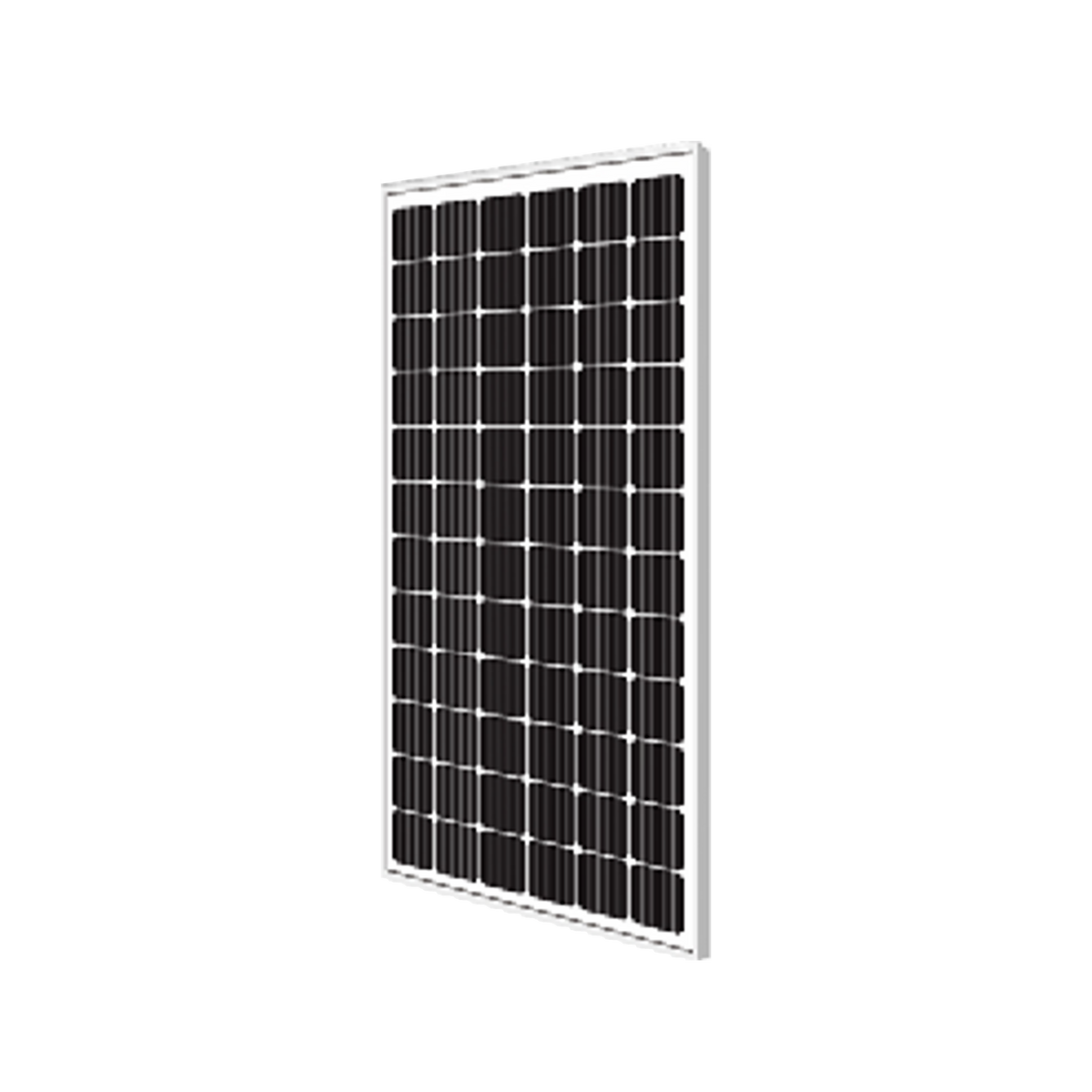

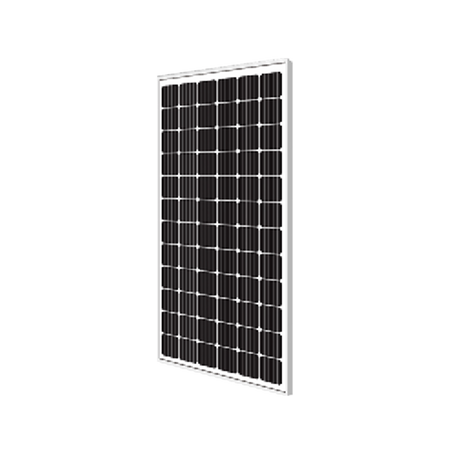

Dahua PFM371-M330 330Wp Solar Panel Monocrystalline Module
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM371-M330
> Multi busbar solar cells, more steady current collection capability, effectively reducing losses
> 0 to +5W positive tolerance, generating more power for users
> Excellent performance in dim light environment with surface texturing technology of glass and solar cells
> 2400Pa wind load and 5400Pa snow load certification
> Applicable to various harsh environments such as high altitude, highly concentrated salt fog, and severe cold
Product Data
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Power |
330Wp |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Power Point Voltage |
37.7Vdc |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Power Point Current |
8.76A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Open Circuit Voltage |
45.8V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Short Circuit Current |
9.26A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Solar Cell Efficiency |
19.20% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature Coefficient of Max. Power |
–0.45%/°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature Coefficient of Open Circuit Voltage |
–0.35%/°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature Coefficient of Short Circuit Current |
0.053%/°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Glass |
3.2 mm, tempered glass with high transparency and low iron |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backsheet |
White weatherproof backsheet |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sealing Material |
Ethylene-vinyl acetate (EVA) with high transparency |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frame |
Anodized aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Junction Box |
IP67, with diode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Connector |
MC4 compatible connector |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Solar Cell Dimensions |
Monocrystalline silicon, 156.8 mm × 156.8 mm (6.17" × 6.17") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Solar Cell Quantity |
72 pcs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cable Length |
900.0 mm (35.43") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cable Cross-sectional Area |
4 mm² |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Mechanical Load |
Wind pressure: 2400Pa Snow pressure: 5400Pa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
1956.0 mm × 992.0 mm × 40.0 mm (77.01" x 39.06" x 1.77") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
2000.0 mm × 1050.0 mm × 110.0 mm (78.74" x 41.34" x 4.33")/2 pcs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
21.0 kg (46.3 lb)/1 pc |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
67.4 kg (148.6 lb)/2 pcs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40°C to +85°C (–40°F to +185°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0°C to +40°C (+32°F to +104°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
<95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN61000-6-1, EN61000-6-3, EN61730-1, EN61730-2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Package Information |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DH-PFM371-M330 330W solar panel |
2 pcs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering remote or off-grid surveillance cameras and small site loads where mains power is unavailable.
Multi busbar solar cells support more stable current collection, helping reduce losses across the module.
Surface texturing on the glass and cells supports effective generation in dim light conditions.
Rated for 2400Pa wind load and 5400Pa snow load, with an IP67 junction box and anodized aluminum frame.
