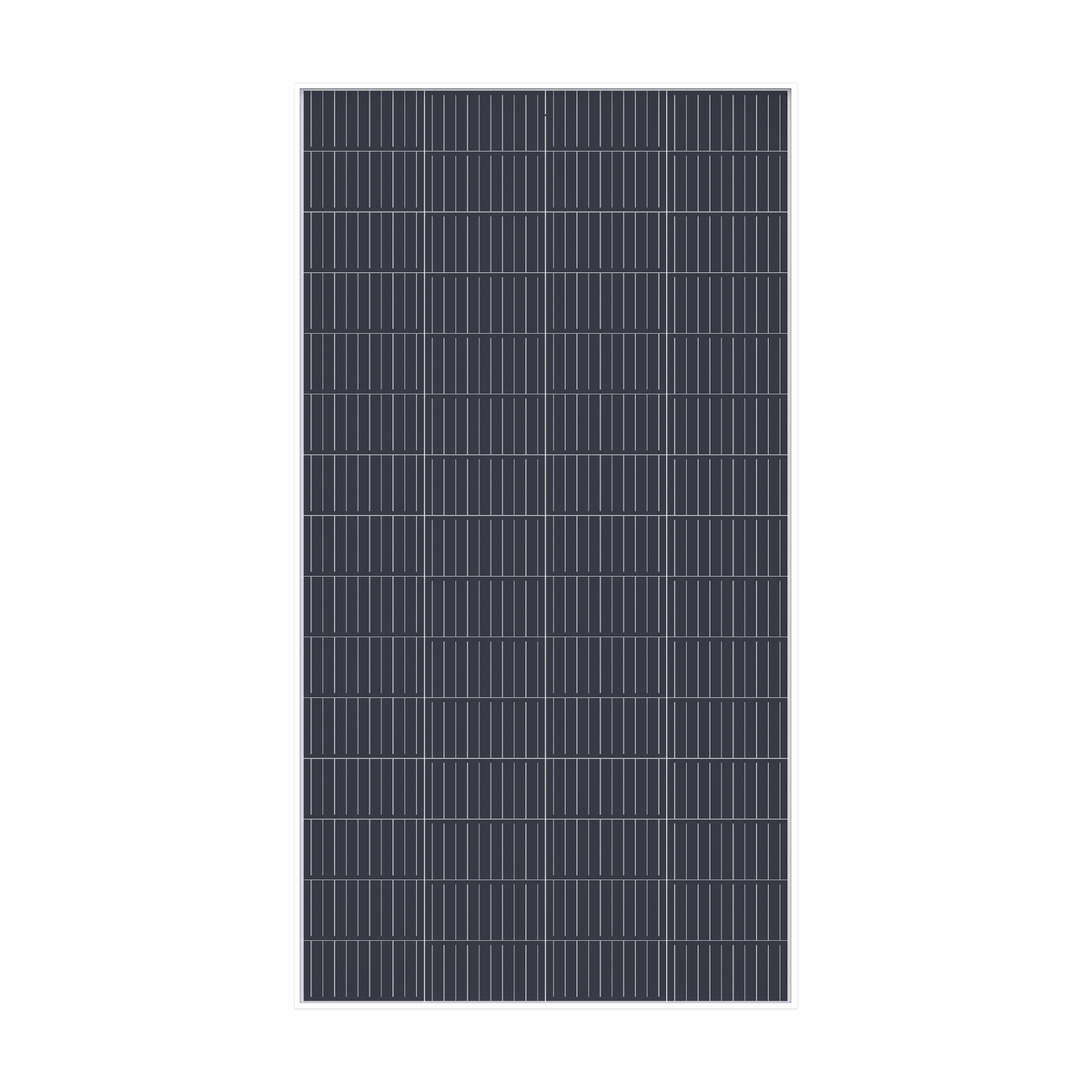

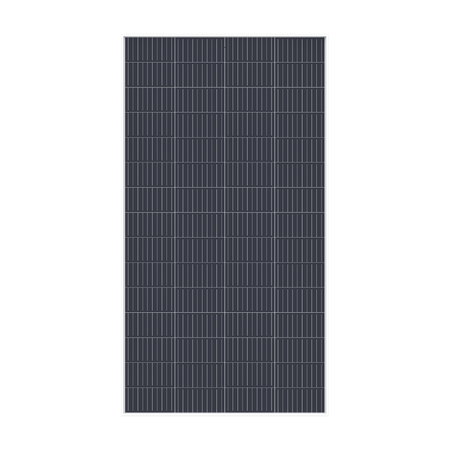

Dahua PFM371-M275 275W Monocrystalline Solar Module Panel
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM371-M275
> Effectively saves energy, consuming no more than 275 W.
> Absorbs light and converts the energy of light into electricity in a balanced way using multiple busbar solar cells.
> Designed with high-quality glass and an etching treatment on the surface of the cells, the device remains stable in different environment.
> Built to be durable, the device can withstand extreme conditions such as places that are in high altitudes, or that have high salt density and low temperatures.
> Long lifespan of up to 25 years.
Product Data
|
Solar Panel |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type |
Monocrystalline silicon |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Power |
275 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Voltage |
32.66 V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Current |
8.42 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Short Circuit Current |
8.9 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Open Circuit Voltage |
39.63 V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Conversion Rate of Solar Panel Components |
19.29% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Conversion Rate of Silicon Chips |
≥22% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Mechanical Load |
Front side: 5400 Pa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dielectric Strength |
1000 V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power-to-temperature Coefficient |
–0.42%/K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Current-to-temperature Coefficient |
0.04%/K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Voltage-to-temperature Coefficient |
–0.3%/K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Body Material |
Silicon; tempered glass; aluminium frame |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Silicon Chip Size |
105 mm × 210 mm (4.13" × 8.27") (L × W) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Silicon Chip Array |
4 × 15 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Port |
Compatible MC4 connector |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
1620 mm × 880 mm × 35 mm (63.78" × 34.65" × 1.38") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
1659 mm × 919 mm × 166 mm (65.31" × 36.18" × 6.54") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Method |
2 pieces in each carton |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
14 kg (30.86 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
49.5 kg (109.13 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
<3000 m (9842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Area |
Locations with exposure to solar radiation for more than 3.5 hours per day |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +85 °C (–40 °F to +185 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
<95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE:EN 61000-6-1,EN 61000-6-3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering off-grid or remote surveillance camera installations where mains electricity is unavailable.
Multiple busbar monocrystalline cells and etched cell surfaces convert light into electricity in a balanced way for steady output.
Tempered glass and an aluminium frame help the module stay stable in high-altitude, high-salt and low-temperature environments.
Designed for a lifespan of up to 25 years, supporting dependable long-term solar power for your camera setup.
