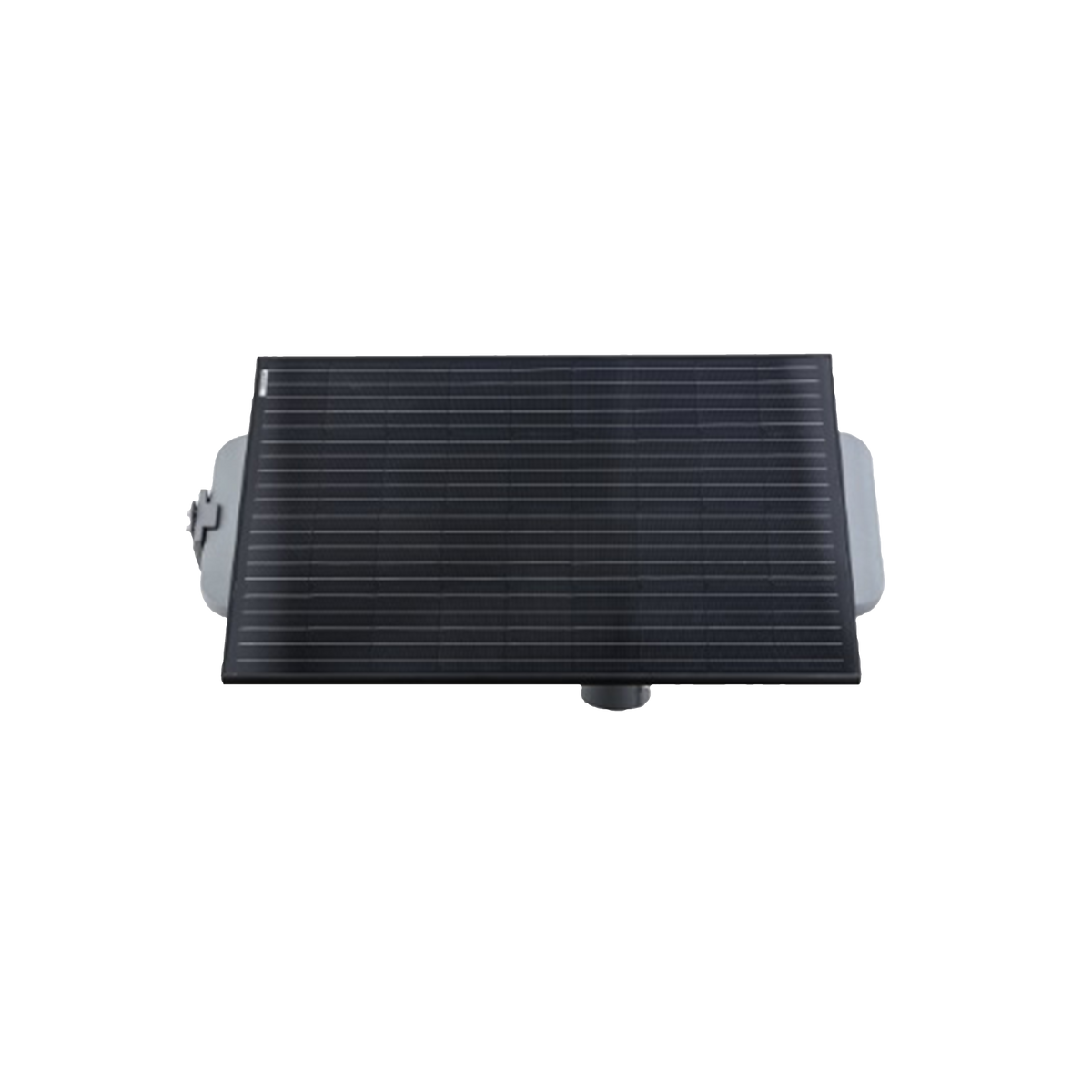

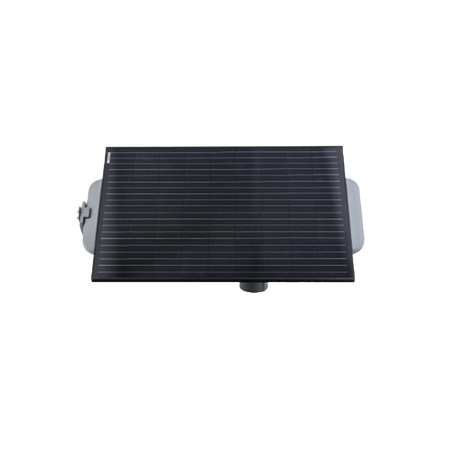

Dahua PFM363L-D1 120W Solar Power System, Pole-Mount Camera Accessory
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM363L-D1
> Integrated die casting casing
> Aluminum alloy frame
> Monocrystalline silicon solar panel
> Remote monitoring with app
> Maximum Power Point Tracking (MPPT) charging controller
> RS–485 communication
> Electronic protection
Product Data
|
Solar Panel |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type |
Monocrystalline silicon |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Power |
120W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Solar Cell Efficiency |
21% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Mechanical Load |
5400Pa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Over-discharge Protection Voltage |
11.1V DC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Temperature Charging |
≤–10°C (14°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Temperature Discharging |
≤–20°C (–4°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Grade |
IP66 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Others |
Over temperature, overvoltage of the battery, overload, and short circuit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
Φ5.5 mm × Φ2.1 mm × 12 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS–485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Body Material |
Die casting aluminum |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Pole mount, installed on 76 mm to 96 mm (Φ3.0"–Φ3.78") poles |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Adjustable Angle |
Horizontal: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
1149.5 mm × 670.0 mm × 455.2 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
1351 mm × 796 mm × 378 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Method |
1 pc in each carton |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
22.5 kg (49.60 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
32 kg (70.55 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
<3000 m (9842.5 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Area |
Areas with daily solar radiation >4.5 h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–20°C to 60°C (–4°F to 140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0°C to 40°C (32°F to 104°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
<95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN61000-6-2, EN61000-6-4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering pole-mounted surveillance cameras at remote sites where mains electricity is unavailable and daily solar radiation exceeds 4.5 hours.
A monocrystalline silicon panel rated at 120W with 21% cell efficiency keeps your camera running on sunlight alone.
The integrated MPPT controller extracts more usable power from the panel, supporting longer uptime through changing light conditions.
A die-cast aluminum body with IP66 protection mounts on 76–96 mm poles with 360° horizontal and -75° to 80° vertical adjustment.
