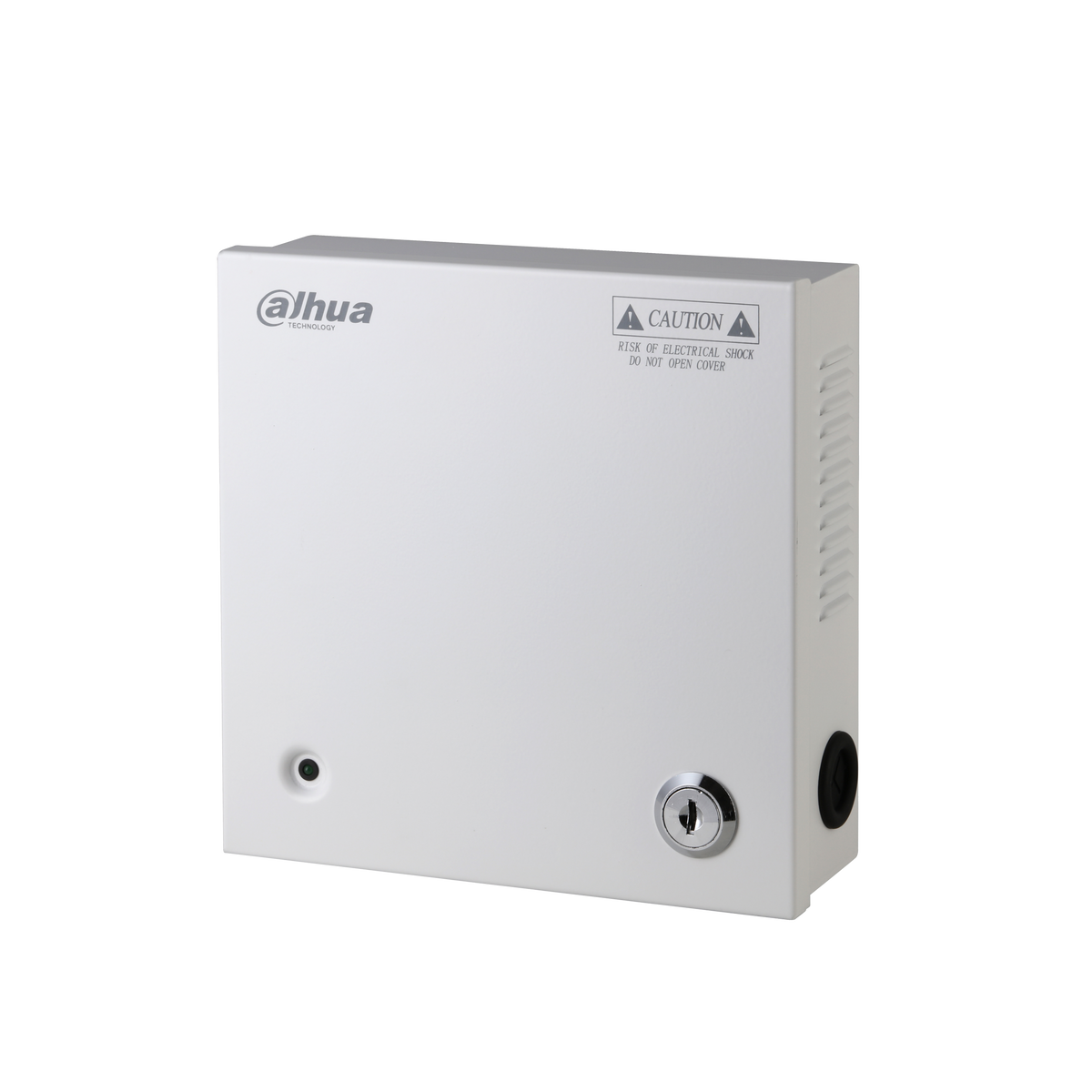

Dahua PFM340-5CH DC12V 4A 5-Channel CCTV Distributed Power Box
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFM340-5CH
DC12V4A 5-ch CCTV Distributed Power Box
>Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation.
>High quality and reliability: pass 100% quality examination and 3 months high temperature aging test.
>With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability.
>Professional wall-mounted installation with reserved outlet holes, convenient and flexible.
Product Data
|
Electrical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DH-PFM340-5CH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input Voltage Range |
AC90~264V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Outputs |
5 x 12VDC (-3%~+7%) outputs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. output |
4 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Protection |
5 replacement fuses, max. per output 2.5A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Efficiency |
84% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
No Load Power Consumption |
<0.5W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Internal ON/OFF Power Switch |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Individual LED Output Indicator |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection/Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Surge Protected |
Line to ground: 4000V Line to line: 2000V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ESD |
Contact discharge: 6000V Air discharge: 8000V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
-20℃~+45℃(-4℉~+113℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Humidity |
<90% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Physical Properties |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
0.85kg(1.87lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(LxWxH) |
165mmx165mmx50mm(6.5”x6.5”x1.97”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Safety Standards |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
CE(EN55032, EN55020) FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering up to five 12VDC surveillance cameras from one wall-mounted distribution box with individual fused outputs.
Five 12VDC outputs each with a replaceable fuse let you distribute power to multiple cameras while limiting fault impact per line.
Overload, over-current and over-voltage protection plus surge and ESD ratings help safeguard connected cameras in demanding installations.
A lockable white metal case with individual LED output indicators keeps the power box protected and makes output status easy to check.
