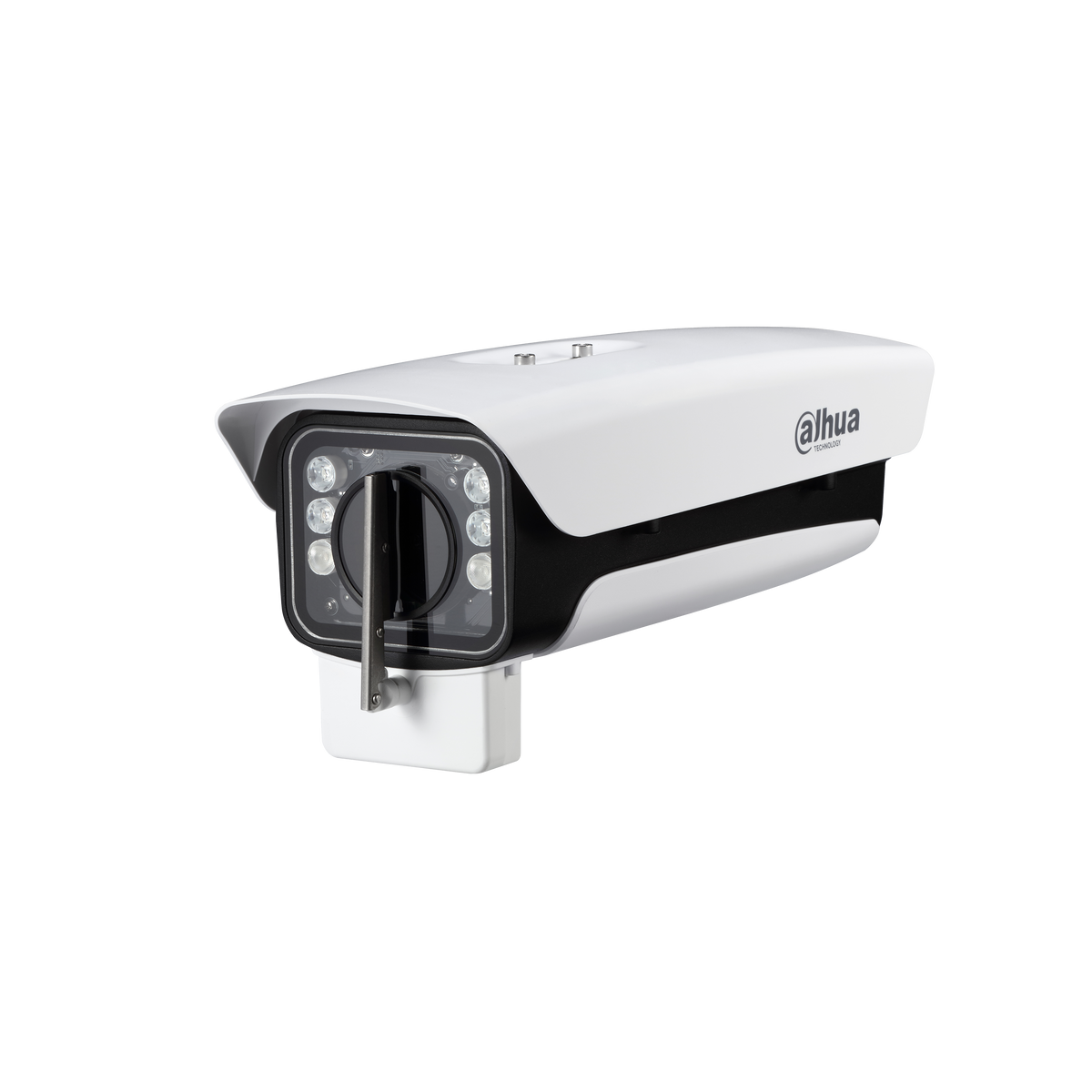

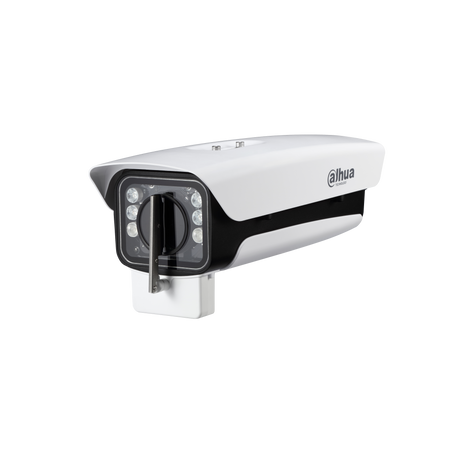

Dahua PFH610N-IR-W 14" IR Wiper Camera Housing
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFH610N-IR-W
>IP66 water-proof;
>All-aluminum shell design, built-in heating and cooling system, windows adopt water-proof films, 0-100m IR and support remote control of IR light and wiper function by RS485;
>Aesthetic design.
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DH-PFH610N-IR-W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Inside Dimension(LxWxH) |
255mmx90mmx70.5mm(10.04”x3.54”x2.78”) 215mmx90mmx83mm(8.46”x3.54”x3.27”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Window Dimension |
ɸ60mm(ɸ2.36”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
Set |
-40℃~+60℃(-40℉~+140℉) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Heater |
ON: 5±5 ℃/OFF: 15±5 ℃ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cooler |
ON: 37±5℃/OFF: 20±5℃ ON: 5±5 ℃/OFF: 15±5℃ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
0~100m(0~328.08ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS485 Control |
Yes, use RS485 to control IR light & wiper |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
AC24V/5A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption(without camera) |
Max. 70W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-40℃~60℃(-40℉~+140℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Humidity |
<90% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ingress Protection |
IP66 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Vandal Resistance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Corrosion Protection |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Construction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Material |
Aluminum(case)&PC(others) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(LxWxH) |
404mmx164mmx175mm(15.91”x6.46”x6.89”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
3.3kg(7.28lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Others |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
CE, FCC, ICES |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Model |
Please see “Accessory Selection” |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Protecting box cameras and lenses in exposed outdoor sites that need IR lighting, wiper cleaning and temperature control.
The all-aluminum housing shields box cameras and lenses from rain and dust with an IP66 rating for demanding outdoor placement.
Integrated heating and cooling keep the housing within its -40°C to +60°C operating range through hot and cold conditions.
0-100m IR lighting and the wiper can be managed remotely over RS485, reducing the need for site visits.
