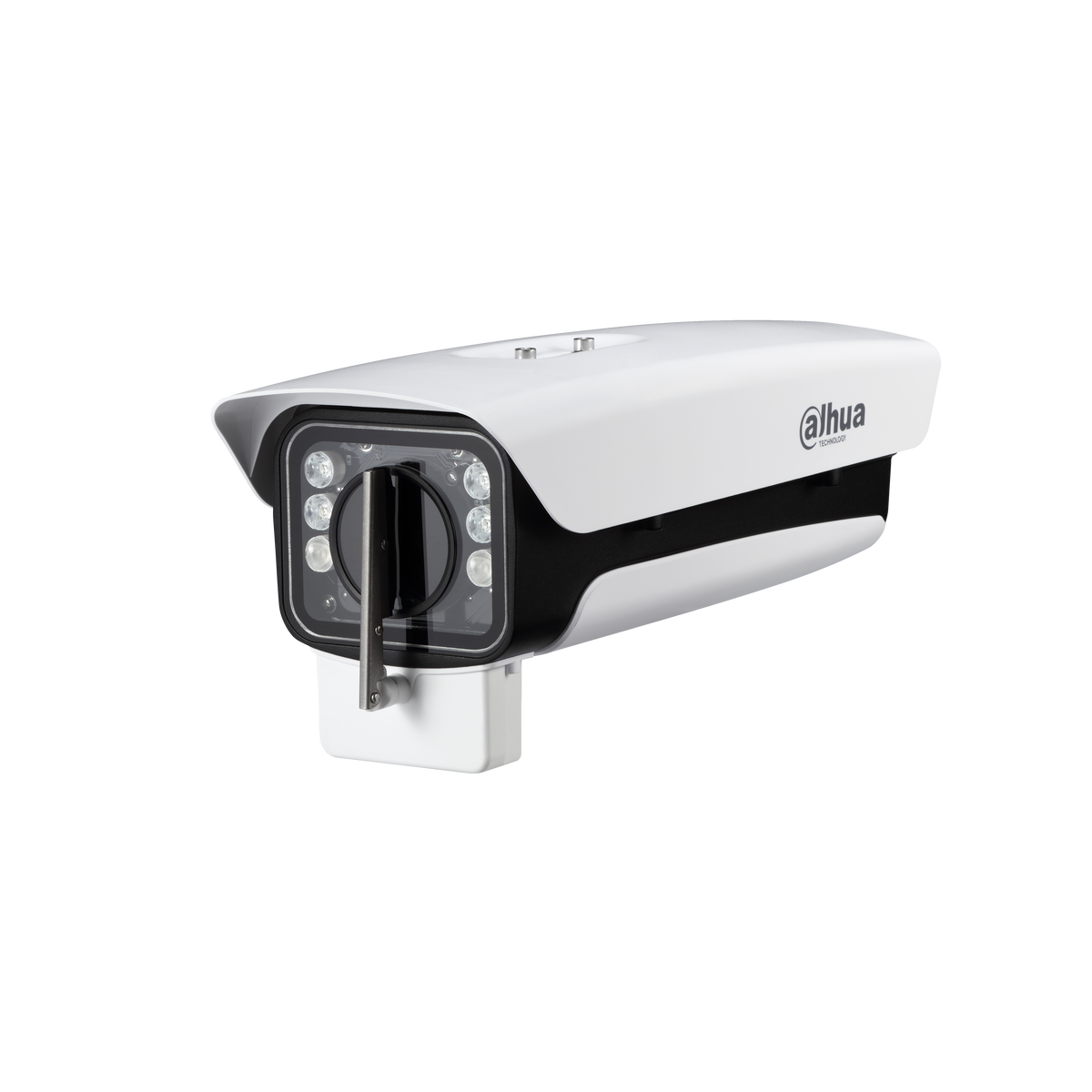

Dahua PFH610A-IR-W-POE 14" PoE+ IR Corrosion-Proof Camera Housing
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
PFH610A-IR-W-POE
> Designed with a die cast aluminum case.
> IP66 rated.
> Comes with a built-in PoE module, and supports PoE/12 VDC power supplies.
> With its built-in infrared light module, it produces light up to 100 meters in low light conditions.
> The heating and heat dissipation modules provide the device with a wide operating temperature range.
> Built-in wiper module reduces manual maintenance.
> Anti-corrosion design.
Product Data
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Temperature Control |
Heating mode: ON: < +5 °C (+41 °F)/OFF: ≥ +5 °C (+41 °F) < +20 °C (+68 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Light |
0 m –100 m (0 ft–328.08 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sprinkling Control |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP66 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Surge Protection Grade |
± 4 kV/± 2 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
16 W (without camera) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
PoE+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply for Camera |
PoE/12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1, used to control the IR light and wiper |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input Port |
2, used to control the IR light and wiper |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output Port |
2, used to control IR feedback and washer modules |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DIP Switch |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Material |
Aluminum Alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
404.3 mm × 163.8 mm × 175.0 mm (15.92" ×6.45" × 6.89") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Window Dimensions |
Φ59.4 mm (Φ2.33") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Internal Usable Space |
255 mm × 90 mm × 70.5 mm (10.04" × 3.54" × 2.78") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
3.2 kg (7.05 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
3.7 kg (8.16 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount; ceiling mount; plane mount; pole mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screw Thread Type |
G1/2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Applicable Model |
Please see "Camera Accessories Selection" |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
447.0 mm × 240.0 mm × 234.0 mm (17.60" × 9.45" × 9.21") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Transport Package Dimensions |
1224.0 mm × 467.0 mm × 497.0 mm (48.19" × 48.38" × 19.56") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Method |
10 pcs in each master carton |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
< 90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN 62368-1 , EN 60950-22, EN 62560, EN55032, EN55035, EN61000-3-2, EN61000-3-3, EN50130-4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Protecting and illuminating cameras in corrosive, wet or wide-temperature outdoor sites such as coastal, industrial and wastewater locations.
A die-cast aluminum alloy case with anti-corrosion design and IP66 protection helps the housing stand up to harsh, damp and salt-exposed environments.
The integrated infrared module reaches up to 100 m in low light, while the built-in wiper cuts manual cleaning visits.
A built-in PoE+ module powers the housing and supports PoE or 12 VDC camera supply, with heating and cooling for a wide operating range.
