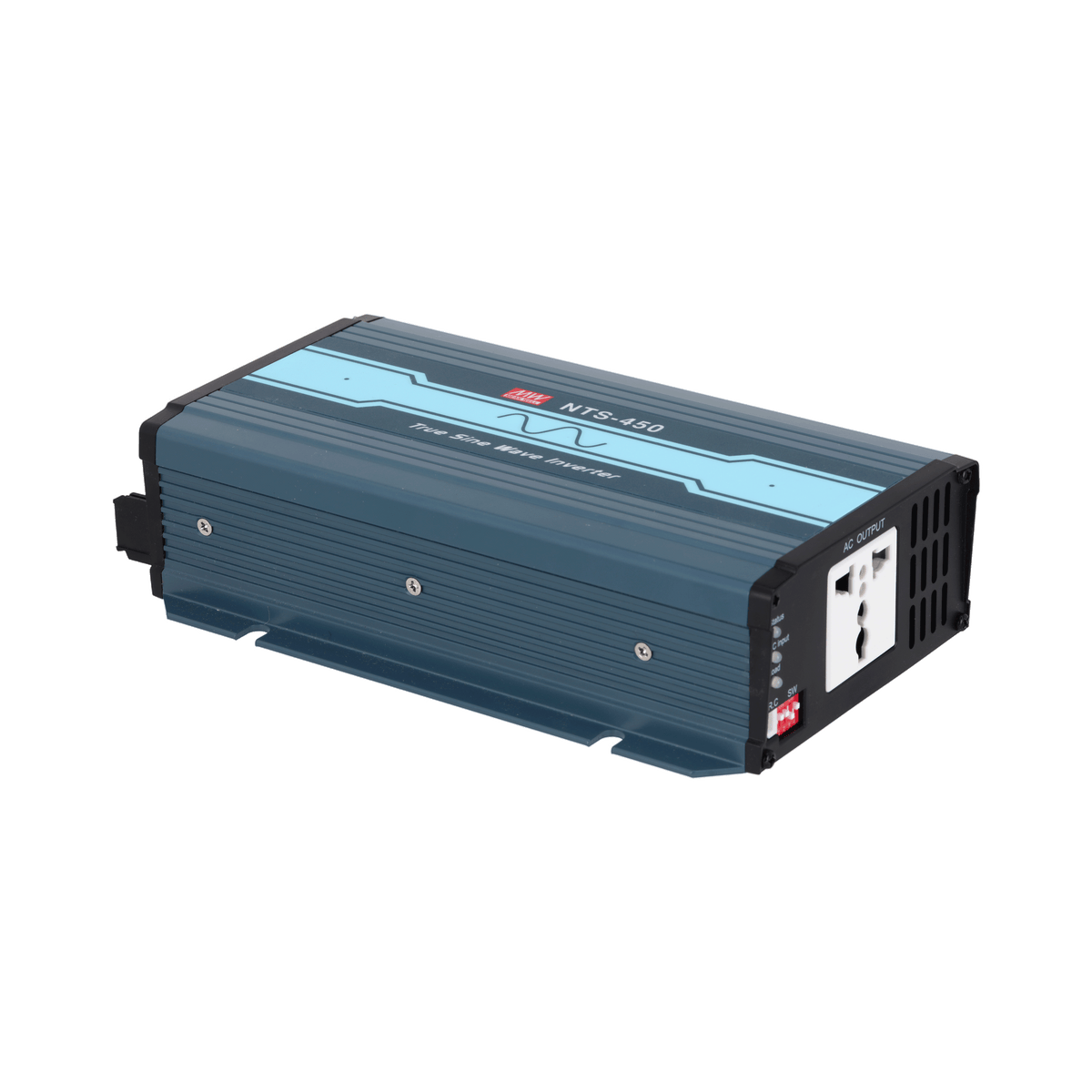

Dahua NTS-450-248UN 450W Pure Sine Wave Inverter 48V DC
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
NTS-450-248UN
> Uses true sine wave output with THD <3%.
> Supports 40–66 VDC wide voltage input and is suitable for 48 V storage battery input in solar systems.
> Up to 93% full-load efficiency.
> Supports various protections, including low voltage alert and low voltage shutdown of storage battery, output short circuit protection, overload protection, overvoltage protection, over temperature protection and polarity protection.
> Adjustable output voltage.
> Adjustable output frequency to 50 Hz and 60 Hz.
Product Data
|
Electrical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AC Output Rated Power |
450 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AC Output Waveform |
Pure sine wave |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AC Output Frequency |
50/60 Hz, can be adjusted by configuring button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AC Output Alternating Voltage |
200/220/230/240 V, can be adjusted by configuring button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DC Input Direct Voltage |
24 V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DC Input Direct Current |
25 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DC Input Frequency |
93% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DC Input Battery Type |
Lead-acid Battery, Lithium Battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
EMC |
CLASS A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Safety Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Low Voltage Alarm |
44 ± 1 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Low Voltage Shutdown |
40 ± 1 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery High Voltage Alarm |
62 ± 1 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery High Voltage Shutdown |
66 ± 1 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Reverse Polarity Protection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Overtemperature Protection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Short Circuit Protection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Overvoltage Protection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Others |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
210 mm × 130 mm × 55 mm (8.27" × 5.12" × 2.17") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
1.3 kg (2.87 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
280 mm × 176 mm × 110 mm (11.02" × 6.93" × 4.33") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–25°C to +65°C (–13 °F to +149 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
20%–90% (RH) (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
10%–95% (RH) (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
1 × user's manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Powering small AC surveillance and network loads from a 48 V solar battery bank with clean pure sine wave output.
True sine wave output with THD under 3% helps sensitive electronics run smoothly from your battery bank.
Accepts a 40–66 VDC input range, making it suited to 48 V storage battery setups in solar systems.
Built-in low voltage, short circuit, overload, overvoltage, overtemperature and polarity protections support safer operation.
