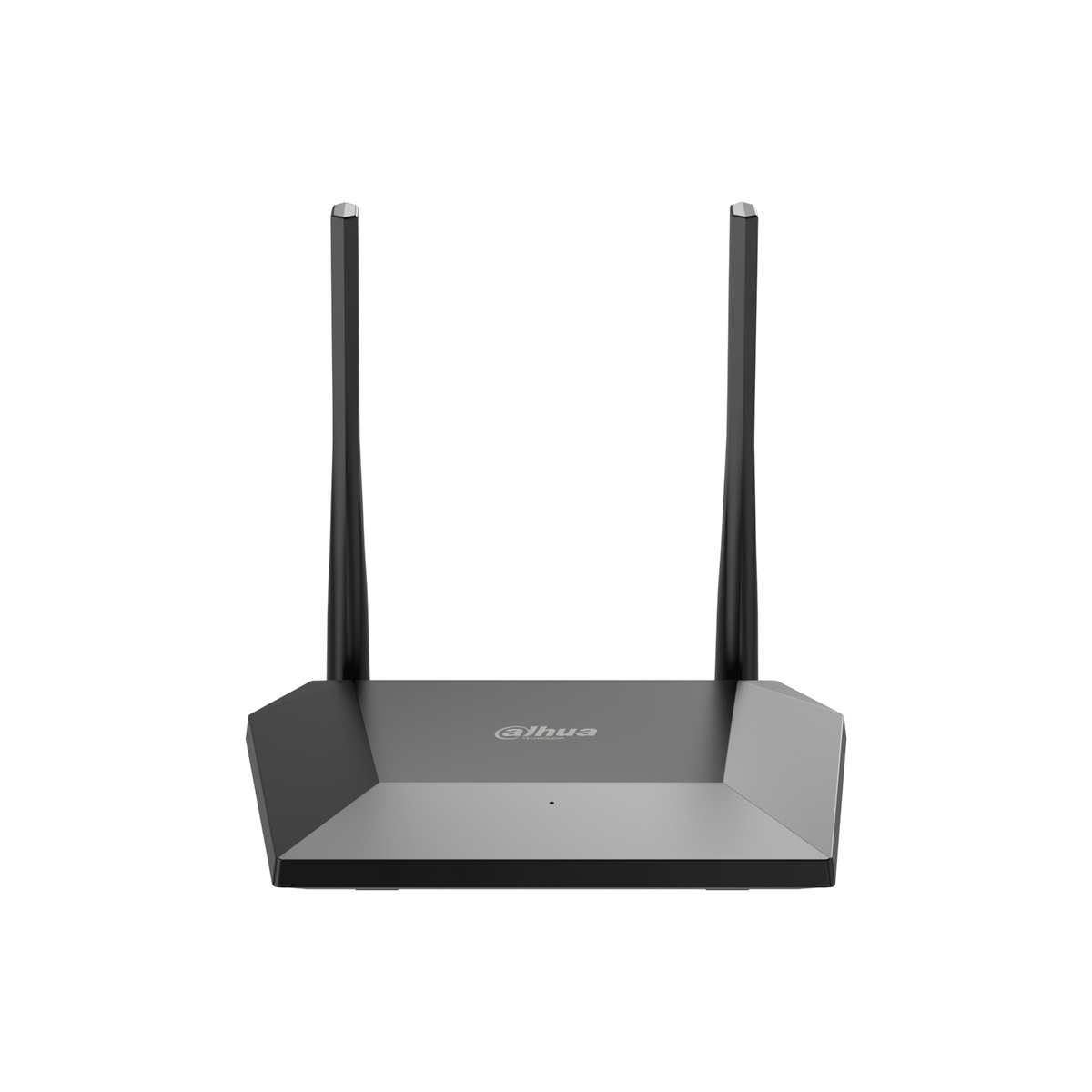

Dahua N3- N300 Wireless Router 2.4GHz 300Mbps 4-Port Transmission
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
N3
> Complies with the IEEE 802.11b/g/n standard. The wireless speed reaches up to 300 Mbps for IEEE 802.11n, allowing smooth internet access.
> 1 × WAN port and 3 × LAN ports that expand network coverage.
> Two external antennas offer a wider signal coverage.
> Automaically selects unoccupied channels.
> Easily connects to the wireless network by just the press of the WPS buttons
Product Data
|
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Ports |
1 × 10/100 Mbps WAN port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC, 0.5 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
3.2 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator Light |
1 × Two-color light indicator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Buttons |
1 × WPS/Reset button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Standard |
IEEE 802.11b/g/n |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Frequency |
2.412 GHz–2.484 GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Speed |
2.4 Ghz: 300 Mbps (802.11n) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Output Power |
20 dBm ± 2 dBm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Antenna |
2 × External omnidirectional antenna |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Antenna Gain |
3 dBi |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Mode |
Router mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Channel |
1–13 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Channel Width |
20 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WAN Types |
DHCP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encryption Mode |
WPA-PSK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Firmware Update |
Web update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DHCP |
DHCP server |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
NAT Forwarding |
Port Forwarding |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Quality of Service |
QoS by device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +40 °C (+14 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.303 kg (0.67 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.125 kg (0.28 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
172.0 mm × 121.0 mm × 33 mm (6.77" × 4.76" × 1.30") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
218.0 mm × 245.0 mm × 45.0 mm ( 8.58" × 9.65" × 1.77") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packing List |
1 × Devices |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Extending or sharing a wired surveillance network over 2.4 GHz Wi-Fi in small offices and retail sites.
Reaches up to 300 Mbps on 802.11n so connected cameras and clients keep smooth internet access.
One WAN and three LAN ports let you link recorders, cameras and switches alongside wireless devices.
Two 3 dBi omnidirectional antennas widen signal coverage, with automatic selection of free channels.
