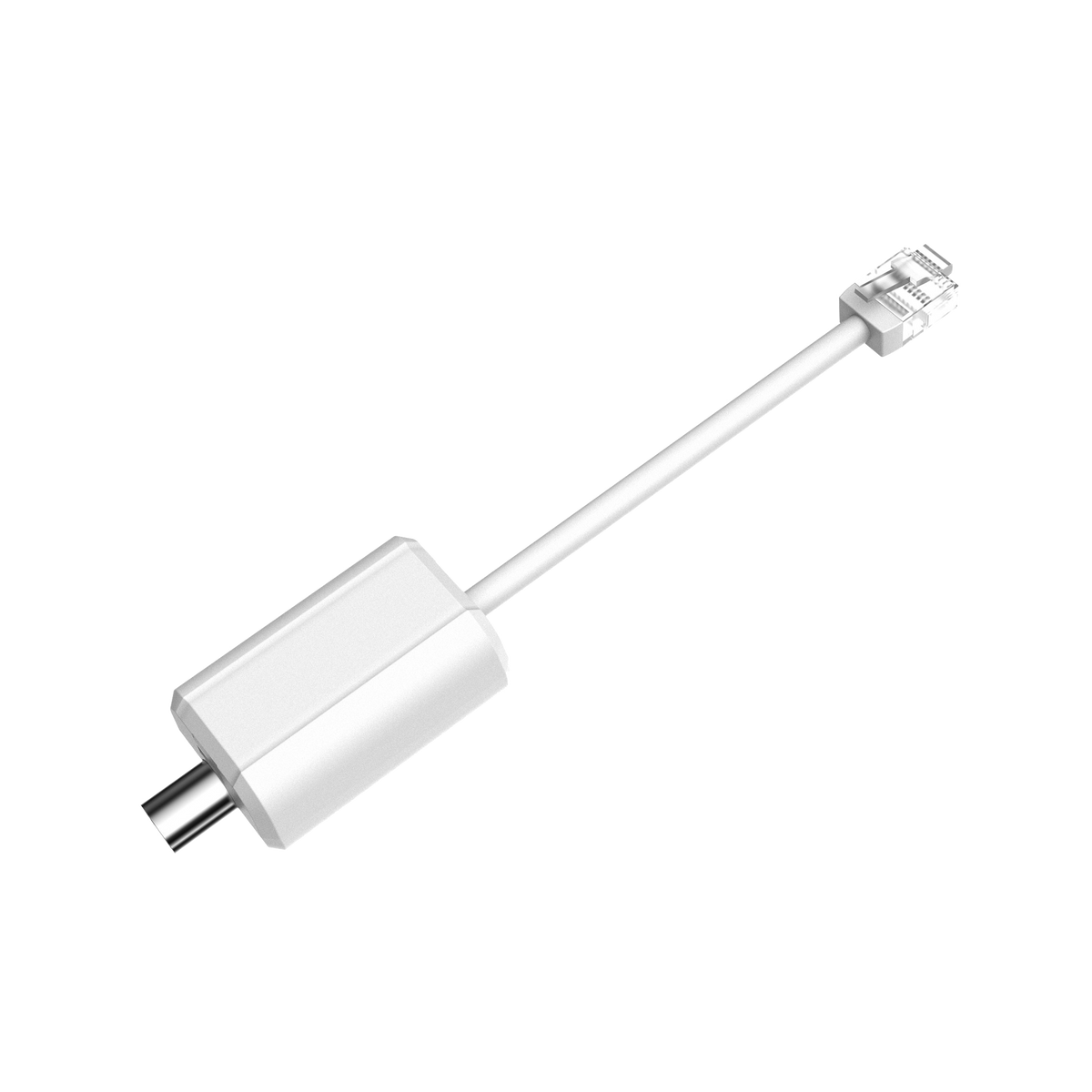

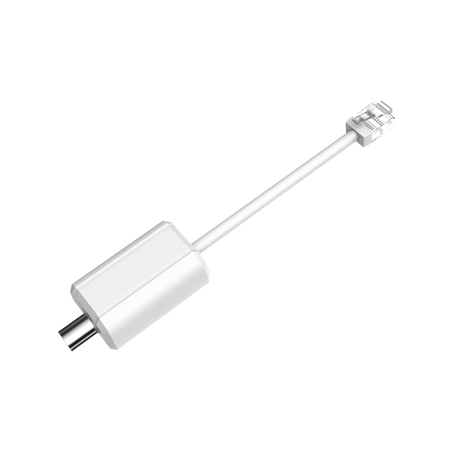

LR1002
EoC Passive Converter
> Port: 1*RJ45 10/100Mbps, 1*BNC
> Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
> Supports MDI/MDIX self-adaption
> Supports long range power supply transmission via coaxial cable
Product Data
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
LR1002 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function Port |
1*10/100 Mbps Base-TX 1*BNC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
<1W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Transmission Bandwidth |
RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Protocol |
- (Based on the power input from the ePoE switch) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Standard |
IEEE802.3, IEEE802.3u |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lightning Protection |
Common Mode 6KV Differential Mode 2KV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-40°C-60°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
0%~95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
28.3g |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension (W×D×H) |
56mm×27mm×21mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cable Length (m) |
Communication Bandwidth (Mbps) |
PoE Max Load Capacity (W) |
Hi-PoE Max Load Capacity (W) |
Network Operating Mode |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
100 |
100 |
25.5 |
50 |
IEEE/E100 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
200 |
100 |
25.5 |
30 |
E100 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
300 |
100 |
18 |
18 |
E100 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
400 |
100 |
15 |
15 |
E100 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
500 |
10 |
12 |
12 |
E10 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
800 |
10 |
6 |
6 |
E10 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1000 |
10 |
5 |
5 |
E10 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ePoE switch power supply voltage is 48V. The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
100 |
100 |
25.5 |
52 |
IEEE/E100 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
200 |
100 |
25.5 |
48 |
E100 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
300 |
100 |
25.5 |
30 |
E100 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
400 |
100 |
20 |
23 |
E100 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
500 |
10 |
16 |
16 |
E10 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
800 |
10 |
10 |
10 |
E10 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1000 |
10 |
8 |
8 |
E10 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ePoE switch power supply voltage is 53V. The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Extending 10/100 Mbps Ethernet and long-range power over existing RG59 coaxial cable runs in analog-to-IP camera retrofits.
Converts an RJ45 Ethernet port to a BNC coax connection so existing RG59 cabling can carry network traffic instead of new cable pulls.
On RG59 coax it supports up to 400 m at 100 Mbps or up to 1000 m at 10 Mbps, letting you match reach to bandwidth needs.
Draws under 1 W with no PoE protocol of its own, and the small 56 x 27 x 21 mm body fits tight enclosures and camera housings.
