DAHUA LPH86-MC410-B 86'' UHD Smart Interactive Whiteboard
DAHUA LPH86-MC410-B 86'' UHD Smart Interactive Whiteboard
icctvzone

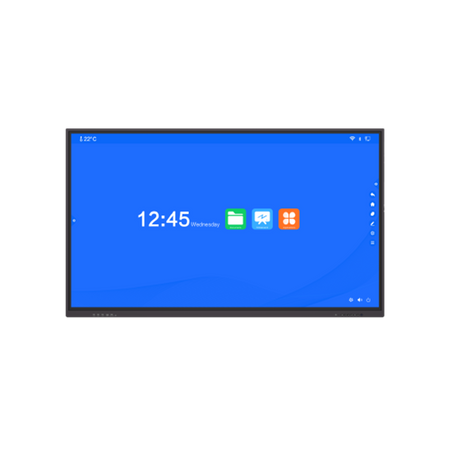

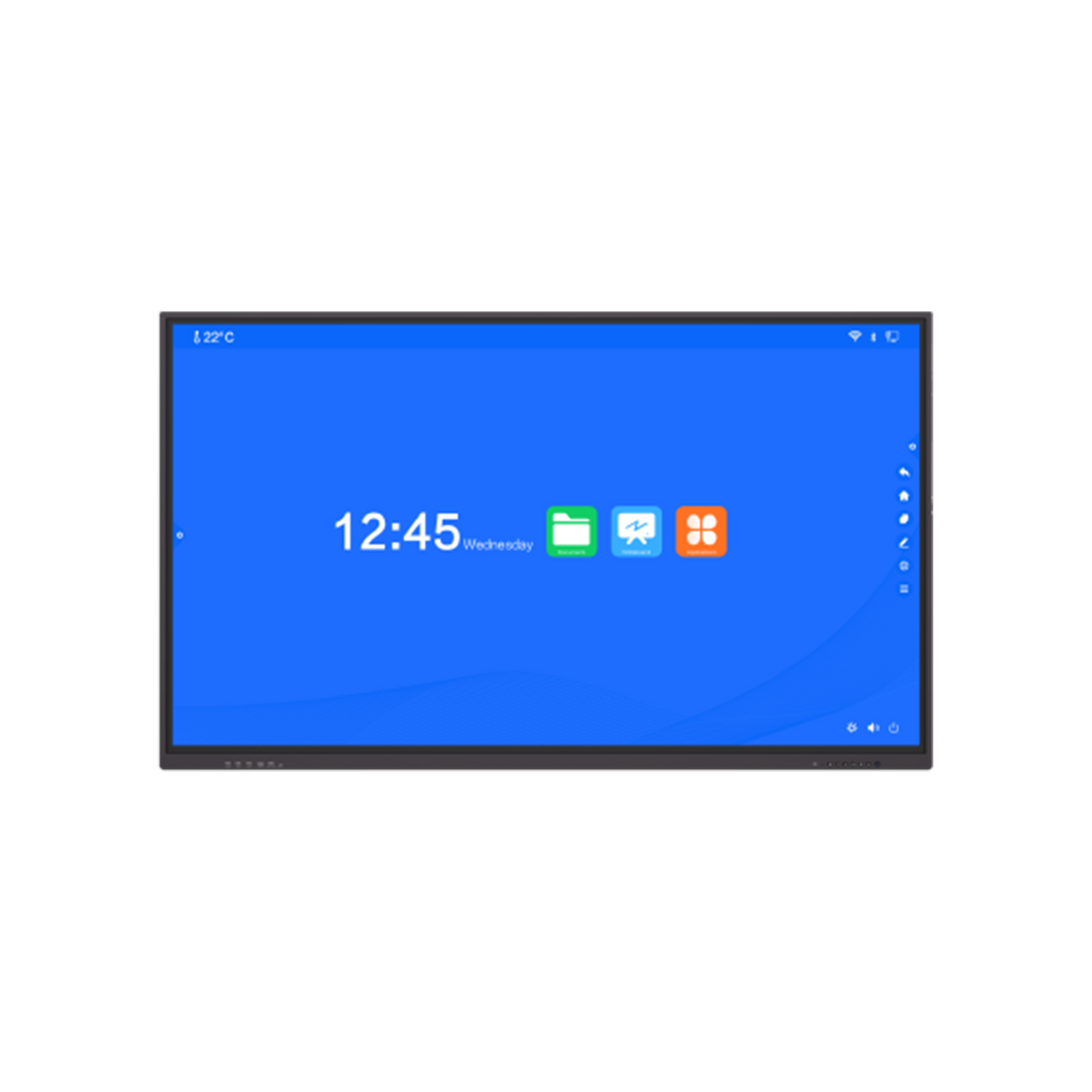

Dahua LPH86-MC410-B 86-inch 4K UHD Smart Interactive Whiteboard

In stock
SKU: LPH86-MC410-B
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

LPH86-MC410-B

> 4K UHD display that delivers a clear image in sharp, vivid colors.

> Android and Windows can be easily switched between (PC module is required for Windows OS).

> Wireless screen sharing from multiple devices, such as phones, computers, and tablets.

> Built-in office document and media files support.

> The startup apps and signal source are all customizable.

> Wireless and wired network connection.

> Supports optional external Camera.


Product Data

Built-in System

Operating System

Android 11

CPU

Quad-core A55

RAM

4 GB

ROM

32 GB

Function

Operating System of External Module

Windows 7/8/10; Android

WiFi

Dual-band 2.4 G/5 G

Wi-Fi Hotspot

Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time

LCD Panel

Panel Dimensions

86-inch

Backlight

DLED(Direct Light)

Aspect Ratio

16:9

Brightness

Resolution

Response Time

Viewing Angle

Lifespan

Refresh Rate

Static Contrast

Color Range

Panel Type

Eye Protection Mode

Auto Brightness

Device Ports

Front Ports

1 × USB 3.0 (Type A)

1 × Type C

1 × Touch USB

1 × HDMI in (HDMI2.0, Up to 3840×2160@30Hz)

Network Port

1

SPDIF

1

Earphone

1

MIC IN

1

AV IN

1

Ypbpr IN

1

VGA IN

1

VGA Audio IN

1

HDMI

2

RS232

1

Touch USB

1

Android USB 2.0

2

TF Card

1

Touchscreen

Touch Technology Type

Infrared touch technology

Response Time

<8 ms

Touch Points

20

Valid Touch

2 mm

Writing Mode

Finger + Pen

Touch Resolution

32767 × 32767

Speaker

Power

10 W × 2

Built-in Speaker

2

General

Power Supply

AC90V to AC264V

Power Consumption

450 W

Standby Power Consumption

0.5 W

Operating Temperature

0°C to +45 °C

Storage Temperature

–20 °C to +60 °C

Operating Humidity

10%–90%

Storage Humidity

10%–90%

Product Material

Metal casing

Glass

Anti-Smudge, Anti-dazzle and Anti-glare heat tempered glass, hardness of 7H on the Mohs scale

Glass Thickness

3mm

Casing Color (Frame/Rear)

Black

Product Dimensions

1958.5×1154×121mm (with bracket)

Packaging Dimensions

2060×1370×200mm

Net Weight

80±5kg

Gross Weight

93±5kg

VESA

Support

Packing List

Smart interactive whiteboard: × 1

Power cord: × 1

Stylus pen: × 3

Quick start guide: × 1

Wall mount bracket (already installed on the whiteboard) : × 1

Accessory package: × 1

Remote control: × 1

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Meeting rooms and classrooms that need an 86-inch 4K UHD interactive display with wireless screen sharing and Android 11 built in.

Before you orderConfirm whether a Windows PC module is required for your setup and verify current lead time before ordering.
01
Sharp 4K UHD Display

The 86-inch panel delivers clear images in sharp, vivid colors for presentations and collaborative sessions.

02
Android and Windows Switching

Switch easily between the built-in Android 11 system and a Windows environment when a PC module is installed.

03
Flexible Wireless Sharing

Share screens wirelessly from phones, computers, and tablets, with customizable startup apps and signal sources.
