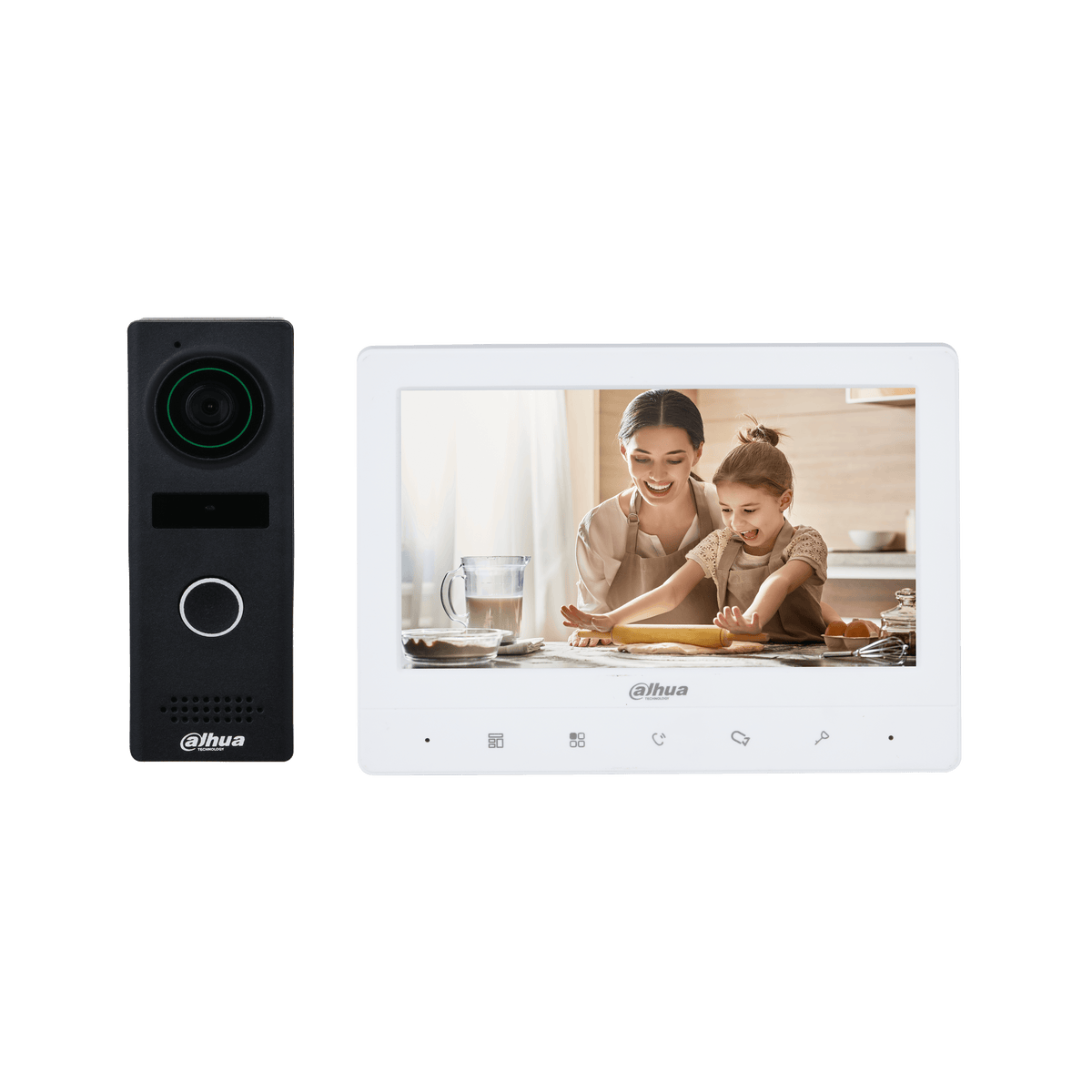

Dahua KTA02M 7" TFT Analog Video Intercom Kit with Door Station

In stock
SKU: KTA02M
$91.00
Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

KTA02M

Video Intercom KIT

> 7" TFT screen
> Video intercom function: Unlock, voice call, video call, volume adjustment, doorway monitoring
> System Capacity：2 door stations + 3 indoor monitors
> Multiple bell sounds
> Support digital wide dynamic range (DWDR)

DHI-VTH1020J

System

Button Type

Touch keypad

Basic

Display

7.0" TFT

Resolution

1024 × 600

Indicator Light

1 indicator light; Green: Power on

Function

Communication Method

Analog

Performance

Casing

PC + ABS

General

Color

White

Power Supply

DC 12V/1A

Power Adapter

Included

Installation

Surface mount

Certifications

CE/FCC

Accessory

Bracket (included)

Dimensions

133.90 mm × 182.70 mm × 17.70 mm (5.27" × 7.19" × 0.70")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH–95%RH

Power Consumption

≤ 2W (standby)
≤ 5W (working)

Net Weight

0.25 kg (0.55 lb)

Gross Weight

0.48 kg (1.05 lb)

DHI-VTO1000JM

System

Button Type

Mechanical

Basic

Camera

1/4" 1.3 MP CMOS

Field of View

Horizontal: 70°
Vertical: 40°

WDR

DWDR

Illuminator Type

Auto IR

Day/Night

ICR auto switch

Audio Input

1 channel to the microphone; pickup distance 0.5 m

Audio Output

1 channel to the speaker

Indicator Light

1 indicator light; Green: Power on

Function

Communication Method

Analog

Unlock Mode

Remote unlock

Performance

Casing

ADC12

Port

Unlock Button

1

Door Status Detection

1

General

Color

Black

Power Supply

Powered by indoor monitor

Installation

Surface mount

Certifications

CE/FCC

DHI-VTO1000JM

Accessory

Rain cover (included)

Dimensions

131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33")

Protection Grade

IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is
recommended. For details, see the quick start
guide.)

Operating Temperature

-30°C to +60°C (-22°F to +140°F)

Operating Humidity

10%RH–95%RH

Power Consumption

≤ 1W (standby)
≤ 3W (working)

Net Weight

0.18 kg (0.40 lb)

Gross Weight

0.40 kg (0.84 lb)

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Small residential or office entry points that need a 7-inch indoor monitor with door station for voice, video and remote unlock.

Before you orderConfirm the KTA02M kit contents, monitor quantity and door station count match your entry layout, and check current lead time with ICCTVZONE.
01
7-Inch TFT Display

The indoor monitor provides a 1024 x 600 touch-keypad screen so visitors can be seen and spoken to clearly.

02
Two-Way Intercom Control

Support unlock, voice call, video call, volume adjustment and doorway monitoring from the indoor unit for everyday entry management.

03
Expandable Analog System

The kit supports a system capacity of up to 2 door stations and 3 indoor monitors, allowing coverage to grow with the site.
