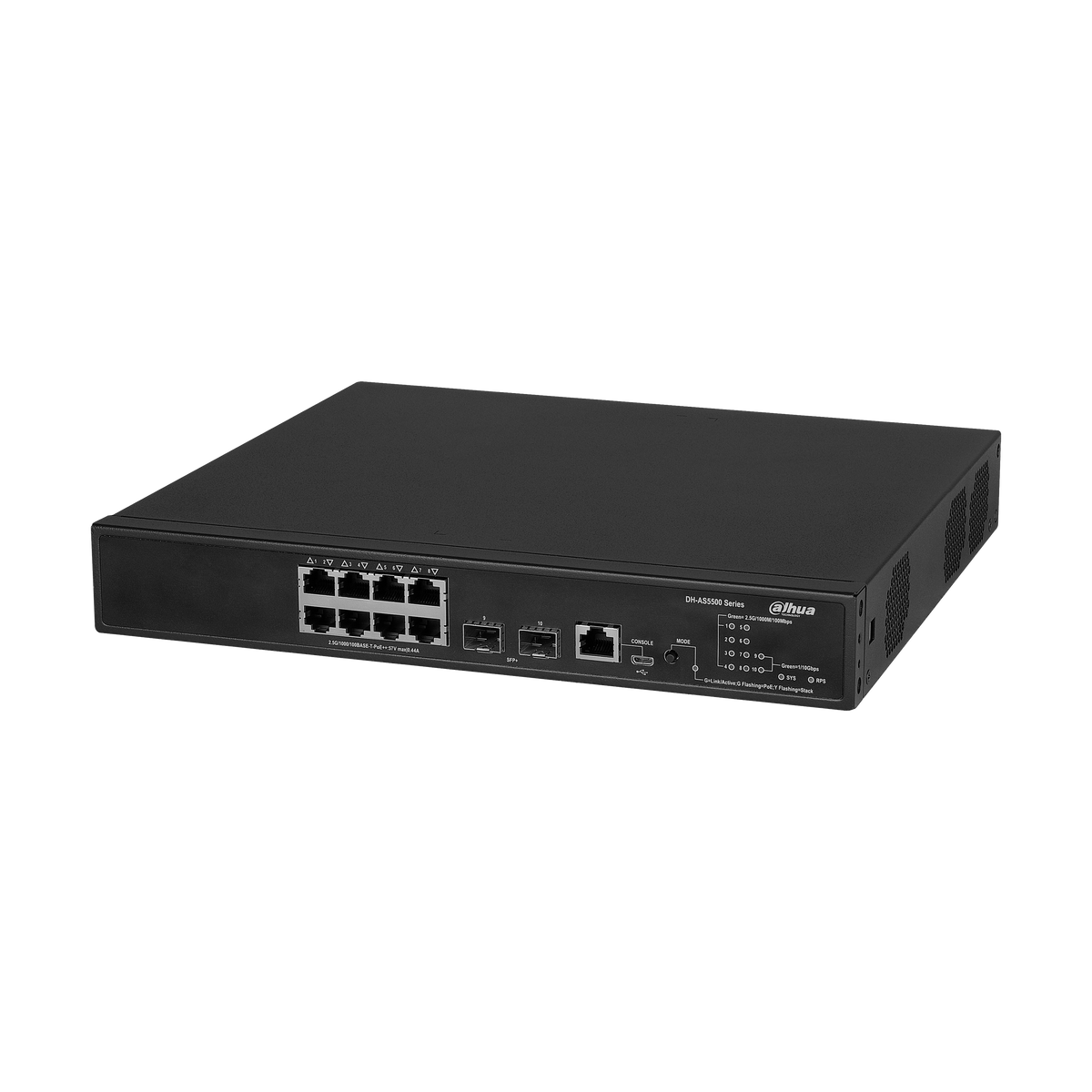

Dahua AS5500-8MGT2XF-370 L3 Managed 8-Port 10G Uplink Switch
This is a placeholder price. Please contact us for a quote.
Most orders ship within 30 working days. Stock status shown on this page is not real-time.
After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.
Working to a project deadline? Contact us before ordering.
Our team can confirm specifications, stock and pricing before you order.
Email sales@icctvzone.com or contact us.
Couldn't load pickup availability
Need help choosing the right model? I can confirm specifications, stock and lead time before you order.
AS5500-8MGT2XF-370
L3 Managed 8 10G Yes Switch
> 10 Gbps uplink and all-gigabit ports.
> Various routing chracteristics.
> IRF2 intelligent resilient architecture.
> Management through the web client and CLI.
> Supports functions such as port aggregation, Layer-2 VLAN, ACL, and QoS.
Product Data
|
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Speed |
100 Mbps;2.5 Gbps;1 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port Speed |
1/10 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Description of Function Slots |
Port 1-8: 8 × 1000/2500 Base-T (UPoE); |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Debugging |
1 × Console 1 × Micro USB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–5 °C to +45 °C (+23 °F to +113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Type |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MTBF |
52.27 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
128 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
95.232 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Size |
12 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Number |
4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IPv4 Routes |
1K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dynamic ARP |
1K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Features |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Spanning Tree Protocol |
STP/RSTP/MSTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Function |
Port-based VLAN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Link Aggregation |
Statc link aggregaton |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IEEE 802.3x Flow Control |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multicast |
IGMP Snooping v1/v2/v3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Reliability |
VRRP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ARP |
Dynamic ARP Inspecton |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Routing |
Static routing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DHCP Function |
DHCP Client |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Security |
HWTACACS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
QoS/ACL |
WRR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IPv6 |
ND |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Equipment Management |
CLI Configuration |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
300 mm × 260 mm × 43.6 mm (11.81" × 10.24" × 1.72") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
3.5 kg (7.7 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Order & Pricing Information for Surveillance Products
Please note the following important details when ordering surveillance products from ICCTVZONE:
- Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
- Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
- Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
- Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
- Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
- Shipping costs: Shipping is calculated separately and added to the order total.
- Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
- Genuine products: We supply genuine products from leading brands with current firmware.
- Technical support: Our engineers provide pre-sales and after-sales technical support.
- Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.
Questions? Contact sales@icctvzone.com.
Product Features
What this model is for, what it does well, and what to confirm before it goes on a project.
Layer 3 aggregation and uplink switching for multi-camera surveillance networks that need managed VLAN, routing and link aggregation control.
Web client and CLI management plus routing and VLAN functions give your surveillance network structured, reliable traffic control.
Two 1G/10G optical uplinks pair with eight gigabit ports to support high-bandwidth camera aggregation and backbone connections.
IRF2, link aggregation and spanning tree support help keep video streams flowing if a link or device fails.
