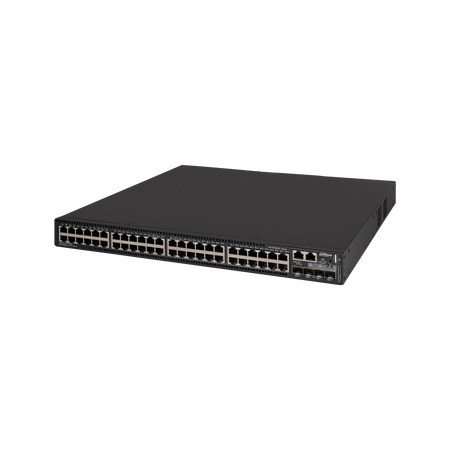

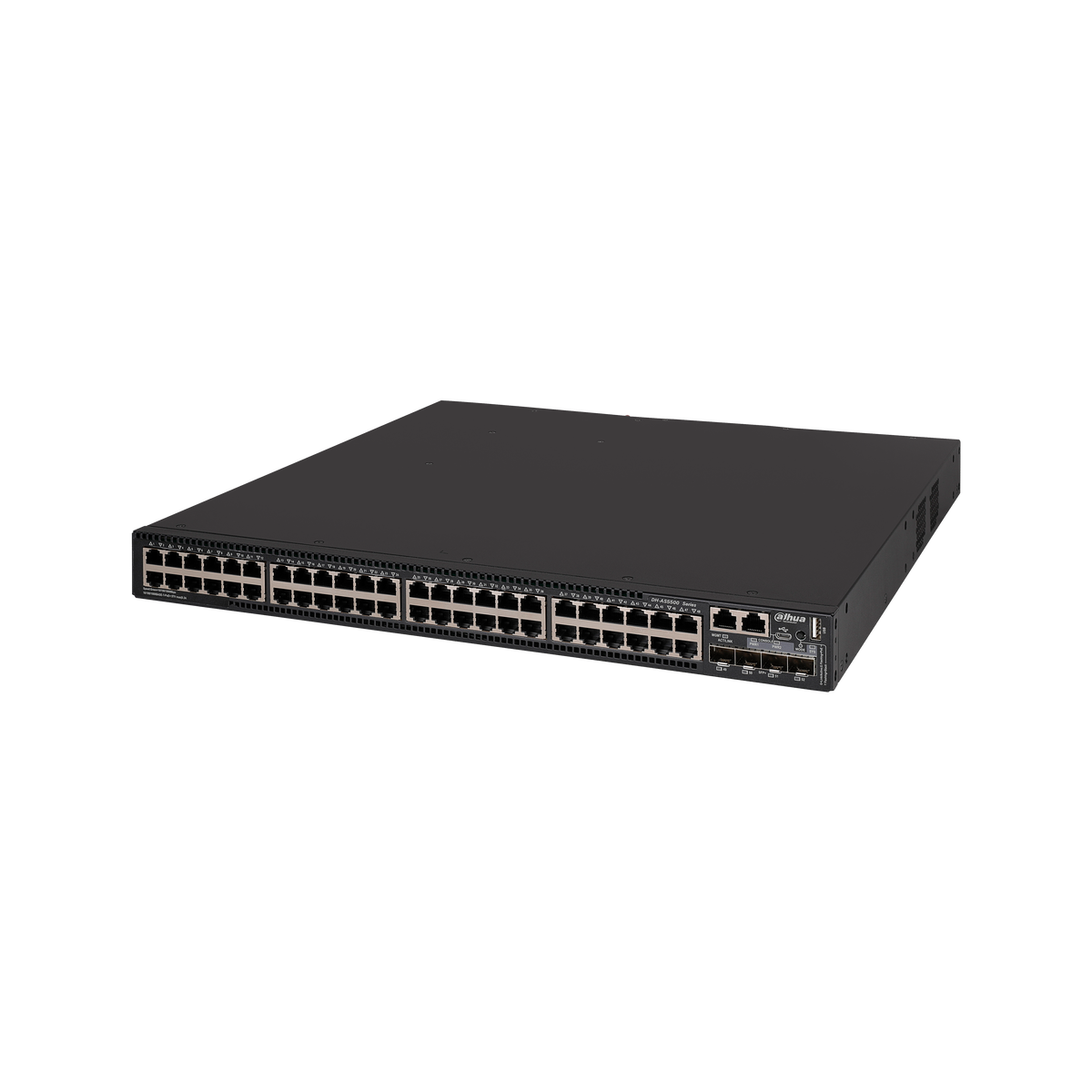

Dahua AS5500-48GT4XF-600 48-Port Gigabit PoE L3 Managed Switch

In stock

SKU: AS5500-48GT4XF-600

$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.

Product variants

Authentic productsGenuine brands, traceable supply

Worldwide shippingTracked delivery to 200+ countries

Technical supportPre-sales and after-sales help

Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email me Contact us

AS5500-48GT4XF-600

> Powerful L2 and L3 Features

> Enterprise-level Connectivity

> Intelligent Resilient Framework 2 (IRF2)

Product Data

Hardware

Included Power Adapter

No

PoE

Yes

Ethernet Port

48 × RJ-45 10/100/1000 Mbps

Optical Port

4 × SFP+ 1/10 Gbps

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1/10 Gbps

Description of Function Slots

Port 1-48: 48 × RJ-45 10/100/1000 Mbps;

Port 49-52: 4 × SFP+ 1/10 Gbps

Management port

1 × Micro-USB port
1 × Console port
1 × MGT port
1 × USB port

Hot Plug

Yes

Power Supply

Built-in dual power supplies: 100–240 VAC, 50/60 Hz, 6 A

Operating Temperature

–5 °C to +45 °C (+23 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Fanless Design

No

Power Consumption

Idling: 37 W Full load: 354 W (Single Power)

Idling: 37 W Full load: 685 W (Dual Power)

Performance

Layer

L3

Management Type

Yes

MTBF

50.24 years

Switching Capacity

176 Gbps

Packet Forwarding Rate

130.952 Mpps

Packet Buffer Size

24 Mbit

Jumbo Frame

10K Byte

MAC Table Size

16K

VLAN Number

4K

VLAN Interface

512

IPv4 Routes

1K

Dynamic ARP

1K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae

PoE

PoE Protocol

IEEE 802.3af; IEEE 802.3at

PoE Power

Port 1-48 ≤ 30 W, total power ≤ 600 W

PoE Power Consumption Management

Power consumption management; power on and power off; power down for overload; green PoE

PoE Pin Assignment

1, 2 (V+), 3, 6 (V-)

Features

Ring Network Protocol

STP/RSTP/MSTP
PVST
RRPP
ERPS

Routing

Static routing
IPV6 policied routing
RIPv1/v2/ng
OSPFv2/v3
Policy based routing

VLAN Function

Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
Subnet-based VLAN
QinQ, flexible QinQ
VLAN Mapping
Voice VLAN
MVRP

Link Aggregation

Static link aggregation
Dynamic link aggregation
Cross-device link aggregation
Gigabit Ethernet port aggregation
10 Gigabit Ethernet port aggregation

IEEE 802.3x Flow Control

Yes

Multicast

IGMP Snooping v1/v2/v3
PIM Snooping
Multicast VLAN
IGMP v1/v2/v3

Reliability

IRF; VRRP; DLDP; LLDP; VCT

ARP

ARP source suppression
Dynamic ARP source detection
ARP anti-attack
ARP detection
ARP rate limit

DHCP Function

DHCP Client
DHCP Snooping
DHCP Relay
DHCP Server
DHCP Snooping option 82
DHCP Relay option 82
DHCP Snooping Trust
DHCP Snooping entry backup

Security

Multi-level user management and password protection
802.1X
RADIUS
SSH 2.0
Port isolation
HWTACACS
IP/Port/MAC binding
IP Source Guard
HTTPS
Triple

QoS/ACL

802.1p/DSCP priority tag
Packet filtering
SP/WRR/SP+WRR queue scheduling
Port-based rate limit
Traffic-based redirection
Time range

IPv6

ICMPv6
Traceroute v6
Telnet v6
SSH2 v6
ND/ND snooping/ND proxy/ND detection
SAVI
IPv6 Portal
DNS Client for IPv6
SNMP for IPv6
RIPNG and OSPFv3
IPv6 policy routing
MLD Snooping v1/v2
VRRP V3
DHCPv6 snooping/DHCPv6 client/DHCPv6 relay/DHCPv6 server
IPv6 port binding

Equipment Management

Load update files and update using Xmodem/FTP/TFTP
Configure through CLI, Telnet, and Console port
SNMPv1/v2/v3
Web network management
RMON alarm, RMON event, and RMON history
System logs, multi-level alarms, and debug information
HGMPv2
NTP
Ping and Tracert
VCT
DLDP
Port loopback detection
Power supply, fan, and temperature alarms
BFD

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 1 kV
Differential mode: 0.5 kV

Net Weight

≤ 9.5 kg (20.93 lb)

Product Dimensions

440 mm × 460 mm × 43.6 mm
(17.32" × 18.11" × 1.72") (L × W × H)

Packaging Dimensions

608 mm × 576 mm × 180 mm
(23.94" × 22.68" × 7.09") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; rack mount

Certifications

CE; FCC

Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Powering and uplinking large IP camera and access-point deployments that need 48 gigabit PoE ports, 4 SFP+ 1/10G uplinks and L3 management in one rack switch.

Before you orderConfirm your total PoE load stays within the 600 W budget and that your SFP+ uplink modules and rack depth match this switch before ordering.

01

48 Gigabit PoE Ports

Delivers data and power to up to 48 PoE devices over RJ-45, simplifying cabling across dense camera installations.

02

4 SFP+ Uplinks

Four 1/10 Gbps SFP+ ports provide fast fiber or copper uplinks to core switches and network backbones.

03

L3 Managed Control

Layer 3 management, 4K VLANs and IRF2 support help segment and scale a growing surveillance network.
