Home » Dahua AS4300-8GT2GF 8-Port Gigabit L2+ Managed Switch with 2 SFP
DAHUA AS4300-8GT2GF
DAHUA AS4300-8GT2GF
icctvzone

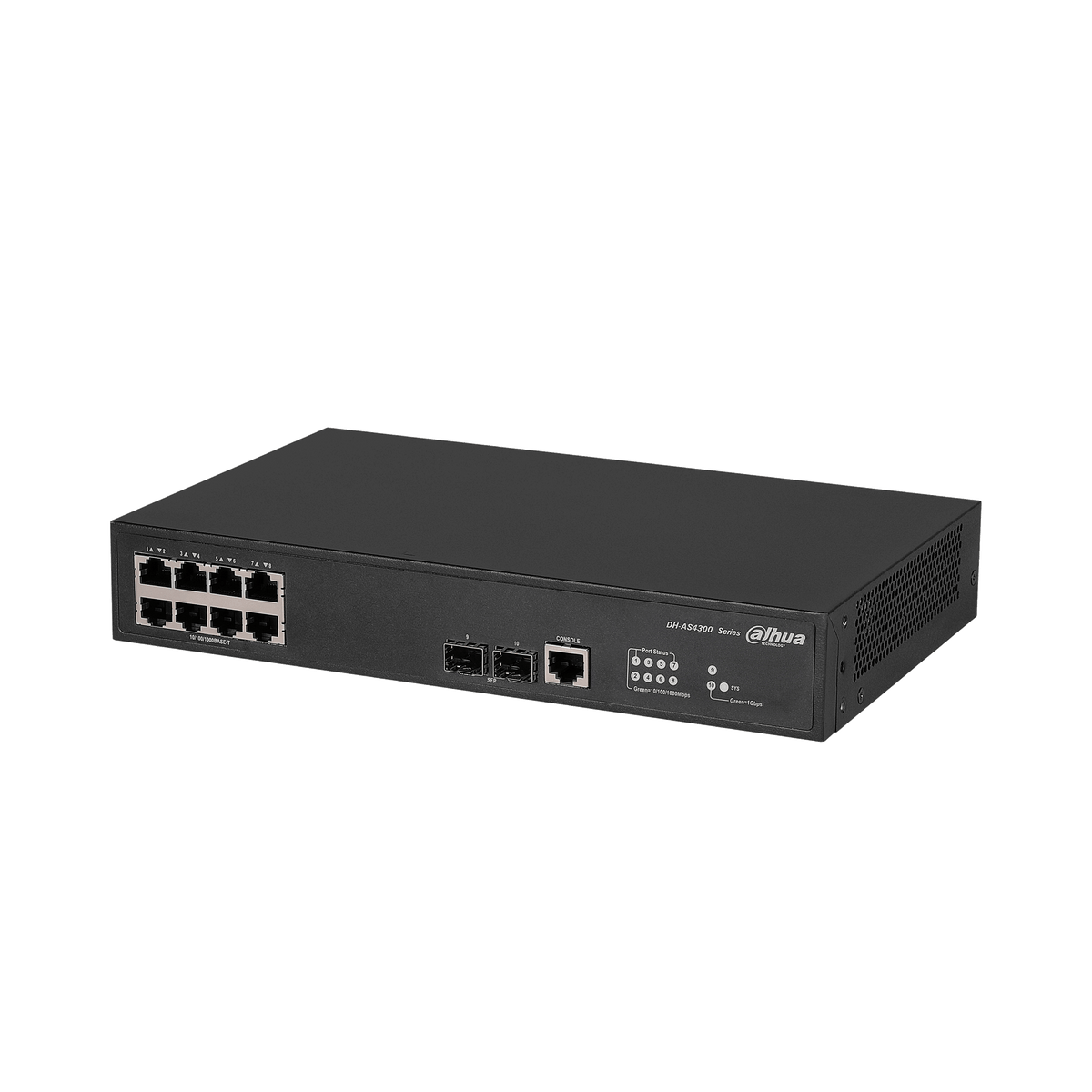

Dahua AS4300-8GT2GF 8-Port Gigabit L2+ Managed Switch with 2 SFP

In stock
SKU: AS4300-8GT2GF
$1,000,000.00

This is a placeholder price. Please contact us for a quote.

Lead time & order confirmation

Most orders ship within 30 working days. Stock status shown on this page is not real-time.

After you place your order, please check the order confirmation email from our team. We will confirm stock, lead time and shipping before dispatch. If an item is out of stock, we may propose a compatible replacement model for your approval.

Working to a project deadline? Contact us before ordering.

Need help with this product?

Our team can confirm specifications, stock and pricing before you order.

Email sales@icctvzone.com or contact us.
Authentic productsGenuine brands, traceable supply
Worldwide shippingTracked delivery to 200+ countries
Technical supportPre-sales and after-sales help
Daniel Levent
Daniel LeventSenior Engineer SalesOnline now

Need help choosing the right model? I can confirm specifications, stock and lead time before you order.

Email meContact us

AS4300-8GT2GF

> Powerful L2 and L2+ Features.

> Green and Fan-less Design.

> Intelligent Resilient Framework 2 (IRF2).



Product Data

Hardware

Included Power Adapter

Yes

PoE

No

Ethernet Port

8 × RJ-45 10/100/1000 Mbps

Optical Port

2 × SFP 100 Mbps/1 Gbps

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Uplink Speed

100 Mbps/1 Gbps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100/1000 Mbps;

Port 9-10: 2 × SFP 100 Mbps/1 Gbps

Management port

1 × Console port

Power Supply

100-240 VAC; 50/60 Hz; 0.45 A

Operating Temperature

–5 °C to +45 °C (+23 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Fanless Design

Yes

Power Consumption

Idling: 7 W

Full load: 12 W

Performance

Layer

L2+

Management Type

Yes

MTBF

168.61 years

Switching Capacity

20 Gbps

Packet Forwarding Rate

15 Mpps

Packet Buffer Size

12 Mbit

Jumbo Frame

10K Byte

MAC Table Size

16K

VLAN Number

4K

IPv4 Routes

1K

Dynamic ARP

1K

Communication Standard

802.3x; 802.3ad; 802.1p; 802.1q; 802.1x; 802.1d; 802.1w; 802.1s

Features

Ring Network Protocol

STP/RSTP/MSTP
PVST
RRPP

Routing

Static routing
IPV6 unitcast routing

VLAN Function

Port-based VLANMAC-based VLANProtocol-based VLANSubnet-based VLANQinQ, flexible QinQVLAN MappingVoice VLAN

Link Aggregation

Static link aggregation
Dynamic link aggregation
Cross-device link aggregation
Gigabit Ethernet port aggregation

IEEE 802.3x Flow Control

Yes

Multicast

IGMP Snooping
PIM Snooping
IGMP v1/v2/v3

Reliability

DLDP LLDP

ARP

ARP, Gratuitous ARP
Dynamic ARP Inspection
ARP anti-attack
ARP source suppression
ARP Detection

DHCP Function

DHCP Client
DHCP Snooping
DHCP Relay
DHCP Server
DHCP Snooping option 82
DHCP Relay option 82

Security

802.1X, centralized MAC address authentication
Guest VLAN
SSH 2.0
Port isolation
Port security
DHCP Snooping, preventing DHCP spoofing
Dynamic ARP detection, preventing man-in-the-middle attack and ARP denial-of-service
IP/Port/MAC binding

QoS/ACL

Packet filtering (Layer 2 to Layer 4)
Source MAC-, destination MAC-, Source IP (IPv4/IPv6)-, destination IP (IPv4/IPv6)-, TCP/UDP port number-, VLAN-based traffic classification
Time-based ACL
Two-way ACL policy (ingress and egress)
VLAN-based ACL application

IPv6

ND
IPv6-Ping
IPv6-Tracert
IPv6-Telnet

Equipment Management

Load update files and update using FTP
Configure through CLI, Telnet, and Console port
SNMPv1/v2/v3
NTP
Ping and Tracert
LLDP
Port loopback detection

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 1 kV
Differential mode: 0.5 kV

Net Weight

1.7 kg (3.75 lb)

Gross Weight

2.2 kg (4.85 lb)

Product Dimensions

266 mm × 161 mm × 43.6 mm
(10.47" × 6.34" × 1.72") (L × W × H)

Packaging Dimensions

370 mm × 280 mm × 86 mm

(14.57" × 11.02" × 3.39") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; rack mount

Certifications

CE; FCC

Order & Pricing Information for Surveillance Products

Please note the following important details when ordering surveillance products from ICCTVZONE:

  • Order confirmation: After you place an order, please check the confirmation email from our team. We will confirm stock, lead time and shipping before dispatch.
  • Stock & replacements: Inventory status is not real-time. If an item is out of stock, we may propose a compatible replacement model for your approval.
  • Final pricing: Prices shown are indicative. The final price is confirmed on the Proforma Invoice (PI) after order confirmation.
  • Project-specific pricing: Some products are configured for project requirements; pricing may vary with quantity and specification.
  • Minimum order: A minimum order value may apply to non-stock or project items; our team will confirm before processing.
  • Shipping costs: Shipping is calculated separately and added to the order total.
  • Duties & taxes: Import duties, taxes and customs clearance fees are not included in the product price or shipping quote. These charges are the customer's responsibility.
  • Genuine products: We supply genuine products from leading brands with current firmware.
  • Technical support: Our engineers provide pre-sales and after-sales technical support.
  • Warranty: Warranty terms depend on the product and order type; we will confirm the applicable coverage in writing.

Questions? Contact sales@icctvzone.com.
Why this model

Product Features

What this model is for, what it does well, and what to confirm before it goes on a project.

Best for

Small to mid-size IP camera networks that need a fanless managed Gigabit switch with SFP uplinks for uplink or fiber runs.

Before you orderConfirm your camera count fits the eight RJ-45 ports, check that your uplink module matches the 100 Mbps/1 Gbps SFP slots, and verify current lead time before ordering.
01
Fanless Silent Operation

A fanless metal design keeps the switch quiet and reduces moving parts, making it suitable for offices and equipment cabinets near work areas.

02
Managed L2+ Control

Layer 2+ management with VLAN, link aggregation, ring protocols and static routing gives you structured control over camera traffic and network segments.

03
Gigabit with SFP Uplinks

Eight 10/100/1000 Mbps RJ-45 ports plus two SFP slots at 100 Mbps or 1 Gbps support flexible copper and fiber uplink options for growing deployments.
